Leakage current sensors

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth(kHz)	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
TR1V 0.01 H00	10mA	15mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.01 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current Sensors: Types, Key Parameters, Performance Comparison, and Common Applications Current sensors are critical components in a wide range of electrical and electronic systems, ensuring that equipment and gadgets operate safely and efficiently. We will examine current sensors in this article, including their kinds, variables to consider when choosing a current sensor, performance comparison, and applications. more... Products Data Sheet
TR1V 0.02 H00	20mA	30mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.02 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Fast Response time high frequency AC current monitoring sensor supply voltage ±12V ±15V, primary nominal rms current 10mA 20mA 50mA 100mA 200mA more... Products Data Sheet
TR1V 0.05 H00	50mA	75mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.05 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Low current consumption through hole hall current sensor supply voltage ±12V ±15V, rated output voltage 5V for Industrial control more... Products Data Sheet
TR1V 0.1 H00	100mA	150mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.1 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Used to detect leakage current or residual current in electrical systems. It converts tiny currents into measurable signals through electromagnetic induction or magnetic modulation principles, enabling electrical safety monitoring. more... Products Data Sheet
TR1V 0.2 H00	200mA	250mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.2 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 An energy and leakage current monitoring current sensor for abnormality detection in electrical appliances more... Products Data Sheet

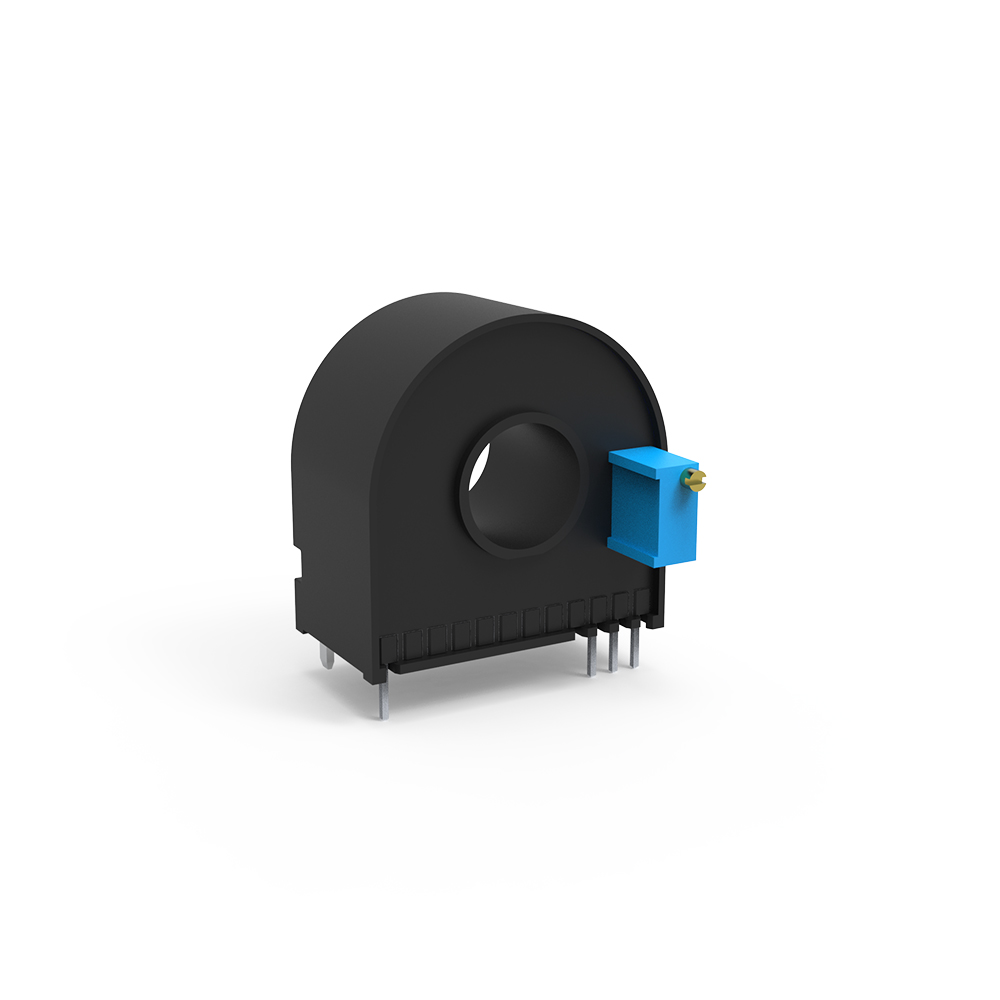

TR3V 0.005 P01	5mA	8mA	±12...15V	3.3V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.005 P01 AC current sensor based on transformer technology DC voltage output 3.3V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.005 P02	5mA	8mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.005 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.01 P01	10mA	15mA	±12...15V	3.3V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.01 P01 AC current sensor based on transformer technology DC voltage output 3.3V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.01 P02	10mA	15mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.01 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.05 P01	50mA	75mA	±12...15	3.3V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.05 P01 AC current sensor based on transformer technology DC voltage output 3.3V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.05 P02	50mA	80mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.05 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.20 P02	200mA	250mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.20 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
