Featured Product

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
HK5V 600 H20	±600	±900	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 600 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 more... Products Data Sheet
HK5V 800 H20	±800	±1200	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 800 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 more... Products Data Sheet
HK5V 200 H20	±200	±300	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 200 H20 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 more... Products Data Sheet
HK5V 400 H20	±400	±600	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 400 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 more... Products Data Sheet
HK4V 5000 H00	5000	±6000	±15	5V	±1.0	DC...40	-40~85	112mm x 30mm		2EDG-4P-3.81
HK4V 5000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK4V 2000 H00	2000	±4000	±15	4V	±1.0	DC...40	-40~85	112mm x 30mm		2EDG-4P-3.81
HK4V 2000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK4V 3000 H00	3000	±5500	±15	4V	±1.0	DC...40	-40~85	112mm×30mm		2EDG-4P-3.81
HK4V 3000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN1A 25 PB00	25	±36	±15	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial Hall effect current sensors for UPS more... Products Data Sheet
CN2A 40 PB01	40	±110	±12...15	±20mA	±0.5	200	-40~85	NA	+
CN2A 40 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020  IEC 61800-5-1:2022  IEC 62109-1:2010 Premium Made in China dc hall effect current tranducer more... Products Data Sheet
CS3A 50 P01	50	±90	±12...15	±50...90mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 50 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High quality good linearity ±0.05% PCB mount type Hall current sensor more... Products Data Sheet
CS3A 50 P51	50	±90	±12...15	±50...90mA	±0.3	150	-20~75	13.5 x 10 mm	+
CS3A 50 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed loop Hall effect AC/DC current sensor Output 30+IsmA AC/DC, power supply±12 V ~ ±15 V DC, primary busbar13.5x10.0mm more... Products Data Sheet
CN2A 50 PB01	50	±110	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 50 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measurement:Current Nominal Value:50A Measuring Range:110A Supply voltage range:12-15V Accuracy:0.5% Technology:Closed loop Hall effect Mounting:PCB In the field of industrial applications, power electronic devices are essential for driving and control. As electrical systems become more complex, the requirements for precise coordination among power semiconductors, system controllers, mechanical components, and feedback units increase. Sensors can then obtain the necessary information from the load and provide it to the system to achieve this function more... Products Data Sheet
CN2A 80 PB01	80	±160	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 80 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed-loop current sensors perform exceptionally well in applications requiring high-precision measurement, wide bandwidth and fast response times, and are suitable for industries such as manufacturing, energy and rail transit. more... Products Data Sheet
CN2A 100 PB01	100	±160	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 100 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 A Hall current sensor measures electrical current indirectly by detecting the magnetic field it generates, using the Hall effect: current flows through a conductor (often a lead frame), creating a proportional magnetic field that a Hall element senses and converts into an isolated voltage output, providing non-intrusive measurement ideal for high currents and electrical isolation in applications like electric vehicles and industrial machines. more... Products Data Sheet

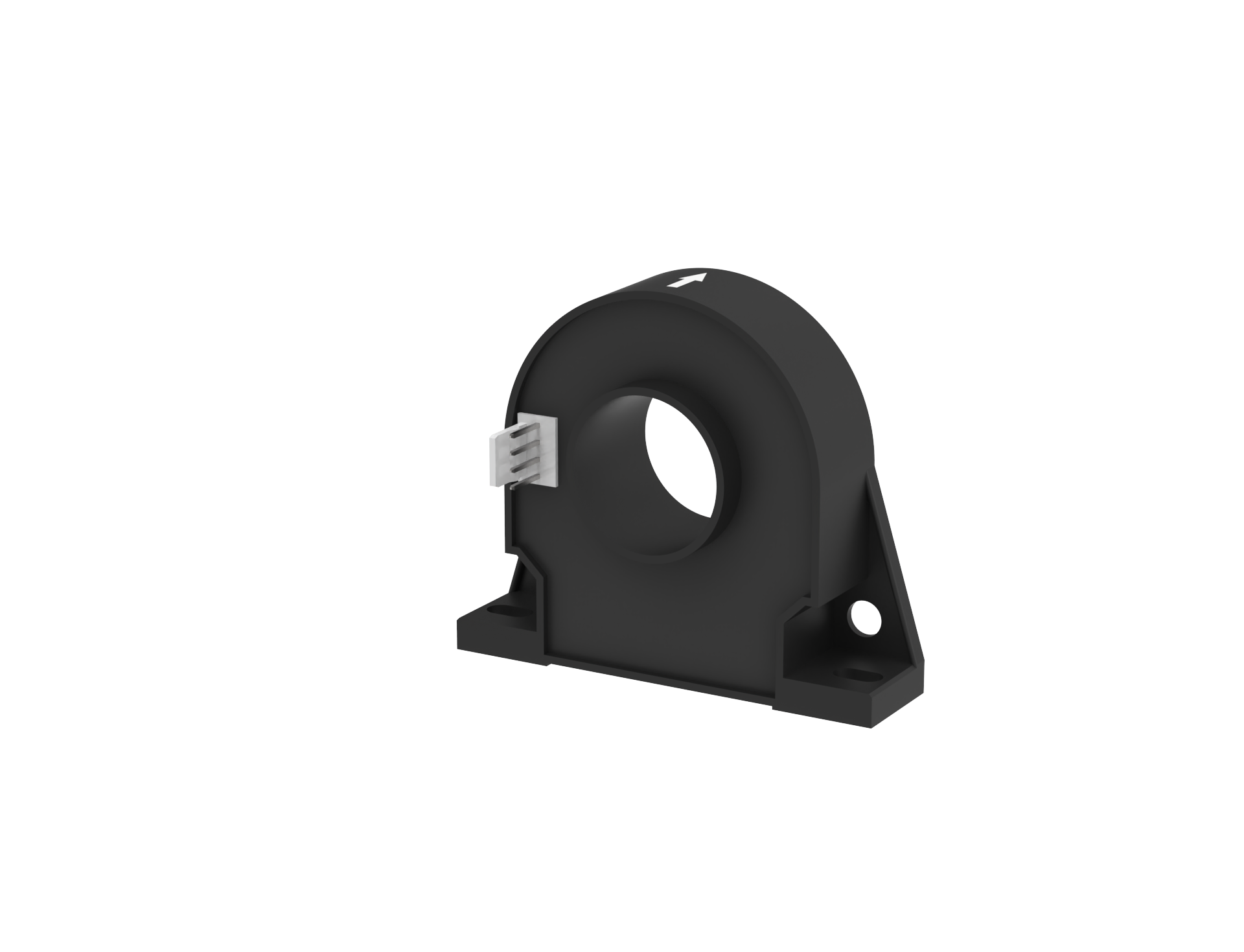

CR1A 100 H00	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 100 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 High Accurate Hall Effect AC/DC Current Sensor Output: 50 mA - 250 mA AC/DC, Power Supply: ±12 V ~ ±15 V DC, Window: Ø 23 mm, Connector: Screw Hall effect current sensors are mainly used in industrial automation, telecommunications, public utilities, as well as in medical, aerospace, defense, consumer electronics, automotive, and railway industries for current monitoring, overcurrent fault detection, and power measurement. It features no insertion loss, low power consumption, compact package size, single/dual power supply, high precision, high sensitivity, electrical isolation and fast response time. more... Products Data Sheet
CR1A 100 H01	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 100 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Supply voltage ±12V ±15V JK126-500-3P connection more... Products Data Sheet
CS3A 100 P00	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy ±0.3% hall effect current tranducer primary busbar 13.5x10.0mm based on PCB mount type more... Products Data Sheet
CS3A 100 P01	100	±160	±12...15	±100...160mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 100 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High sensitivity, supply voltage ±12V ±15V best current sensor modules for hobbyist electronics projects more... Products Data Sheet
CS3A 125 P00	125	±200	±12...15	±125...200mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 125 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High bandwidth current sensor and low offset drift over temperature with Linearity ±0.05% Accuracy ±0.3 PCB installation hole Φ1.0mm more... Products Data Sheet
CR1A 200 H00	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Magnetic Current sensors Suppliers Standard measured values: 200A Accuracy: 0.5% Measuring Range: 70A-500A Supply Voltage: 12 - 15V Secondary Signal : 100 mA more... Products Data Sheet
CR1A 200 H01	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 200 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 200A hall effect analog current sensor very good linearity for measurements High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM1A 200 H00	200	±420	±12...15	±100...210mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Professional Frequency Broadband 200kHz Response time 0.5µs High-Frequency Transducers Primary hole Φ23.0mm Connection of secondary MOLEX 5045-04A more... Products Data Sheet
CR1A 300 H00	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 300 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low Voltage Converter Low Current consumption High Accuracy Wide Input Output Range 100A-300A Current Transducer Primary hole Φ23.0mm Connection of secondary JK126-500-3P more... Products Data Sheet
CR1A 300 H01	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 300 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High Accurate Hall Effect AC/DC through-hole type Current Sensor, Output: ±150 mA AC/DC, Power Supply: ±12 V ~ ±15 V DC, Window: Ø23 mm, Connector: Molex 5045-04A more... Products Data Sheet
CR1A 300 H02	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 300 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect sensors analog circuit design measure Current Using Current Sensors more... Products Data Sheet
CM2A 300 H00	300	±500	±12...20	±150...250mA	±0.3	100	-40~85	Ø20		Molex 6410
CM2A 300 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall Effect Current transducer supply voltage ±12 ±20V Input 300A ct Current Transformer dc Current Sensor more... Products Data Sheet
CR2A 400 H00	400	±600	±15...24	±100...150mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 400 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010Measuring Range 300A-500A Current Transducer Supplier Current Sensor Low Voltage ±15V ±24V,Response Time 0.5µs Ø35 mm more... Products Data Sheet
CR2A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 500 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Low Voltage High Accuracy Current Measurement Device 500A Closed-loop Current Sensors Connection Method JK126-500-3P more... Products Data Sheet
CM3A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		Molex 6410
CM3A 500 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measures direct current flow, typically using the Hall effect (detecting magnetic fields) or a shunt resistor providing isolated, accurate readings for applications like renewable energy, electric vehicles, and power monitoring more... Products Data Sheet
CM3A 500 H01	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		JST B3P VH
CM3A 500 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall Current Measurement Device 500A Low Current Consumption Ambient Operating Temperature -40℃~85℃ Connection of Secondary JST B3P VH more... Products Data Sheet
CM4A 1000 H00	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current Transducers Supplier high Voltage Measuring Range 1000A Closed-loop Current Sensors Primary Hole Φ38mm Comprehensive monitoring and control of the rail transit system have been achieved, providing data support for the application of intelligent driving. more... Products Data Sheet
CM4A 1000 H03	1200	±1800	±24	±300...450mA	±0.4	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H03 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High Accuracy Wide Applications Fileds Closed-loop Hall Effect Current Sensor 1000A Supply Voltage ±24 Fast Response Time 0.5 µs Monitor the health condition of the track and detect cracks, wear and deformation more... Products Data Sheet
CM4A 1000 H05	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H05 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Professional High-Frequency Transducer Supplier Supply Voltage ±15V ±24V High Linearity ±0.1 Good Accuracy ±0.3 Primary Though Hole Φ38mm Improve the operational efficiency, safety and maintainability of the rail transit system more... Products Data Sheet
HK1A 200 H00	200	±240	12	4...20mA	±1.0	DC	-25~85	Ø41.3		2EDGV-3.81-4P
HK1A 200 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM5A 2000 H20	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		JST B3P VH
CM5A 2000 H20 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall Effect DC Current Measurement Device Current Transducer, 2000A input, 400 output,±15 ±24VDC supply, 57.5mm Aperture Up To 0.3% Accuracy Reliable more... Products Data Sheet
HS1V 50 H00	50	±150	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 50 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial Current Transducer products with high accuracy, linearity & stability, and low temperature drift and zero drift features Providing services to our customers with the top performance and effective cost. more... Products Data Sheet
HS1V 50 H05	50	±150	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 50 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Ipn 50A, 100A, 200A, 300A, 400A, 500A, 600A Measure range about 4*ipn Working voltage(supply voltage of the sensor): DC ±12V or ±15V Output: ±4V Linearity: class 0.5 (±0.5%) Accuracy: class1 (±1%) Square perforation, mainly measure copper conductor current. Advantage: Non-contact measuring way, excellent accuracy, low power consumption, good current overload capability, easy use, high reliability and long term usage with your system. We can customize different sensor according to the users requirements. more... Products Data Sheet
HR1V 50 H01	50	±100	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 50 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 DC Current Transducer Hall Effect adopts the hall effect to measure the AC and DC current of the power grid in real time. Using precision constant current technology and linear temperature compensation technology, DC Current Transducer Hall Effect is converted to standard current output, and the characteristics of DC current general-purpose, strong overload capacity and high isolation. more... Products Data Sheet
HS1V 100 H05	100	±300	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 100 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors are essential components in various electrical and electronic systems, detecting and measuring electric current. Sensors play a crucial role in monitoring, control, and protection of electrical equipment more... Products Data Sheet
HR1V 100 H01	100	±200	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 100 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensors rely on open-loop Hall effect technology. The sensors are designed and manufactured for use in a variety of industrial applications. more... Products Data Sheet
HR1M 100 H00	100	±600	20...50	4...20mA	±1	20~6000	-40~85	Ø35.0		WJ2EDGVC-5.08-4P-14
HR1M 100 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards:IEC 61010-1: 2000,UL 508: 2010 AC/DC measuring range 100A-500A current sensor true rms output 4-20mA and primary hole Φ35mm high accuracy Long life for wide applications more... Products Data Sheet
HS1V 200 H00	200	±600	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 200 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Factory Sale Open loop Capacitive Sensor for the electronic measurement of current supply voltage ± 12V ± 15V and 50kHz Molex 5045-04A Connection more... Products Data Sheet
HS1V 200 H05	200	±600	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 200 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Square perforation, mainly measure copper conductor current. Easy mounting Low power consumption One design for a wide range of current ratings High immunity to external interference more... Products Data Sheet
HS2V 200 H05	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 200 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Easy mounting Low power consumption One design for a wide range of current ratings High immunity to external interference Tailored for various industrial scenarios, enhancing system integration and measurement reliability. more... Products Data Sheet
HR1V 200 H01	200	±400	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current transducers are devices that convert electrical current into a measurable signal, commonly used in various applications for monitoring and control. more... Products Data Sheet
HR1M 200 H00	200	±600	20...50	4...20mA	±1	20~6000	-40~85	Ø35.0		WJ2EDGVC-5.08-4P-14
HR1M 200 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards:IEC 61010-1: 2000,UL 508: 2010 Hall Effect Sensors utilize the Hall effect principle, where a voltage is induced across a conductor placed in a magnetic field. Hall effect sensors can measure both AC and DC currents and are known for their high accuracy and fast response times, making them suitable for applications like motor control and power electronics more... Products Data Sheet
HS1V 300 H00	300	±900	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 300 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Battery management: Supply voltage ±12V ±15V Primary hole 20.4 mm×10.4mm , measures electrical current (AC or DC) by detecting the magnetic field it generates, using the Hall effect principle more... Products Data Sheet
HS1V 300 H05	300	±900	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 300 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Construction and working of hall effect current sensor ,providing non-contact, isolated measurement with a voltage output proportional to the current, common in EVs, inverters, and industrial controls for safety and accuracy more... Products Data Sheet
HR1V 300 H01	300	±600	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 300 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Directly measures the magnetic field with the Hall sensor and amplifies the voltage Offering higher accuracy and dynamic range more... Products Data Sheet
HR1M 300 H00	300	±1000	20...50	4...20mA	+1	20~6000	-40~85	Ø35.0		WJ2EDGVC-5.08-4P-14
HR1M 300 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards:IEC 61010-1: 2000,UL 508: 2010 How to choose a current sensor? current sensor for Charging Piles more... Products Data Sheet
HS1V 400 H00	400	±900	±12...15	±4V	+1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 400 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Direct Factory Hall Effect Current Sensor Open Loop Series for Current Detection for Power Supplies for Welding Applications -40℃~105℃ Supply volyage ± 12V ± 15V more... Products Data Sheet
HR1V 400 H01	400	±800	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 400 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 New and Original Customizable 50A 100A 200A 300A 400A 500A Hall Open Loop Current Sensor 400A Ambient Operating Temperature -40℃~85℃ more... Products Data Sheet
HR1M 400 H00	400	±1000	20...50	4...20mA	+1	20~6000	-40~85	Ø35.0		WJ2EDGVC-5.08-4P-14
HR1M 400 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards: IEC 61010-1: 2000 UL 508: 2010 For Charging Piles Hall Effect Current Sensors Primary hole:Φ35mm True rms output is 4-20mA Supply Voltage 24V more... Products Data Sheet
HS2V 500 H05	500	±1500A	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 500 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HR1V 500 H01	500	±900	±12...15	±5V	+1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 What is Hall Effect Sensor Hall current sensor is a current measurement device based on the Hall effect principle, featuring high precision and low drift. They indirectly measure current by measuring Hall potential and are suitable for various applications, such as motor control and power management. Hall current sensors can provide high working voltages and are suitable for various environmental conditions, ensuring precise measurements even under changes in temperature and time more... Products Data Sheet
HR1M 500 H00	500	±1800	20...50	4...20mA	±1.0	20~6000	-40~85	Ø35.0		WJ2EDGVC-5.08-4P-14
HR1M 500 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards: IEC 61010-1: 2000 UL 508: 2010 Hall current sensors measure current based on the Hall effect principle, enabling non-contact current measurement and featuring high precision and excellent electrical isolation characteristics. Work process Current input: The measured current passes through the main circuit of the sensor, generating a corresponding magnetic field. Hall potential generation: Hall elements generate Hall potential under the influence of a magnetic field. Signal processing: The signal processing circuit amplifies the Hall potential and converts it into an output signal proportional to the measured current. The final output voltage signal can be directly read and processed by various acquisition devices, such as AD, DSP, PLC, etc more... Products Data Sheet
HS1V 600 H00	600	±900	±12...15	±4V	+1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 600 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor used detects and measures the flow of electric current in a conductor and converts it into a proportional, measurable signal (voltage, current, or digital output) for monitoring, control, or protection purposes. Current sensors are used across various sectors to ensure safety, efficiency, and proper operation of electrical systems more... Products Data Sheet
HS2V 600 H05	600	±1800	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 600 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor offers galvanic isolation, measures a wide frequency rang 200A-1500A, available in open-loop (cost-effective) and open-loop (high accuracy) designs more... Products Data Sheet
HS3V 800 H00	800	+2400	±15	±4V	+1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 800 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How Hall Sensors Work A current sensor is a device that detects electric current in a conductor and generates a signal proportional to that current, enabling monitoring and control in various applications. more... Products Data Sheet
HS2V 1000 H05	1000	±2500	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 1000 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 A current sensor is a device that detects electric current in a wire and generates a signal proportional to that current. The generated signal could be analog voltage or current or a digital output. more... Products Data Sheet
HS2V 1500 H05	1500	±2500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 1500 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 The Hall current sensor is a current measurement device based on the Hall effect principle. It indirectly measures the current by applying a magnetic field in the Hall element and measuring the Hall potential. Hall current sensors feature high precision and low drift, making them suitable for a wide range of applications, such as motor control and telecommunication rectifiers. They can measure the current of voltage rails up to 1,100V and ensure the safety of other system electronic components through enhanced isolation more... Products Data Sheet
HS3V 1500 H00	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 1500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High Voltage 500-3000A Current measurement Sensor more... Products Data Sheet
HS3V 2000 H00	2000	±5500	±15	±4V	±1	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 2000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 The current sensor series can perform electronic measurement of direct current, alternating current or pulse current, while ensuring electrical isolation between the primary and secondary circuits. The instantaneous voltage output range of these sensors is +/-4 V, and they are powered by a +/-15 V bipolar power supply. The DC bandwidth is 25 KHz. Current sensor is designed based on the Hall effect open-loop technology and is specifically tailored for industrial applications. more... Products Data Sheet
HS3V 3000 H00	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 3000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor Measurement of 500A 600A 800A 1000A 1500A 2000A 2500A 3000A 15V power supply 4V more... Products Data Sheet
AN5V 30 PB00	30	±90	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 30 PB00 30A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Small size current sensors employed in solar inverters and battery management systems to manage power conversion and ensure efficient operation more... Products Data Sheet
AN5V 10 PB00	10	±30	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 10 PB00 10A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 These measure the strength of the magnetic field using a Hall element, producing a proportional voltage. They can measure both AC and DC currents and are common in automotive and industrial applications more... Products Data Sheet
AN3V 10 PB50	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Open loop current sensors use the simplest implementation of the Hall effect. They provide the smallest, lightest, and most cost effective current measurement solution while also having very low power consumption more... Products Data Sheet
AN5V 15 PB00	15	±45	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 15 PB00 15A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 ASIC current sensor is a current sensor based on the Hall effect, featuring high accuracy and stability. Its working principle is that current flows through a conductor and generates a magnetic field through the Hall effect. Then, the ASIC amplifies and corrects these signals to enhance the measurement accuracy. The advantages of ASIC current sensors include: Low heat generation: Due to the smaller resistance value, less heat is produced. Easy to use and simpler design. Compatibility more... Products Data Sheet
AN3V 16 PB50	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V Electrical Measuring Analog Module Current Voltage Small AC Current Transducer 10A 16A 20A 32A 40A 50A more... Products Data Sheet
AN5V 20 PB00	20	±60	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 20 PB00 20A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 High-performance transducers optimizing power extraction in MPPT and servo motor drives. Current transducers can provide numerous functions, so they are found in a wide variety of devices, systems, and industries. In addition to sensing, quantifying, and converting electrical current from one type to another, these devices can also help track motor control. more... Products Data Sheet
AN3V 20 PB50	20	±50	5	2.5±2V	±1	250	-40~105	NA	+
AN3V 20 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 ASIC current sensors are integrated circuits designed to measure current using Hall effect technology. They operate by passing a current through a conductor, generating a magnetic field that is detected by a sensor. The output signal is then amplified and corrected using an ASIC, which enhances accuracy and stability. more... Products Data Sheet
AN5V 25 PB00	25	±75	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 25 PB00 25A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 ASIC sensors are known for their low sensitivity error and offset, making them reliable for various applications. These sensors are advantageous due to their compact design and ability to provide precise current measurements without the need for additional insulation. more... Products Data Sheet
AS1V 30 H05	30	±30	5	2.5±0.625V	+1	50	-40~105	20.5x10.5 mm		RVVP 3×0.3mm×0.3mm-1000
AS1V 30 H05 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor with primary nominal rms current ±30A,Supply voltage 5V, Connection of secondary RVVP 3×0.3mm² Shielded wire，Cable length 1000 ±10 mm. more... Products Data Sheet
AN3V 32 PB50	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Open loop current sensor small size wideMeasurement range 10A 16A 20A 32A 40A 50A low power consumption Frequency bandwidth 250kHz based on PCB mounting more... Products Data Sheet
AN3V 40 PB50	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 A Hall effect current sensor is an electronic device used to measure electric current by detecting the magnetic field generated around a current-carrying conductor. more... Products Data Sheet
AN5V 50 PB00	50	±150	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 50 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
AN1V 50 PB511	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect sensors series manufactured by factory current sensor 50A 100A 150A 200A 300A for battery management more... Products Data Sheet
AN1V 50 PB512	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Applicable for both AC and DC current detection, offering an economical and precise solution. Typical applications include motor control, load detection and management, power supply and DC-DC converter control, inverter control, and overcurrent fault detection. more... Products Data Sheet
AN1V 50 PB501	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors combine precision measurement with built-in isolation for compact, high-efficiency designs. By replacing bulky shunt and amplifier setups, they simplify layouts, reduce heat, and enhance safety across automotive and industrial applications. more... Products Data Sheet
AN1V 50 PB502	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors deliver galvanic isolation, lossless operation, and high-precision accuracy—enabling maximum efficiency and power density in compact systems. Designed for EV traction and auxiliary inverters, DC-DC converters, on-board chargers, solar inverters, and industrial power systems. more... Products Data Sheet
AN1V 50 PB311	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 50A 100A 150A 200A 250A 300A small size open loop current sensor unidirectional power supply voltage 3.3V Linearity ±1% Accuracy±1% for PCB mounting more... Products Data Sheet
AN1V 50 PB312	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Supply voltage 3.3V high quality open loop current sensor with respect to applicable standards and safety Frequency bandwidth( 250KHz, Response time 2.5µs for wide applications in industry more... Products Data Sheet
AN3V 50 PB30	50	±125	3.3	1.65±1.15V	+1.0	250	-40~150	NA	+
AN3V 50 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall Effect Current Sensor 3.3V Low Power 4.3kV Isolation current sensor module for power electronics for New Energy Industrial Automation more... Products Data Sheet
AN3V 50 PB50	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V current sensor for Servo Motor 4.3kV Isolation for Industrial Drive BMS and industrial control system more... Products Data Sheet
AS1V 50 H00	50	±50	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High performance primary hole 20.5mm×10.5mm current sensor for EV HEV BMS Current Sensor for industrial electronic devices 50A 100A 200A 300A 400A 500A 600A700A 800A more... Products Data Sheet
AS1V 50 H01	50	±150	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Industrial grade Bidirectional current 50A 100A 200A 300A 400A 500A 600Acurrent sensor electronic component Smart Current Sensor Real-time Monitoring Self-Calibration for AI Data Center IoT Industrial Internet more... Products Data Sheet
AN3V 80 PB55	80	±200	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 80 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor is an electronic device that measures the flow of electric current in a conductor and converts this measurement into a usable output signal, such as voltage or digital data. This output can be used for monitoring, control, or protection in various applications, including industrial automation, electric vehicles, and renewable energy systems. more... Products Data Sheet
AN1V 100 PB511	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors are devices that detect and measure electric current flowing through a conductor, converting it into a quantifiable output for various applications more... Products Data Sheet
AN1V 100 PB512	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Durable current sensor for industrial electronic devices,high power dc ac current sensor, fast response current sensor for industrial,isolated hall effect current sensor more... Products Data Sheet
AN1V 100 PB501	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial grade current sensor, power transducer，high sensitivity real-time monitoring for hybrid electric vehicle, powertrain, automotive electronics and circuit detection more... Products Data Sheet
AN1V 100 PB502	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB311	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB312	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB55	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AS1V 100 H00	100	±100A	5	2.5±2	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 100 H01	100	±300	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 100 H07	100	±100	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		RVVP 3 x 0.3mmx 0.3mm -600
AS1V 100 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR1A 100 H00	100	±100	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AR1A 100 H01	100	±100	±12...15	±100mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AN3V 120 PB55	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB511	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB512	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB501	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB502	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB311	150	±150	3.3	1.65±1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB312	150	±150	3.3	1.65+1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB511	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB512	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB501	200	200	5	0.55...4.55V	±1.0	250	-40~85	NA	+
AN1V 200 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB502	200	0-200	5	0.55+4V	±1.0	250	-40~85	NA	+
AN1V 200 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB311	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB312	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AS1V 200 H00	200	±200	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 200 H01	200	±600	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 200 H07	200	±200	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		RVVP 3 x 0.3mm x 0.3mm -600
AS1V 200 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR1A 200 H00	200	±200	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 200 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AR1A 200 H01	200	±200	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 200 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 300 H00	300	±300	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 300 H01	300	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 400 H00	400	±400	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 400 H01	400	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 500 H00	500	±500	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 500 H01	500	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 600 H00	600	±600	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 600 H01	600	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 700 H00	700	±700	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 700 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 800 H00	800	±800	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 800 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 25 P01	5mA	7mA	24	±25mA	±0.8		-40~85	NA	+
VN2A 25 P01 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Single power supply:+24V No insertion loss Small size High accuracy Very good linearity Very low offset drift over temperature High output frequency bandwidth Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 25 P00	10mA	±14mA	±15	±25mA	±0.6		-40~85	NA	+
VN2A 25 P00 Closed loop (compensated) voltage sensor using the Hall Effect. Insulating plastic case recognized according to UL94-V0. No insertion loss. Small size. High accuracy. Very good linearity. Very low offset drift over temperature. High output frequency bandwidth. Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
VN2A 25 P02	10mA	±14mA	24	±25mA	±0.8		-40~85	NA	+
VN2A 25 P02 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 No insertion loss Small size High accuracy Very good linearity Very low offset drift over temperature High output frequency bandwidth Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 400 PB02	400V	±400V	±12	±5V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 400 PB02 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Supply voltage +12V Very good linearity Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 800 PB00	800V	±1400V	±12...15	±25mA	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 800 PB00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 800 PB01	800V	±1400V	24	4V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 800 PB01 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Supply voltage +24V Very good linearity Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 1100 PB00	1100V	±1500V	±12...15	±25mA	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 1100 PB00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 1100 PB03	1100V	±1500V	±15	±4V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 1100 PB03 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL 94-V0 Small size High accuracy Supply voltage:±15V Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 1100 PB20	1100V	±1100V	±12	±4V	±0.6		-40~85	NA		XH-3A
VN2A 1100 PB20 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet

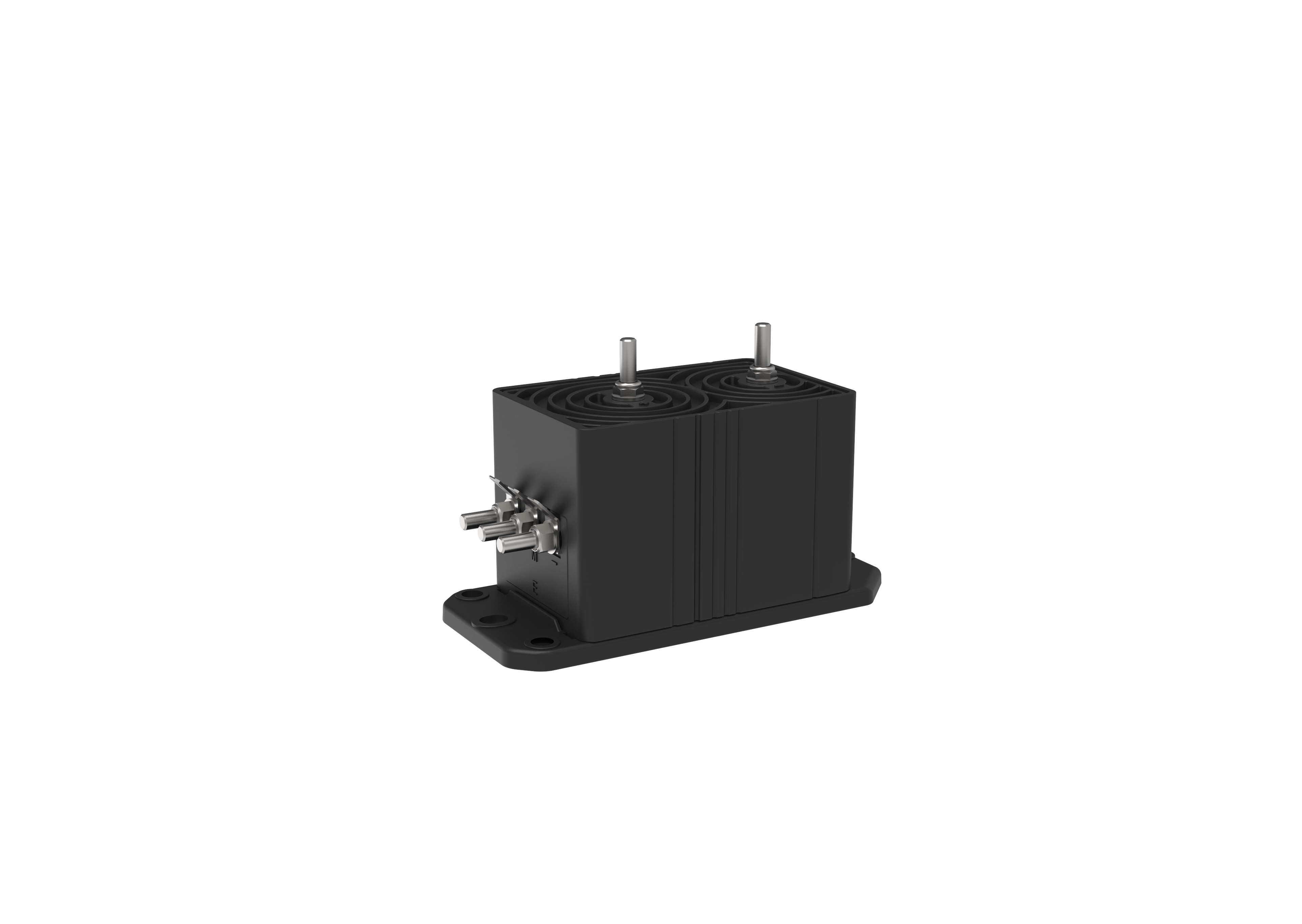

VN3A 6400 M00	6400V	±9600V	±15...24	±80mA	±1.0		-20~70	NA		M5 threaded bolts
VN3A 6400 M00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL 94-V0 Mutual shielding between the primary and secondary Primary side resistance R1 integrated into the sensor High accuracy Good linearity Very low offset drift over temperature Resistant to strong external interference Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
HK1V 200 H00	200	±400	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 200 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 400 H00	400	±800	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 400 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 600 H00	600	±1200	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 600 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 800 H00	800	±1600	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 800 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 1000 H00	1000	±2000	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 1000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 2000 H00	2000	±4000	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 2000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 200 H01	200	±400	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 200 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 400 H01	400	±800	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 400 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 600 H01	600	±1200	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 600 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 800 H01	800	±1600	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 800 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 1000 H01	1000	±2000	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 1000 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 2000 H01	2000	±4000	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 2000 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H02	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 50 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H03	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 50 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H04	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 50 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H06	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 50 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H08	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 50 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H09	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 50 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H00	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 100 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H02	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 100 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H03	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 100 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H04	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 100 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H06	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 100 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H08	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 100 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H09	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 100 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H02	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H03	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 200 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H04	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 200 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H06	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 200 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H08	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 200 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H09	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 200 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 200 H01	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 200 H02	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H02	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 300 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H03	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 300 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H04	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 300 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H06	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 300 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H08	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 300 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H09	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 300 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H02	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 400 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H03	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 400 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H04	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 400 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H05	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 400 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H06	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 400 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H08	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 400 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H09	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 400 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 400 H00	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 400 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 400 H01	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 400 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 400 H02	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 400 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H00	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H02	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H03	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 500 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H04	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 500 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H05	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 500 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H06	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 500 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H08	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 500 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H09	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 500 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 500 H01	500	±1500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 500 H02	500	±1500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 500 H00	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 500 H01	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H02	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 600 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN3V 10 PB30	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 10 PB31	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 10 PB51	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 16 PB30	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 16 PB31	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 16 PB51	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 20 PB30	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 20 PB31	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 20 PB51	20	±50	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 20 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 32 PB30	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 32 PB31	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 32 PB51	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 40 PB30	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 40 PB31	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 40 PB51	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 50 PB31	50	±125	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 50 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 50 PB51	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 80 PB35	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 80 PB31	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 80 PB51	80	±200	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 80 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB35	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB31	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB51	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 120 PB35	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 120 PB31	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 120 PB51	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H08	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 600 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H06	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 600 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H05	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 600 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H03	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 600 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H04	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 600 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H09	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 600 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 600 H01	600	±1800	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 600 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 600 H02	600	±1800	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 600 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 600 H00	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 600 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 600 H01	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 600 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 800 H00	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 800 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 800 H01	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 800 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 800 H02	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 800 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 800 H01	800	±2400	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 800 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1000 H01	1000	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 1000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1000 H02	1000	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 1000 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1000 H00	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 1000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1000 H01	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 1000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1200 H00	1200	±2500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 1200 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1200 H01	1200	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 1200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1200 H02	1200	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 1200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1500 H01	1500	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 1500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1500 H02	1500	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 1500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1500 H01	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 1500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2000 H01	2000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 2000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2500 H00	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 2500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2500 H01	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 2500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 3000 H01	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 3000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 200 P00	200	±450	5	2.5±0.625V	<1.1	>200	-40~85	NA	+
CS1V 200 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 150 P00	150	±270	5	2.5±0.625V	<1	>200	-40~85	NA	+
CS1V 150 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 100 P00	100	±270	5	2.5±0.625V	<1	>200	-40~85	NA	+
CS1V 100 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 80 P00	80	±270	5	0.25...4.75V	<1	>200	-40~85	NA	+
CS1V 80 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CR1V 6 PB02	6	±12	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 6 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 6 PB03	6	±12	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 6 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 6 PB04	6	±20	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 6 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB02	15	±30	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 15 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB03	15	±30	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 15 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB04	15	±51	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 15 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 25 PB02	25	±50	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 25 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
HK1A 400 H00	400	±480	12	4...20mA	±1.0	DC	-25~85	Ø41.3		2EDGV-3.81-4P
HK1A 400 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1V 25 PB04	25	±85	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 25 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 50 PB03	50	±100	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 50 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 50 PB04	50	±150	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 50 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 75 PB05	75	±180	5	2.5V	±1.0	200	-40~105	NA	+
CR1V 75 PB05 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CN1A 25 PB01	25	±36	±12	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AR1A 50 H00	50	±50	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 50 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AR1A 50 H01	50	±50	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 50 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AN1V 300 PB501	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 300 PB502	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 200 P21	200	±300	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 200 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 25 PB02	25	±55	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 25 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 40 PB02	40	±90	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 40 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 50 PB02	50	±90	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 50 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 50 H00	50	±70	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 50 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 100 H02	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 100 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 100 H04	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 100 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 200 H02	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 200 H04	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 200 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 300 H04	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 300 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM1A 100 H01	100	±200	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 100 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM1A 200 H02	200	±420	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex Minifit 5566
CM1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM4A 1000 H06	1000	±2700	±15...24	±200...540mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H06 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
CM5A 2000 H01	2000	±3850	±15...24	±400...770mA	±0.3	150	-40~85	Ø57.5		5566-4A
CM5A 2000 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM5A 2000 H21	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		2EDGV-5.08-3P
CM5A 2000 H21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 20 P01	20	±30	±12	±50...90mA	±0.5	150	-40~85	13.5 x 10 mm	+
CS3A 20 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 50 P00	50	±90	±12...15	±50...90mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 50 P21	50	±100	±12...15	±25...37.5mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 100 P21	100	±150	±12...15	±50...75mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 100 P51	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 100 PB00	100	±270	5	2.5±0.625	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 100 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 150 PB00	150	±270	5	2.5±0.625	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 150 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 200 PB00	200	±450	5	2.5±0.625V	<1.1	>200	-40~85	4 x φ5.2 mm	+
CS1V 200 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
AN3V 150 PB55	150	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 150 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN3V 180 PB55	180	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 180 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN3V 200 PB55	200	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 200 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN3V 150 PB35	150	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 150 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 180 PB35	180	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 180 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 200 PB35	200	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 200 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HK5V 1000 H20	±1000	±1500	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 1000 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 more... Products Data Sheet
VN4A 500 M15	500V	±750V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 500 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
VN4A 750 M15	750V	±1125V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 750 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
VN4A 1500 M15	1500V	±2250V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 1500 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
VN4A 2000 M15	2000V	±3000V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 2000 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
CS1V 250 P00	250	±380	5	2.5±0.625V	<1.1	>200	-40~85	21x11.5 mm	+
CS1V 250 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 300 P00	300	±600	5	2.5±0.9375V	<0.8	>200	-40~85	21x11.5 mm	+
CS1V 300 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 80 PB00	80	±270	5	2.5±0.625V	<1	200	-40~85	NA	+
CS1V 80 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
FR1C 300 H00	300	±400	13.5	CAN ID	±60mA		-40~85	Φ24.2 mm		Tyco AMP 1473672-1
FR1C 300 H00 Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H00	500	±600	13.5	CAN ID	±60mA		-40~85	Φ24.2 mm		Tyco AMP 1473672-1
FR1C 500 H00 Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
CM9A 1500 H00	1500	±2250	±15...24	±300mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 1500 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 3500 H00	3500	±4500	±15...24	±700mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 3500 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 5000 H00	5000	±5500	±24	±1000mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 5000 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 5000 H01	5000	±5500	±24	±1000mA	±0.1	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 5000 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 500 M00	500	±750	±15...24	±100mA	±0.3	100	-45~85	Ø120		M6
CR8A 500 M00 High accuracy 500A closed loop HALL current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 1000 M00	1000	±1500	±15...24	±200mA	±0.3	100	-45~85	Ø120		M6
CR8A 1000 M00 High accuracy 1000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 2000 M00	2000	±3000	±15...24	±400mA	±0.3	100	-45~85	Ø120		M6
CR8A 2000 M00 High accuracy 2000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 4000 M00	4000	±6000	±15...24	±800mA	±0.3	100	-45~85	Ø120		M6
CR8A 4000 M00 High accuracy 4000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 5000 M00	5000	±6000	±24	±1000mA	±0.3	100	-45~85	Ø120		M6
CR8A 5000 M00 High accuracy 5000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN5V 60 PB00	60	±180	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 60 PB00 60A open loop current sensor using the Hall Effect Supply voltage ±12...±15V Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

Industrial Power Supply

Applications

Featured Product
