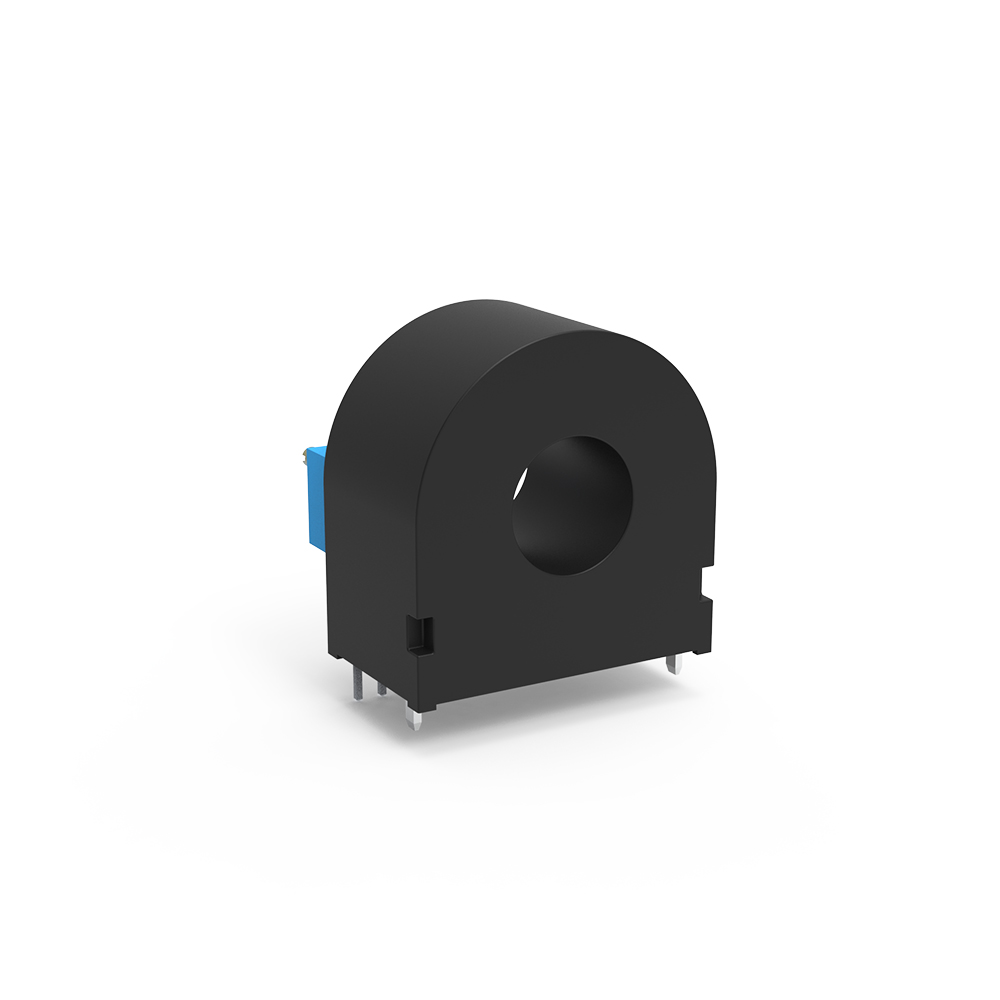

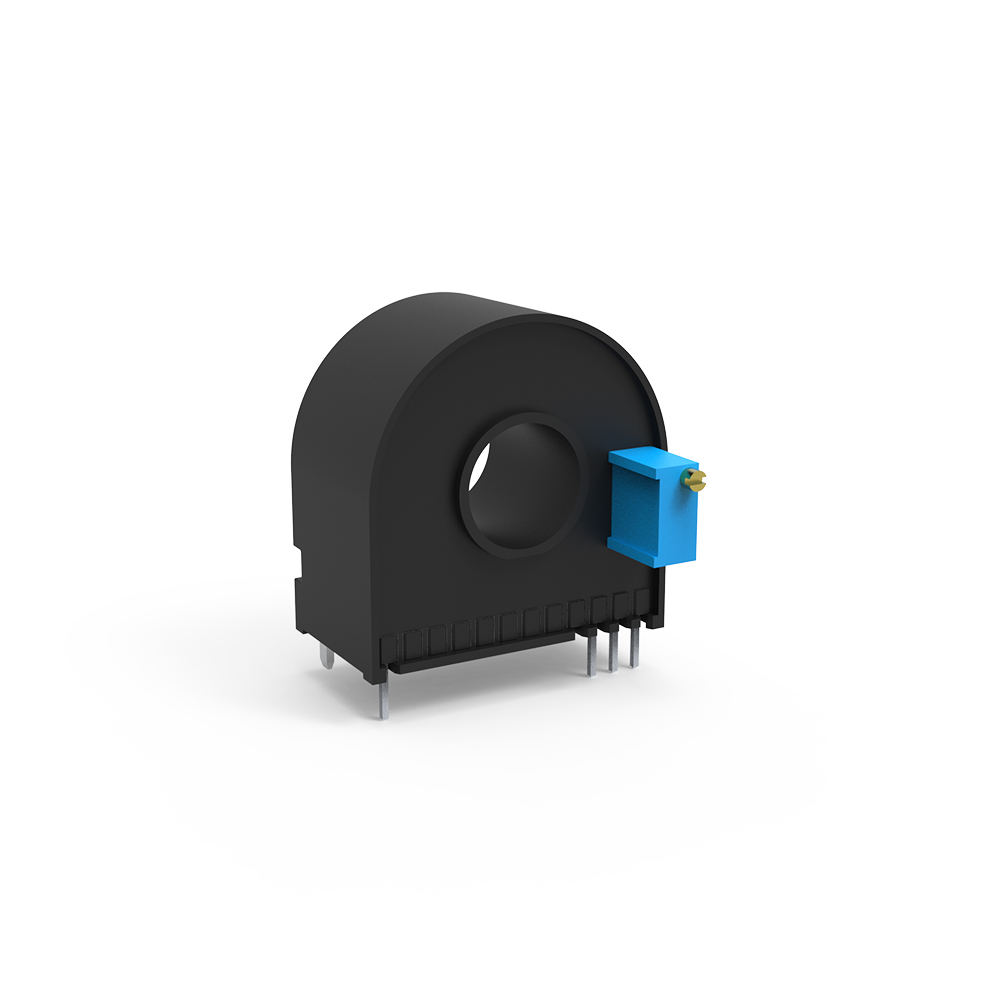

TR3V 0.005 P01
AC Leakeage current sensor 3.3V output
AC current sensor based on transformer technology
DC voltage output 3.3V
Insulating plastic case recognized according to UL94-V0
High Accuracy
Very low offset drift over temperature
Standards:
IEC 60664-1:2020
IEC 61800-5-1:2022
IEC 62109-1:2010
Related Applications
AC Power Screen
Residual AC current measurement
Wide range of single-phase or three-phase current detection (up to ±100A AC)
Failure mode detection of current sources
Symmetrical fault detection (such as at the output end of the inverter)
Download manual
Specification
Primary nominal RMS current (A)
5mA
Measuring range (A)
8mA
Supply voltage (V)
±12...15V
Secondary output
3.3V
Accuracy (%)
±0.5
Output bandwidth
50
Operating temperature (°C)
-40~85
Copper busbar (mm)
Φ12mm
PCB
+
