Split Core Hall Effect Current Sensor

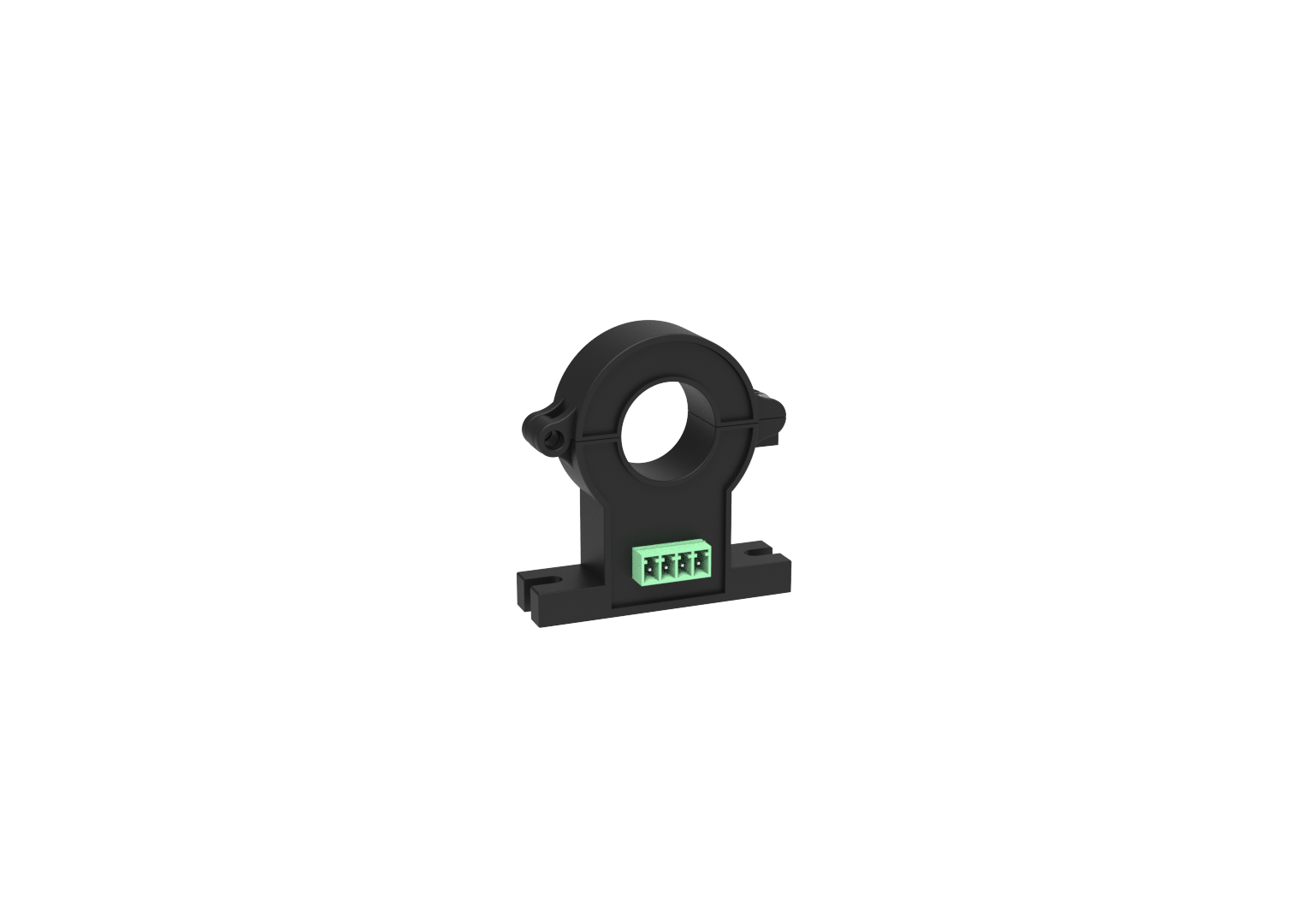

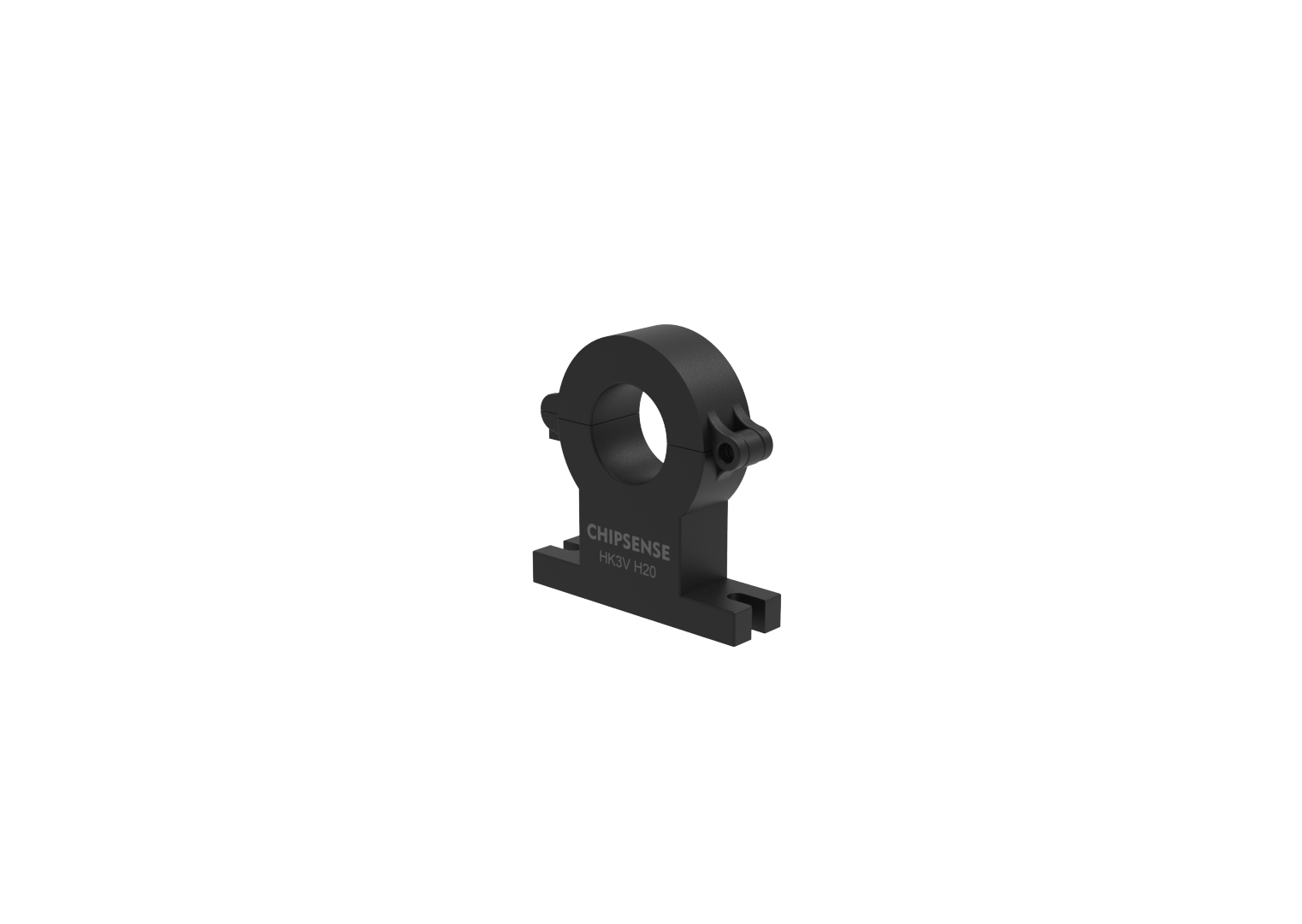

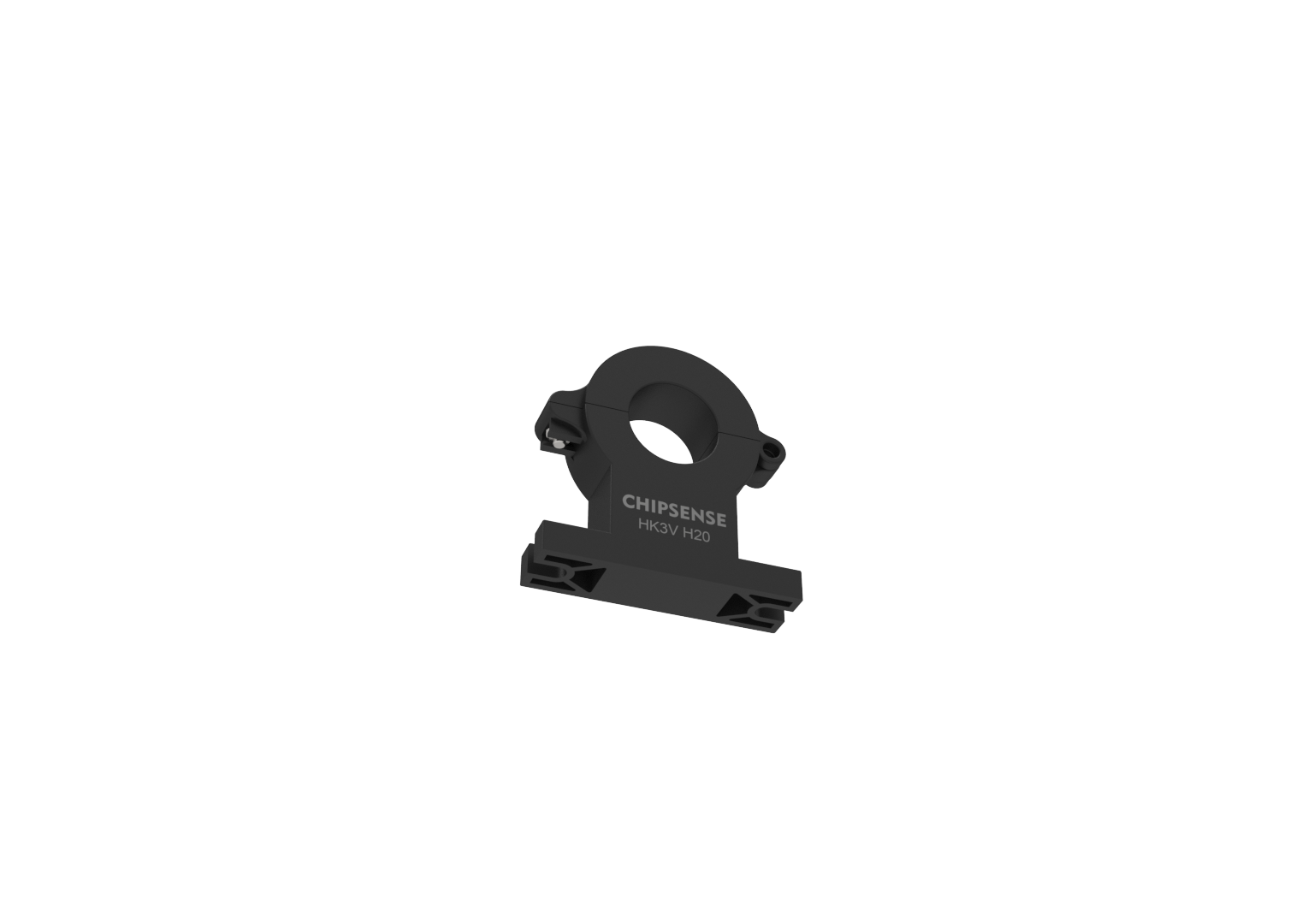

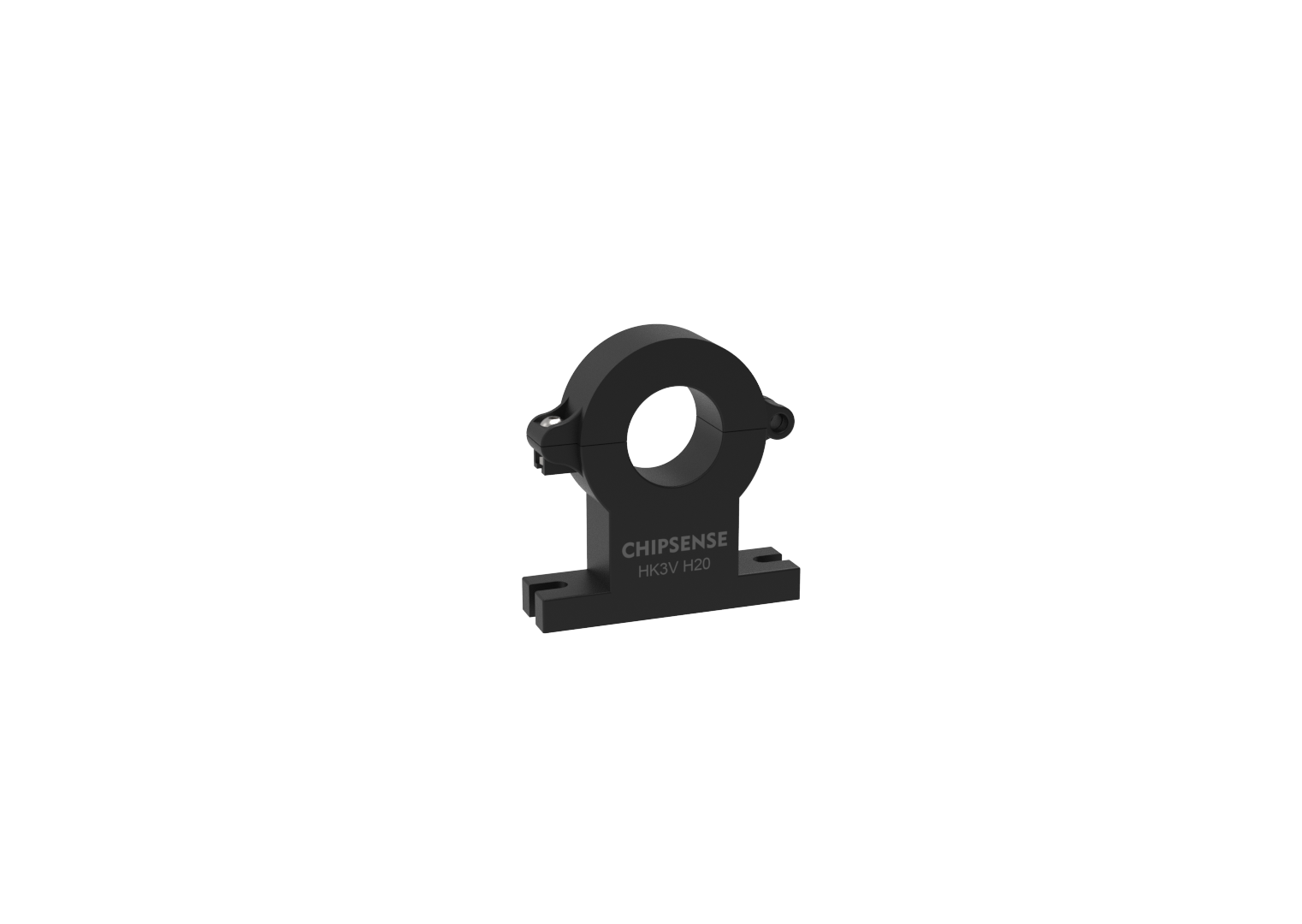

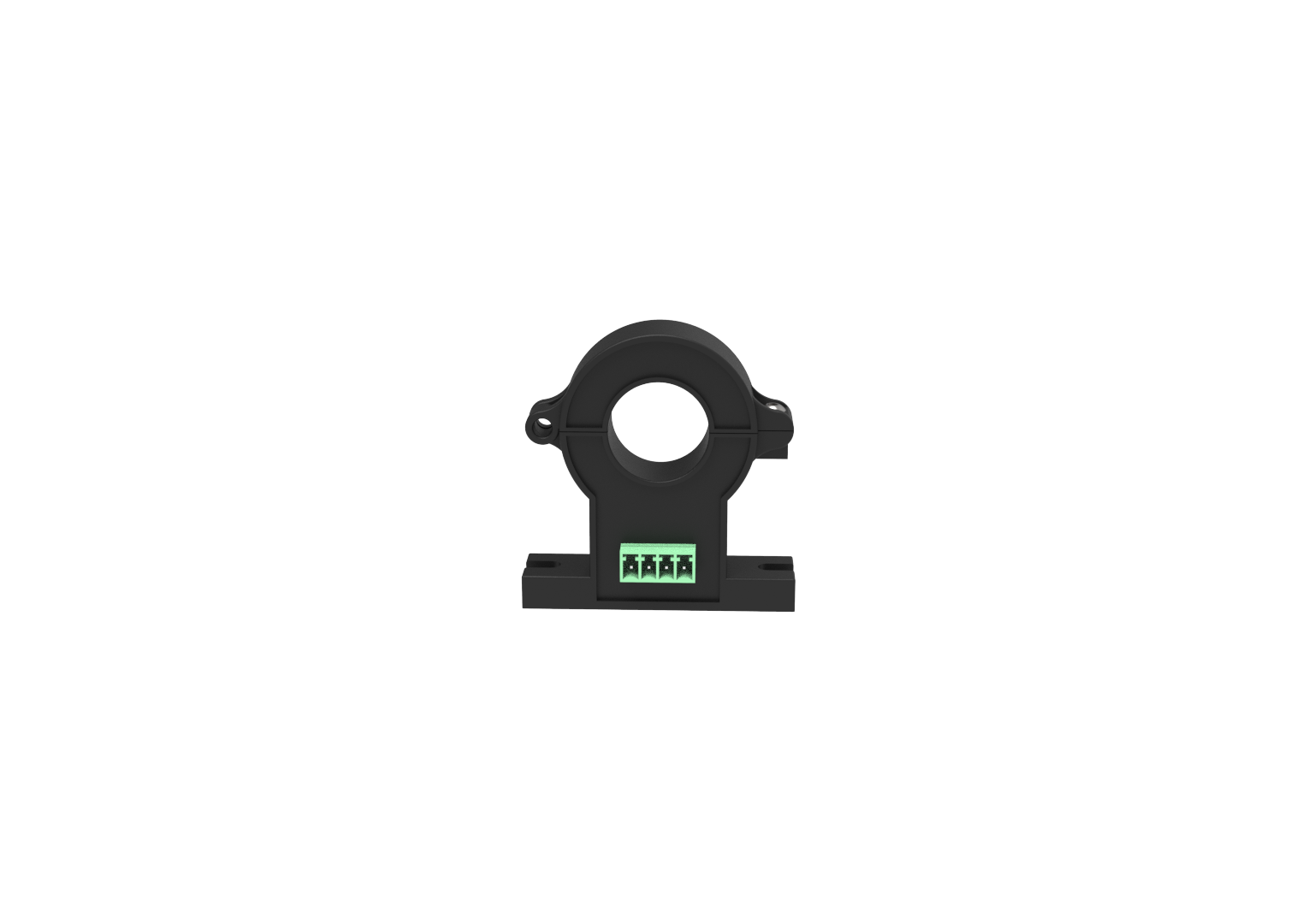

HK3V 100 H20
Product description
Open loop sensor using the Hall Effect
Galvanic separation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
No insertion loss
Double hall effect design
Open mounting
Standards:
IEC 60664-1:2020
IEC 61800-5-1:2022
IEC 62109-1:2010
Related Applications
Battery pack monitoring
Battery Management
Smart Power Grid
Download manual
Specification
Primary nominal RMS current (A)
±100
Measuring range (A)
±200
Supply voltage (V)
±12...15
Secondary output
±4V
Accuracy (%)
±1.0
Output bandwidth
DC
Operating temperature (°C)
-25~85
Copper busbar (mm)
Ø21.6
PCB
Others
KF2EDGV-3.81-4P
