Split Core Hall Effect Current Sensor

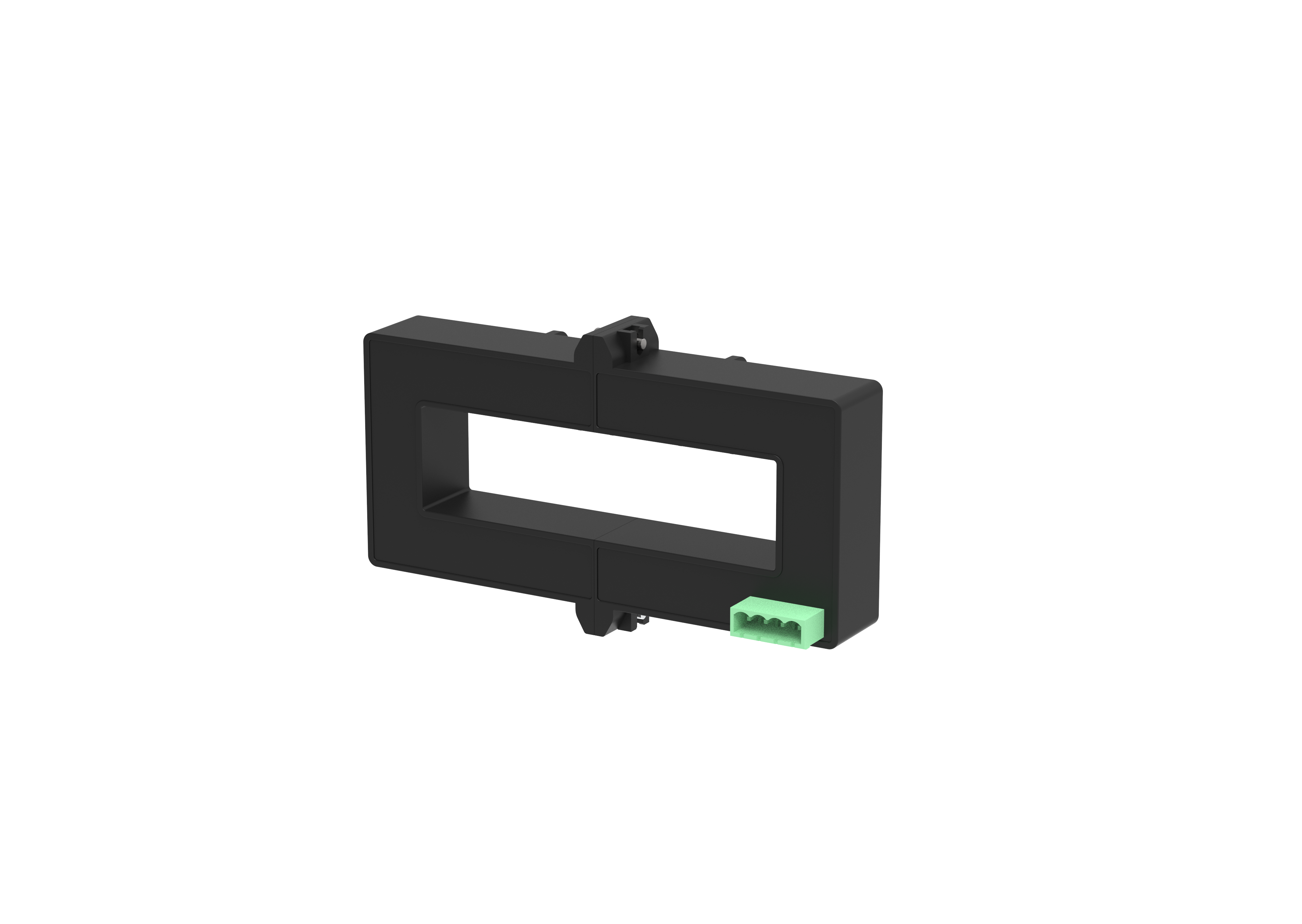

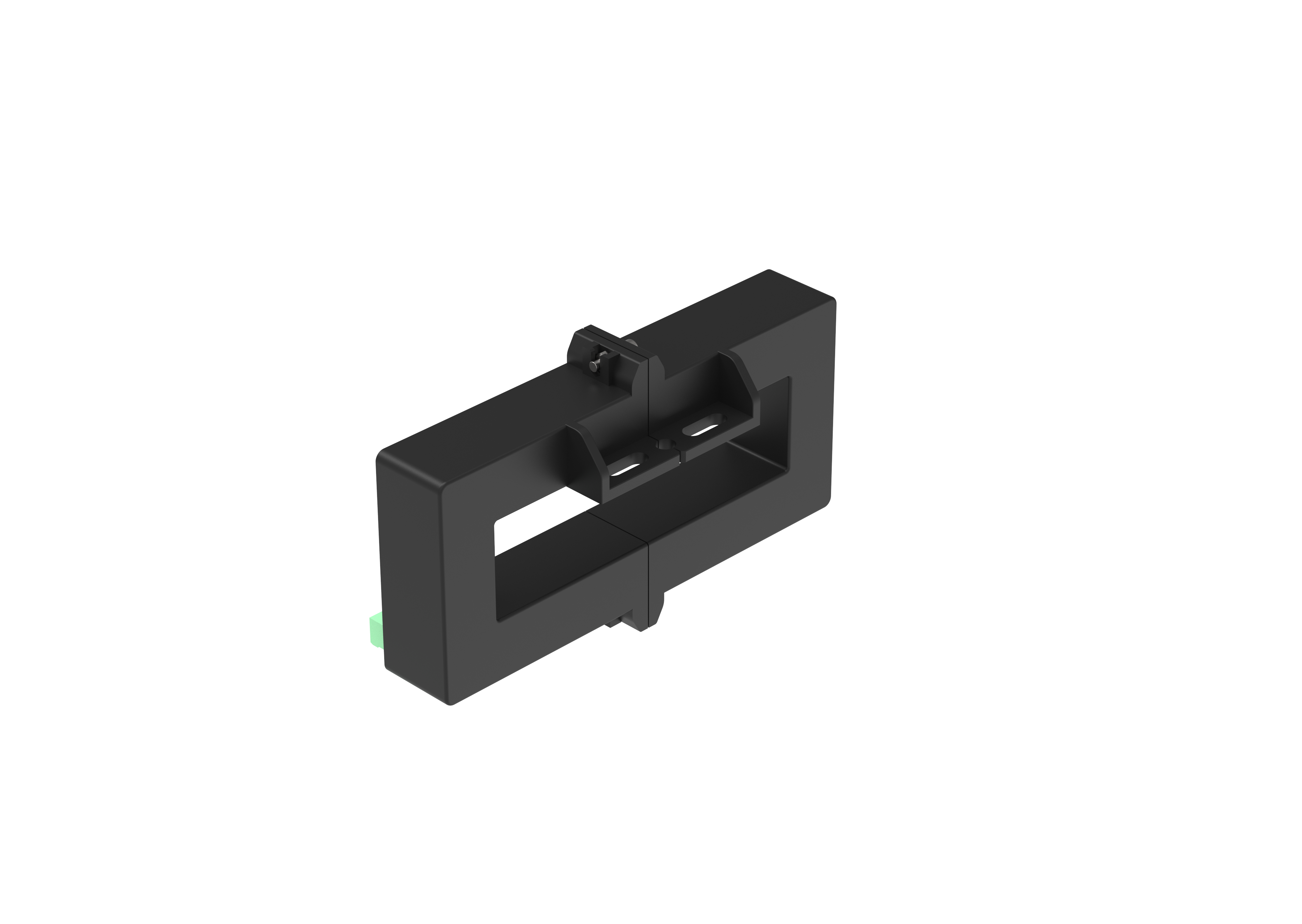

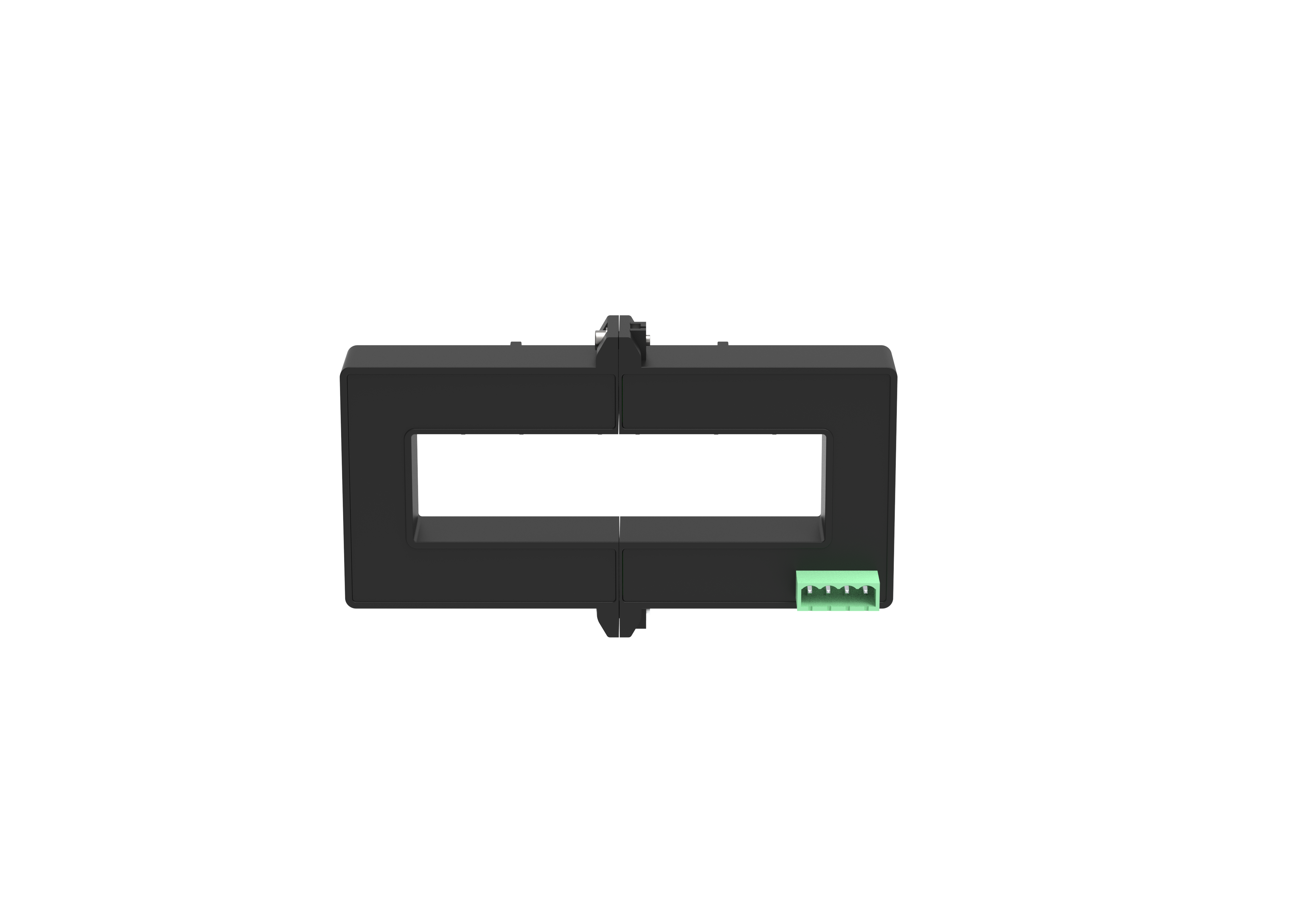

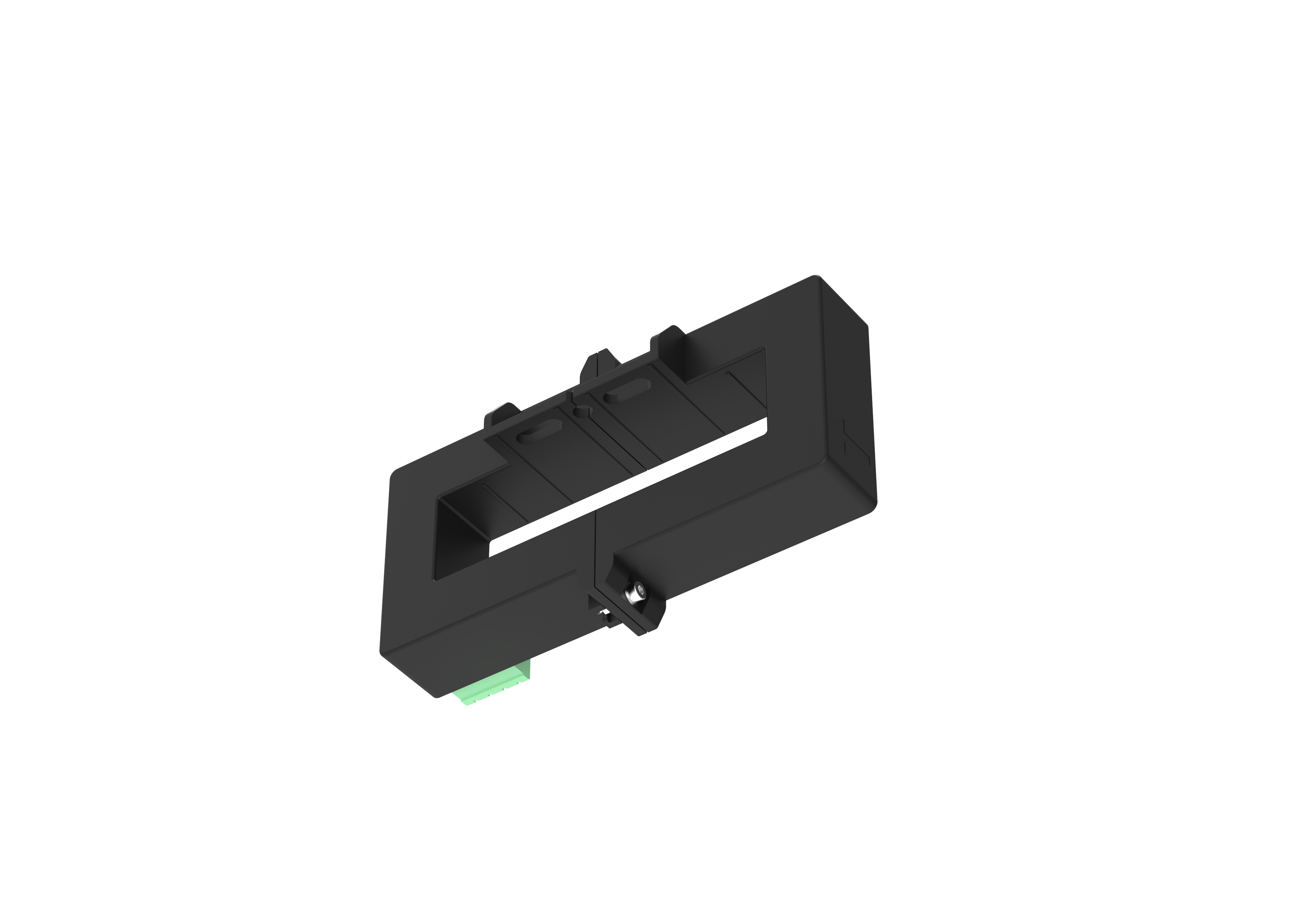

HK4V 3000 H00
Product description
Open loop sensor using the Hall Effect
Galvanic separation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
No insertion loss
Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010
Related Applications
UPS
Switched Mode Power Supplies
Welding machine power supplies
Battery Management
Static Inverter Driven by DC Motor
AC Variable Speed Regulation (Servo Motor)
Download manual
Specification
Primary nominal RMS current (A)
3000
Measuring range (A)
±5500
Supply voltage (V)
±15
Secondary output
4V
Accuracy (%)
±1.0
Output bandwidth
DC...40
Operating temperature (°C)
-40~85
Copper busbar (mm)
112mm×30mm
PCB
Others
2EDG-4P-3.81
