Split Core Hall Effect Current Sensor

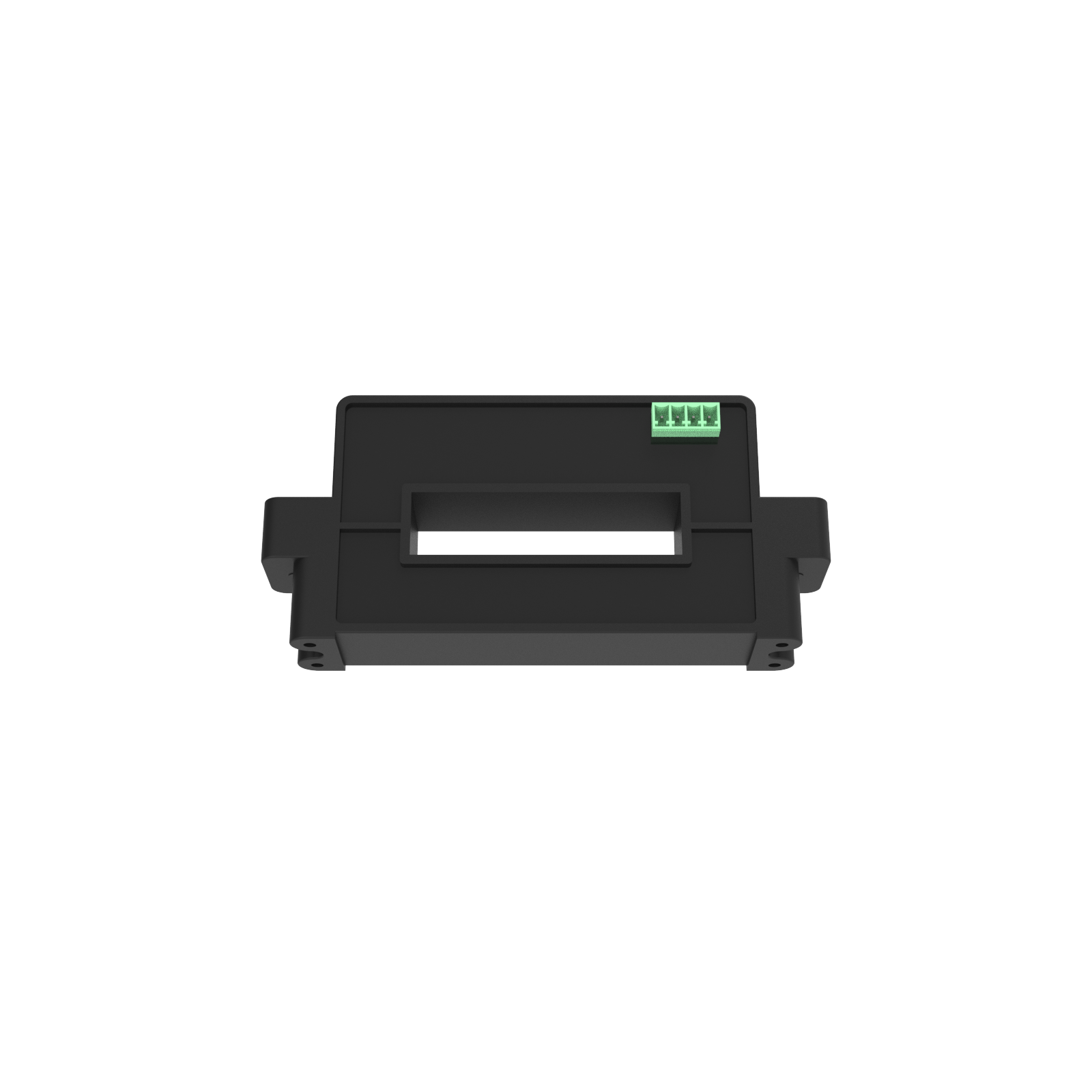

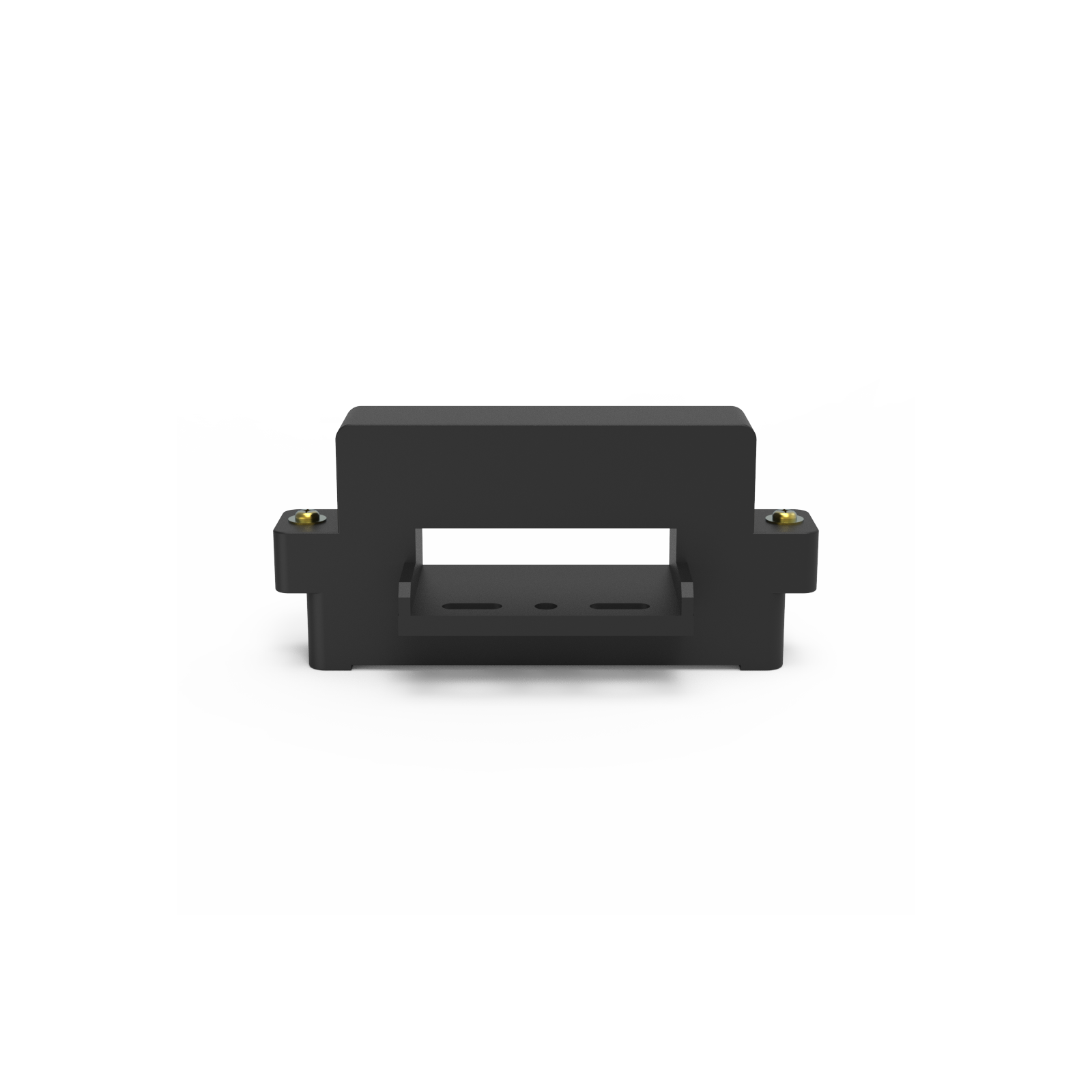

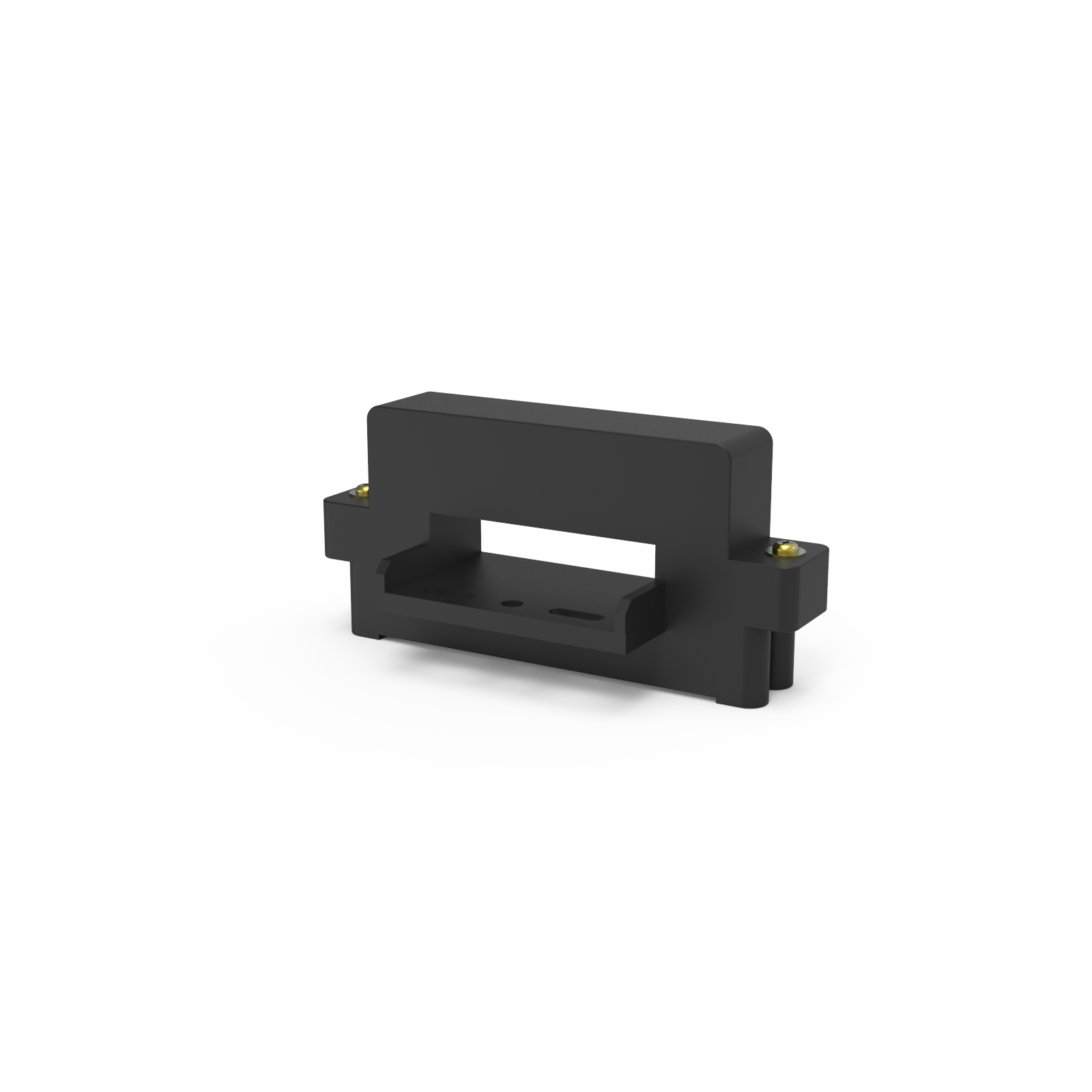

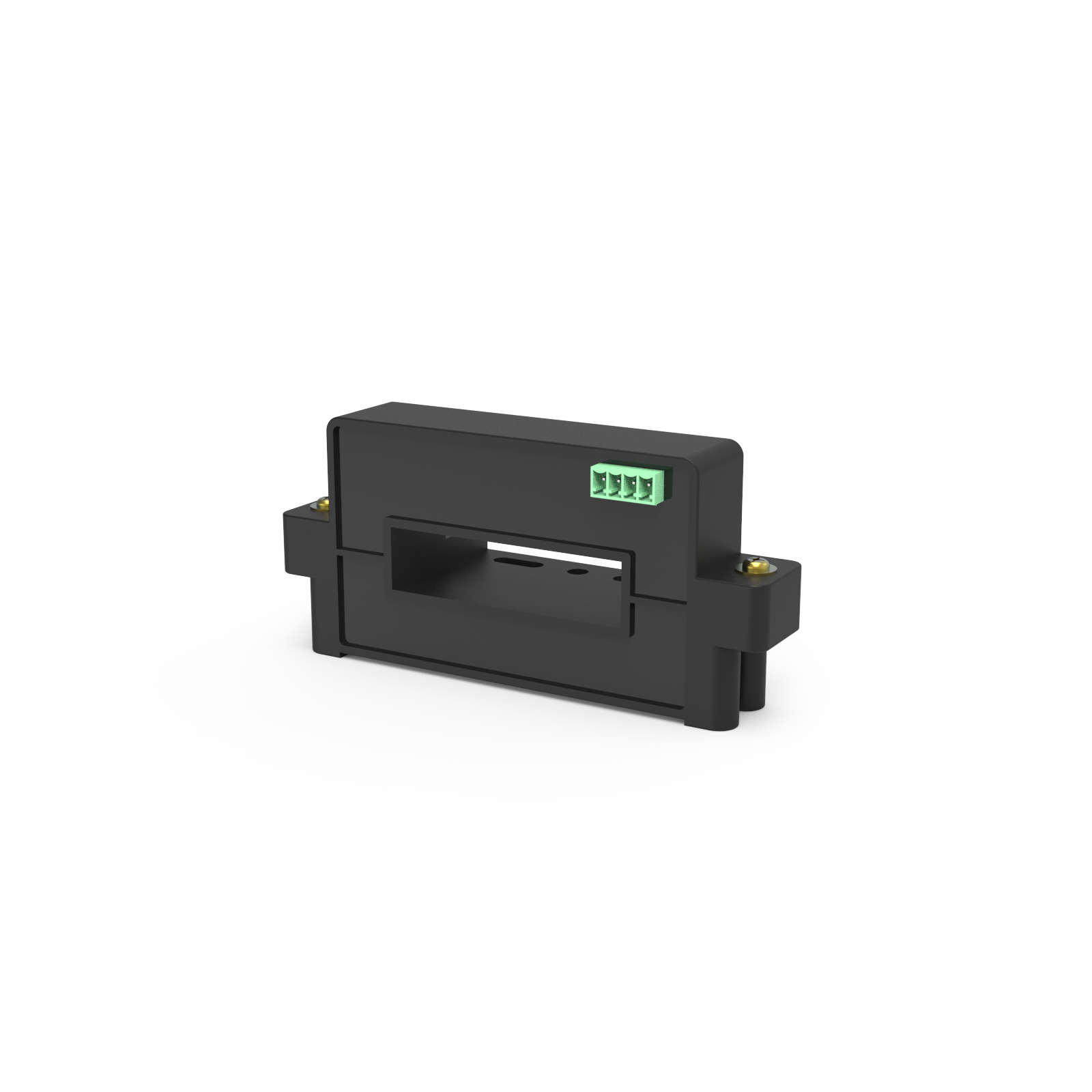

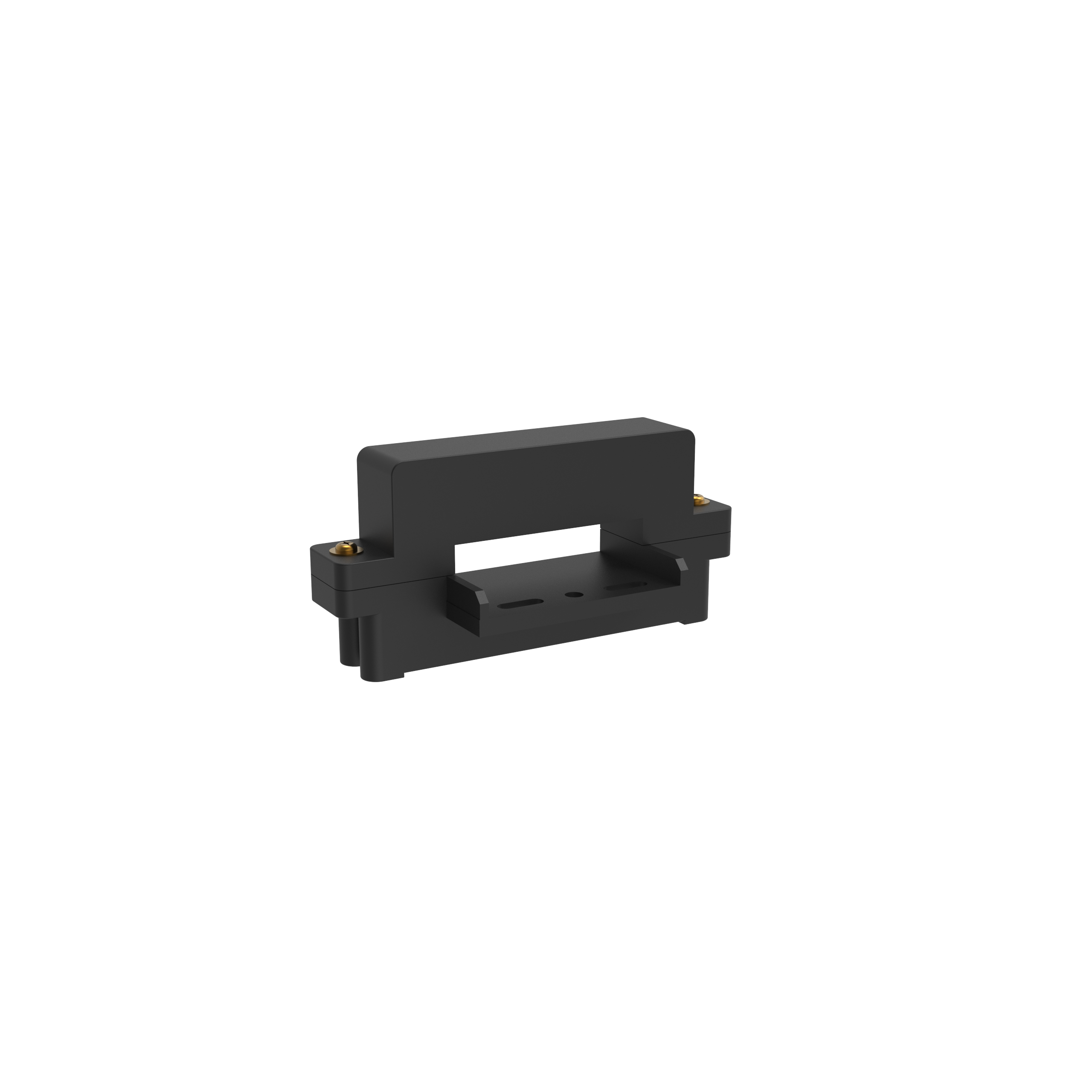

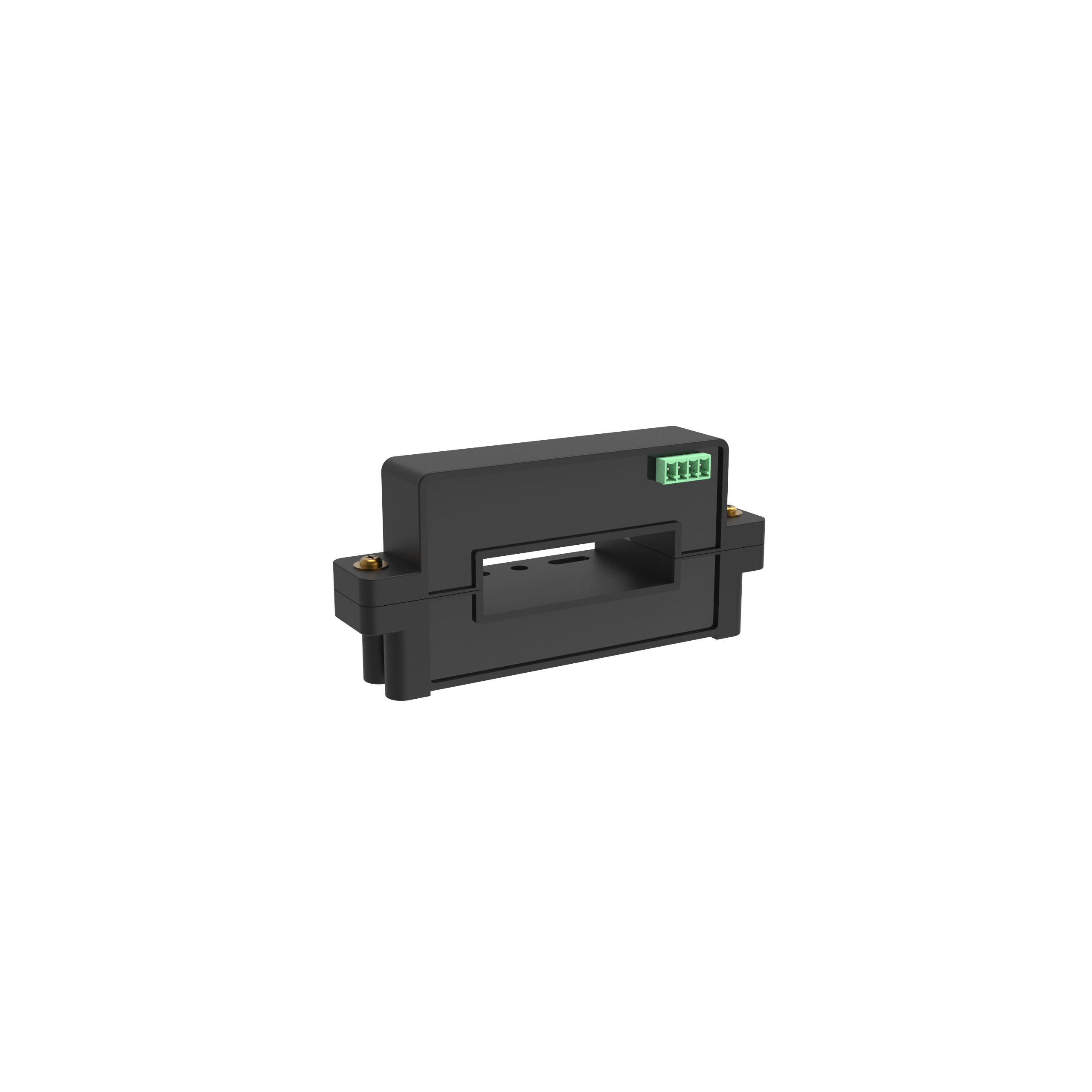

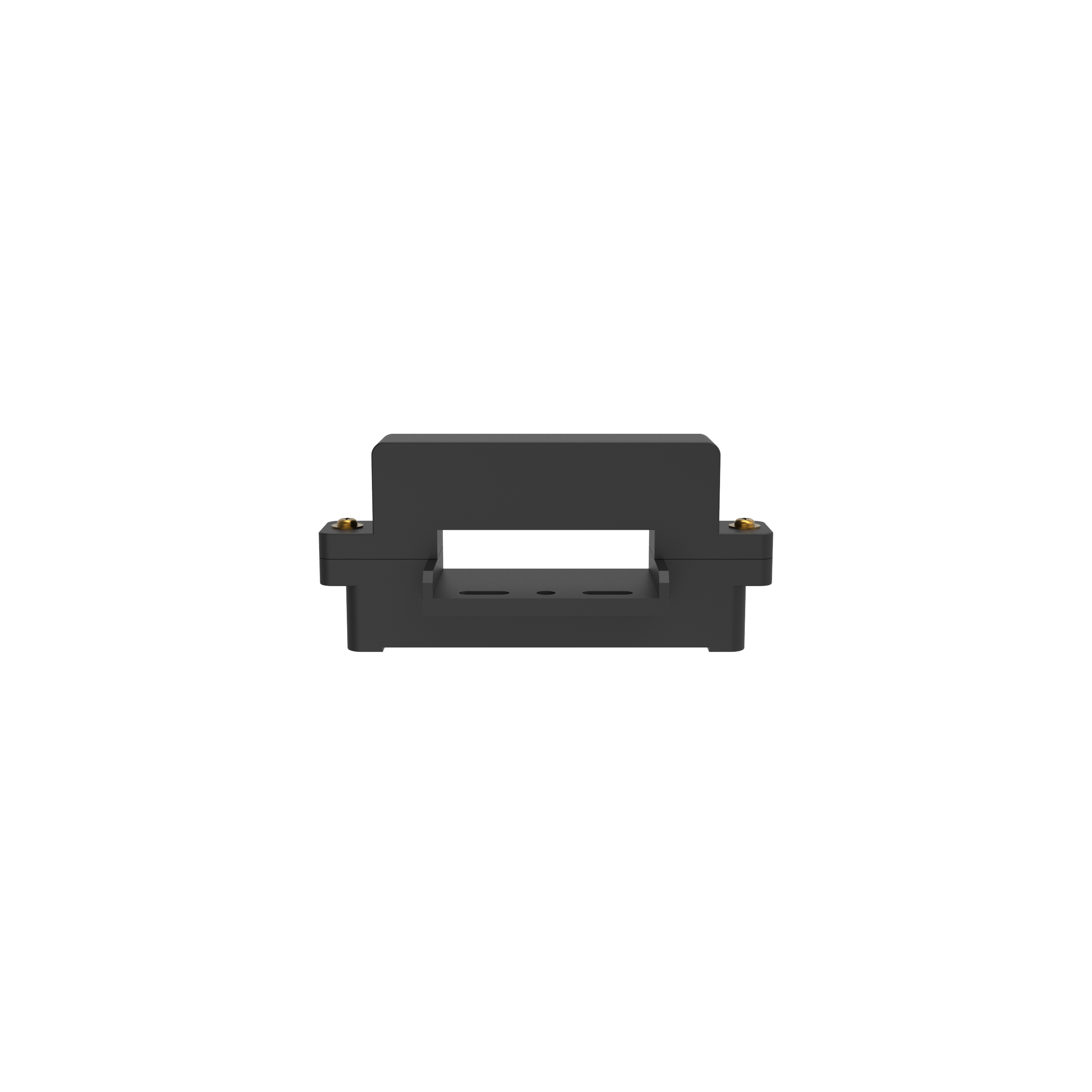

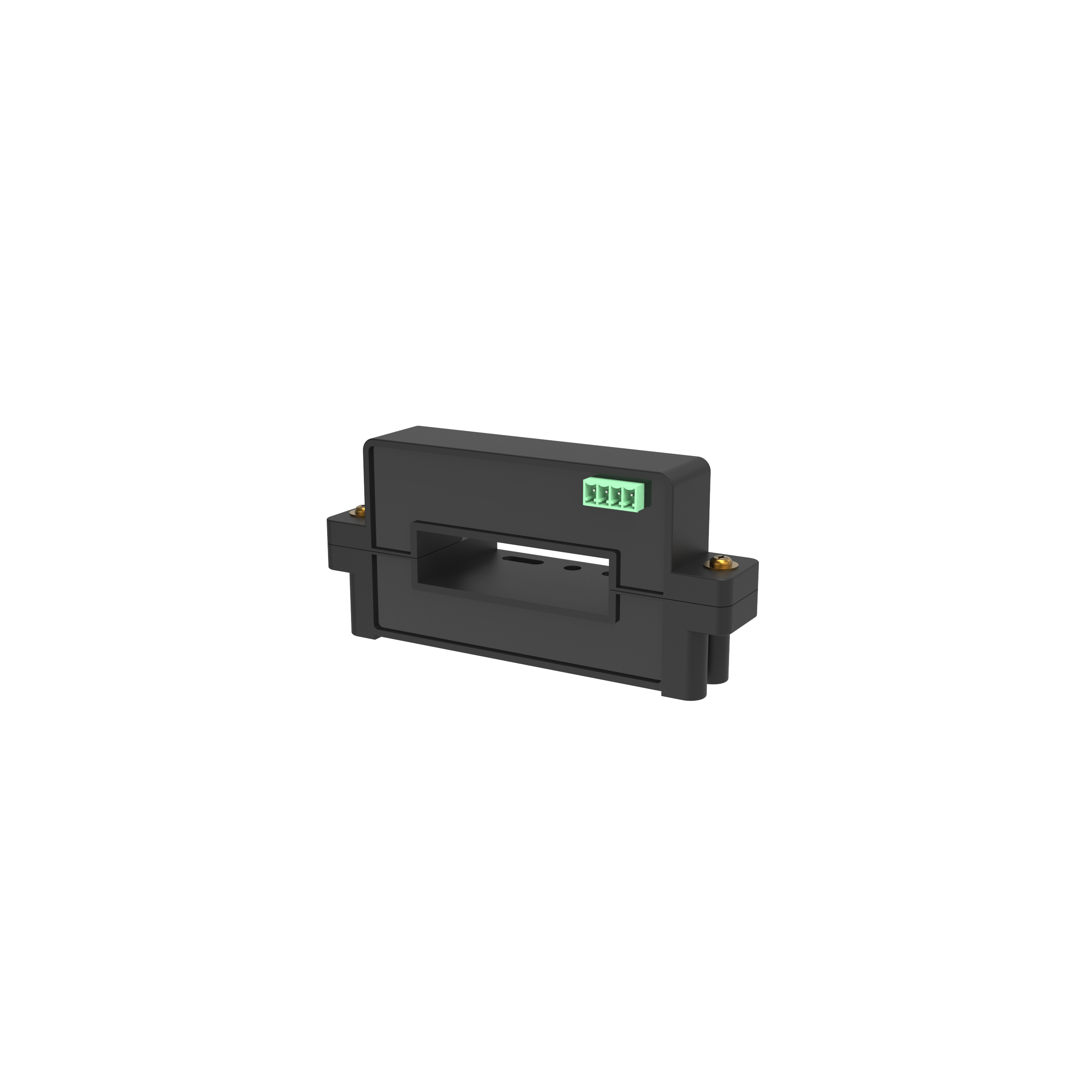

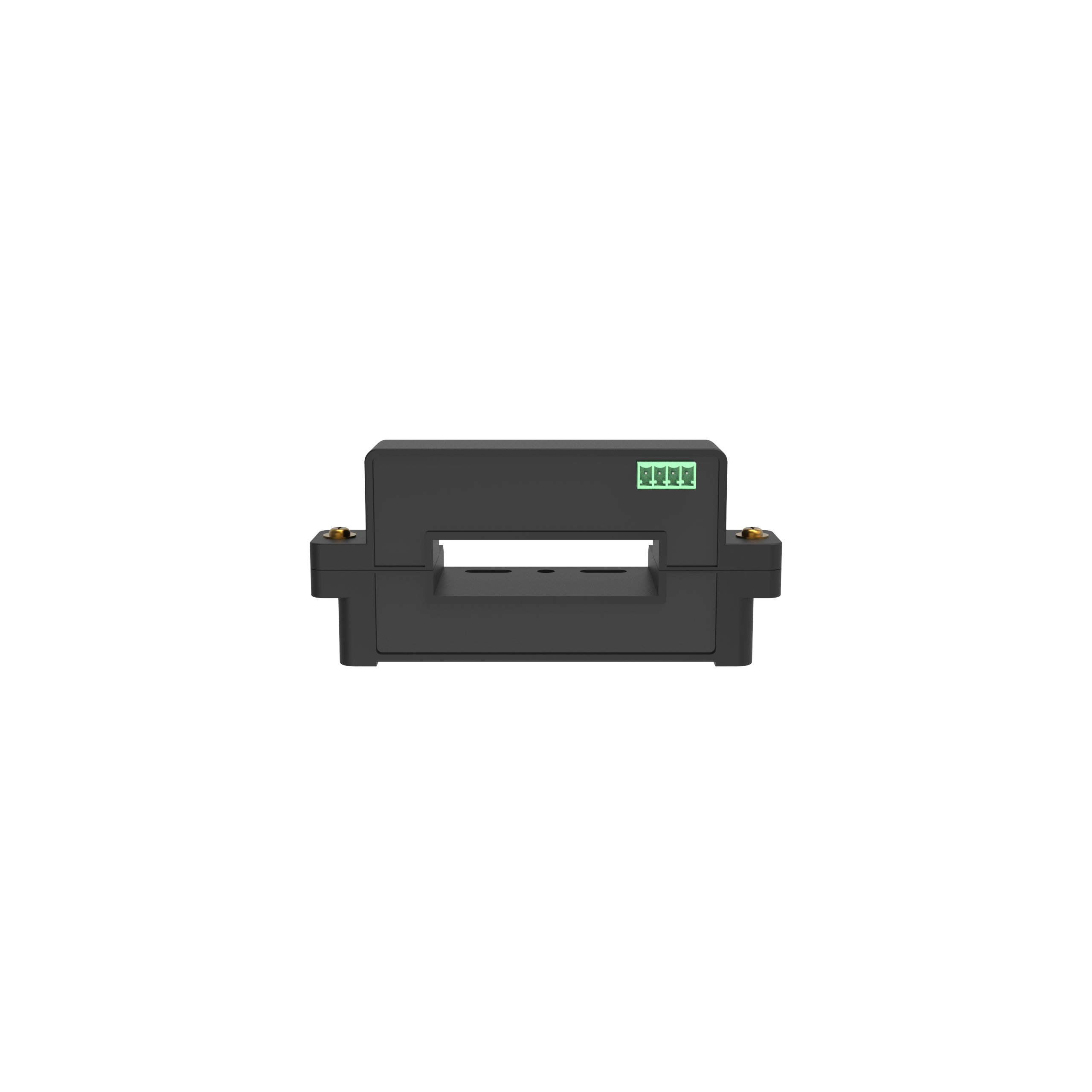

HK5V 200 H20
Product description
Open loop sensor using the Hall Effect
Galvanic separation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
No insertion loss
Double Hall design
Open installation
Standards:
IEC 60664-1:2020
IEC 62109-1:2010
IEC 61800-5-1:2022
Related Applications
UPS
Switched Mode Power Supplies
Welding machine power supplies
Battery Management
Static Inverter Driven by DC Motor
Wind Energy Converter
AC Variable Speed Regulation (Servo Motor)
Download manual
Specification
Primary nominal RMS current (A)
±200
Measuring range (A)
±300
Supply voltage (V)
±12...15
Secondary output
±4V
Accuracy (%)
±1.0
Output bandwidth
20
Operating temperature (°C)
-25~85
Copper busbar (mm)
16mm×64mm
PCB
Others
2EDG-4P-3.81
