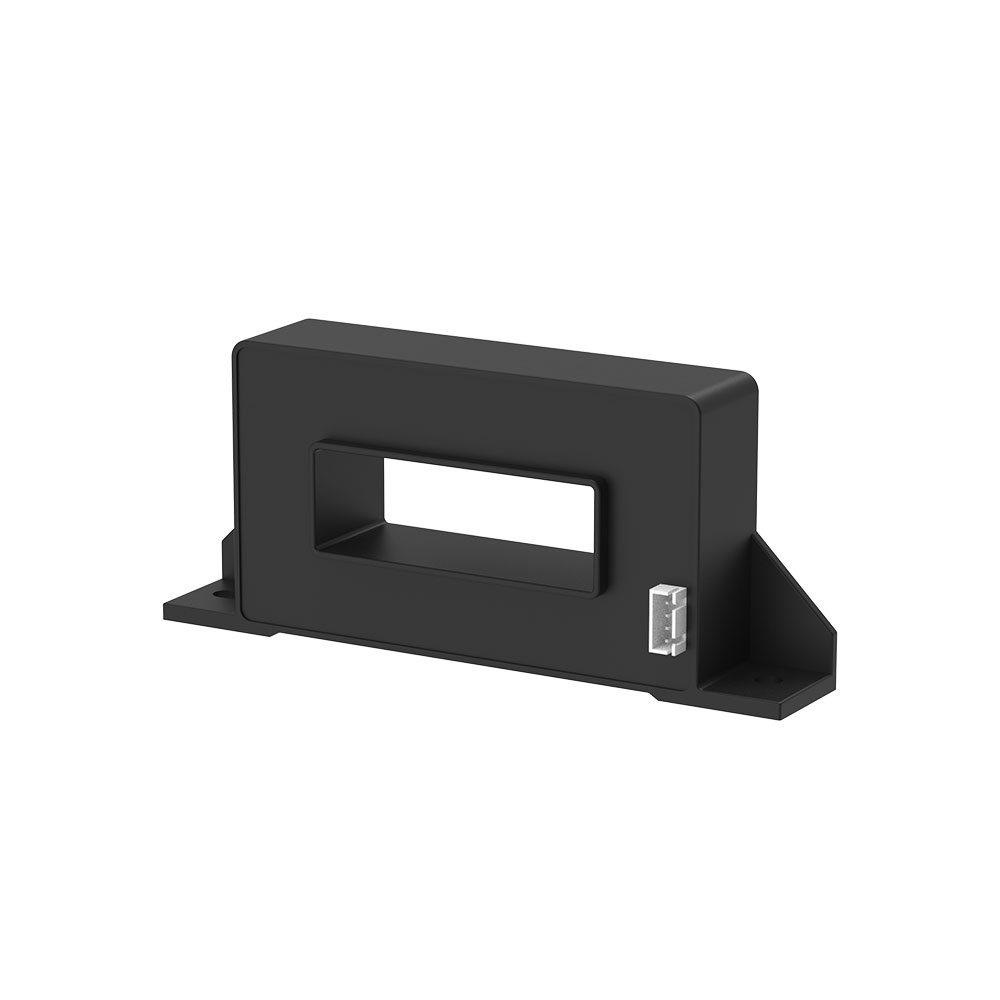

H Series Open loop Current Sensor - HS3V 2500 H01 - Image 2

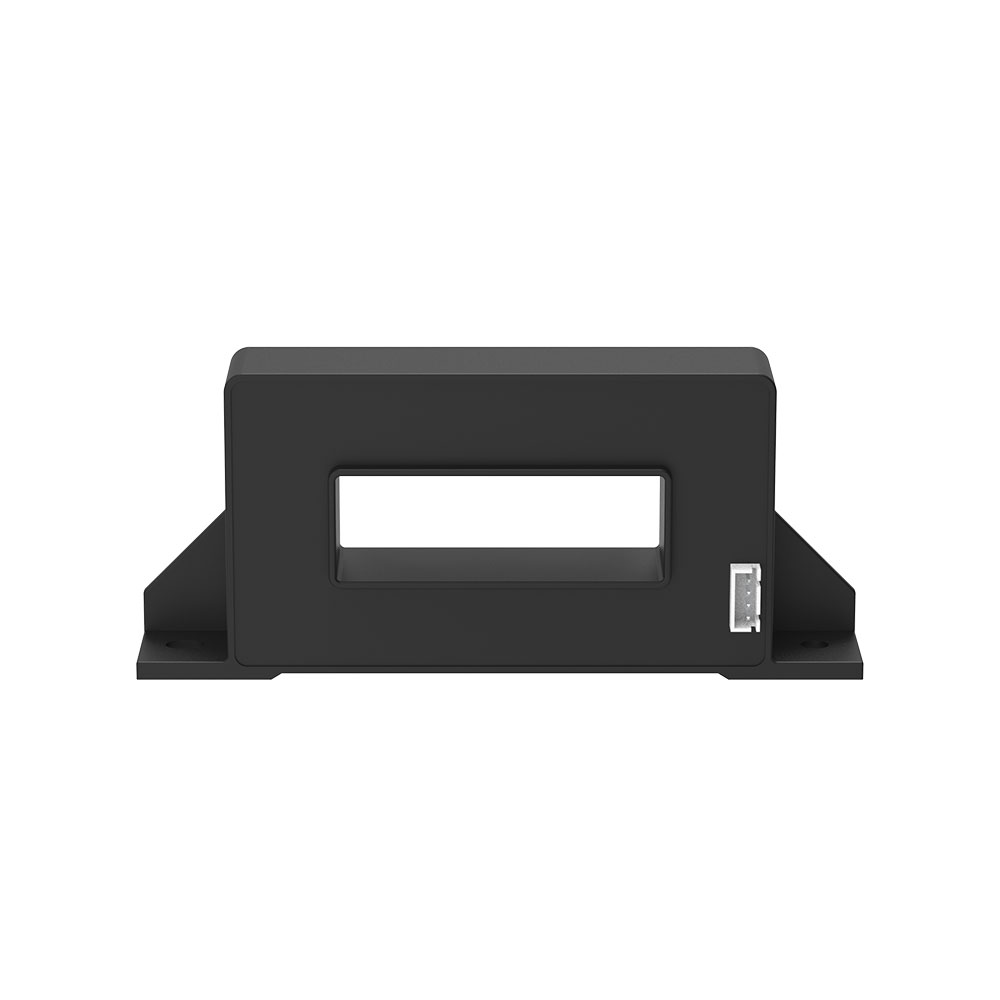

H Series Open loop Current Sensor - HS3V 2500 H01 - Image 3

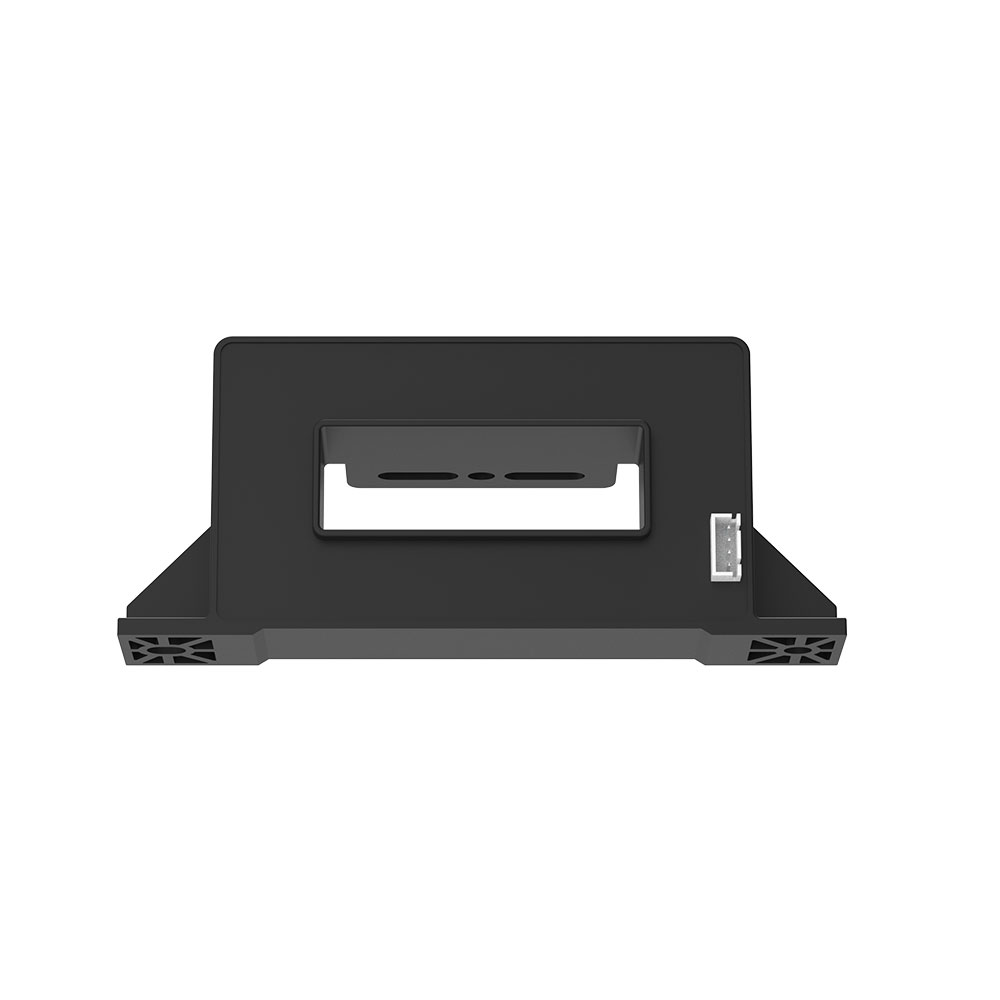

H Series Open loop Current Sensor - HS3V 2500 H01 - Image 4

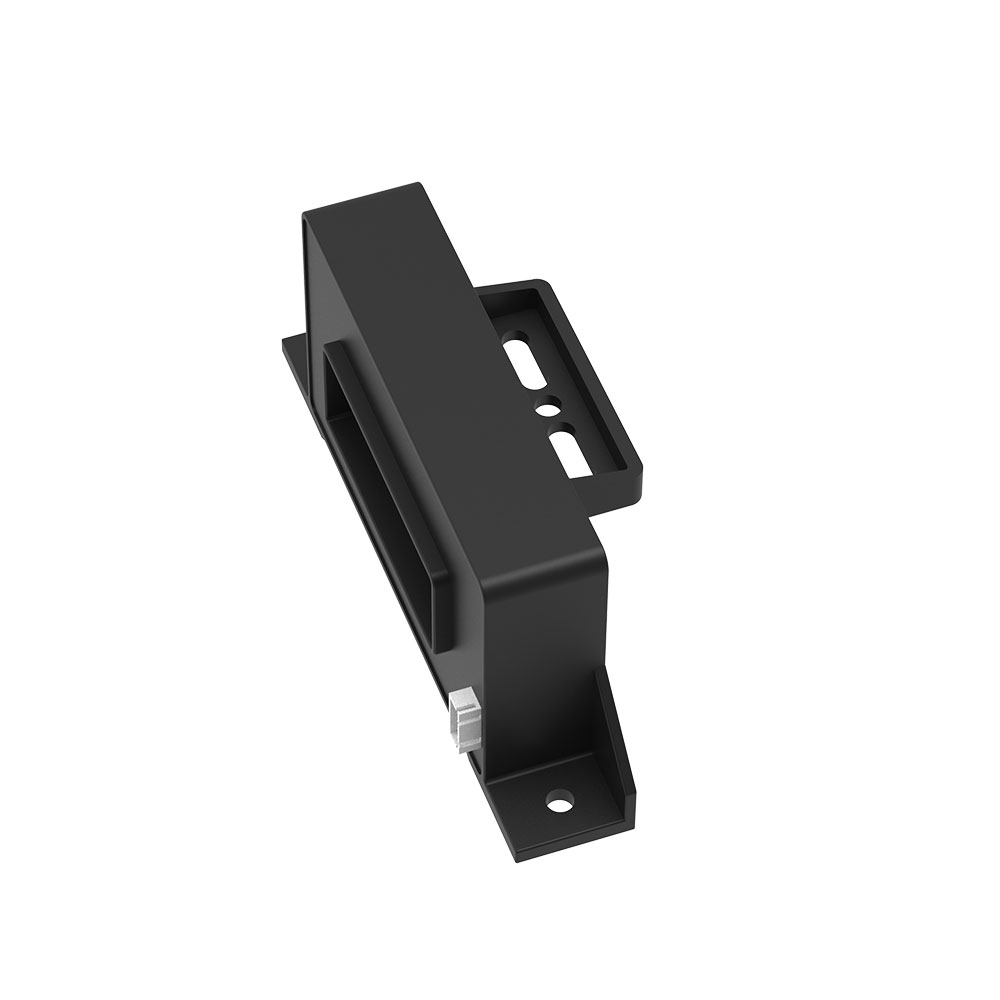

H Series Open loop Current Sensor - HS3V 2500 H01 - Image 5

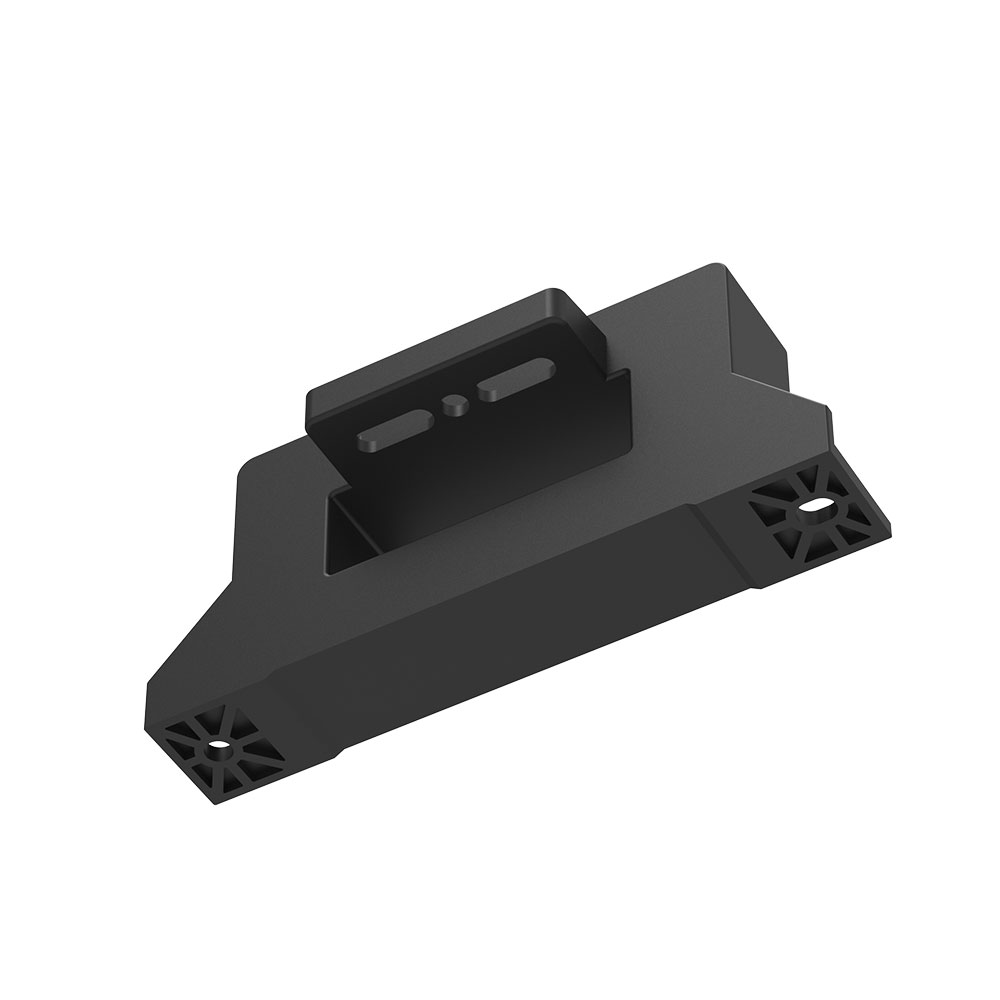

H Series Open loop Current Sensor - HS3V 2500 H01 - Image 6

Hall effect open-loop technology 2500A output 4V current transformer protect sensitive electronics and enhance safety

  • Open loop current sensor using the Hall effect
  • Galvanic separation between primary and secondary
  • Insulating plastic case recognized according to UL 94-V0
  • No insertion losses
  • Small size
  • Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010

AC/DC current transducer

Related Applications

Download manual

Specification

Primary nominal RMS current (A) 2500
Measuring range (A) ±5500
Supply voltage (V) ±15
Secondary output ±4V
Accuracy (%) ±1.0
Output bandwidth 25
Operating temperature (°C) -40~85
Copper busbar (mm) 64 x 21 mm
PCB
Others XH-4A
