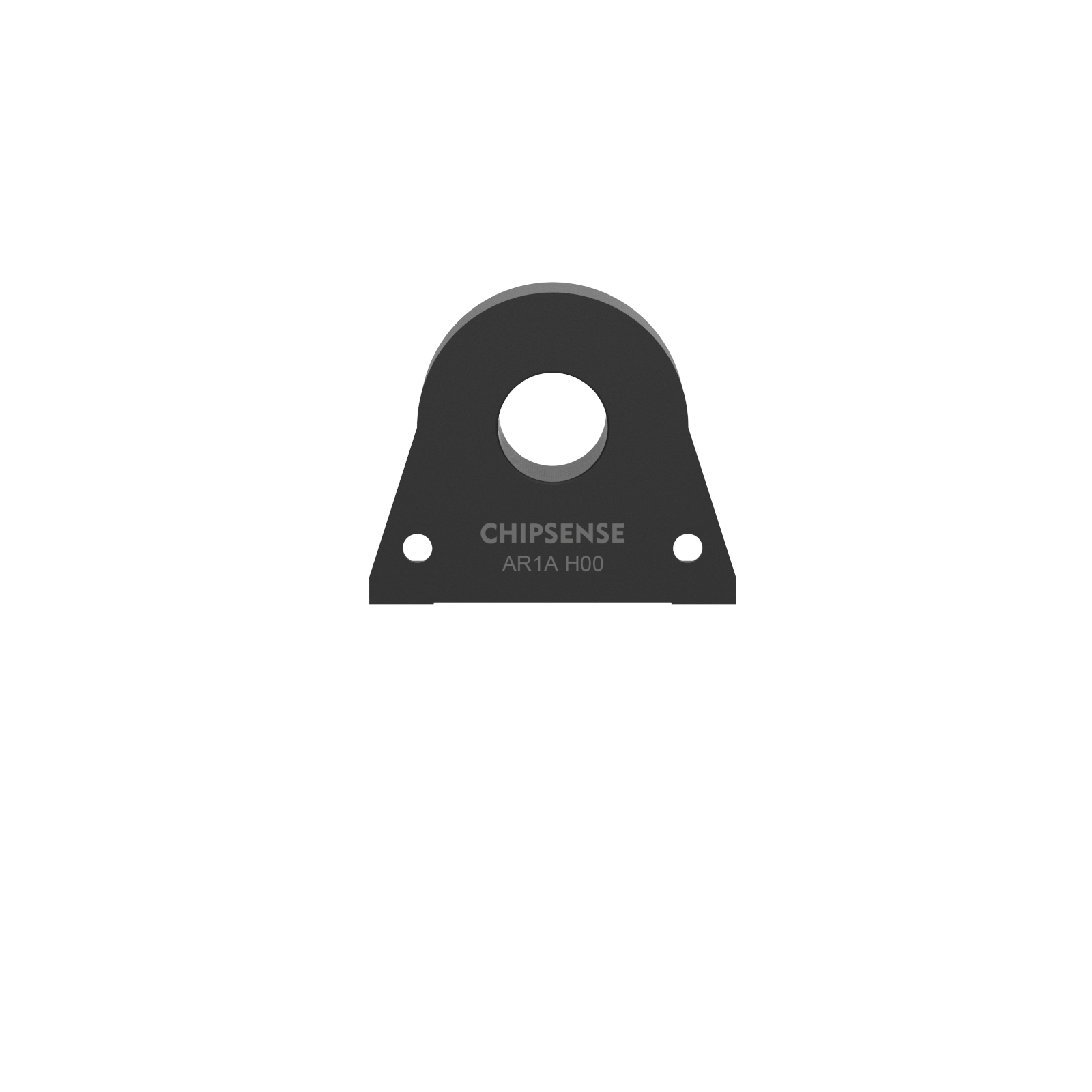

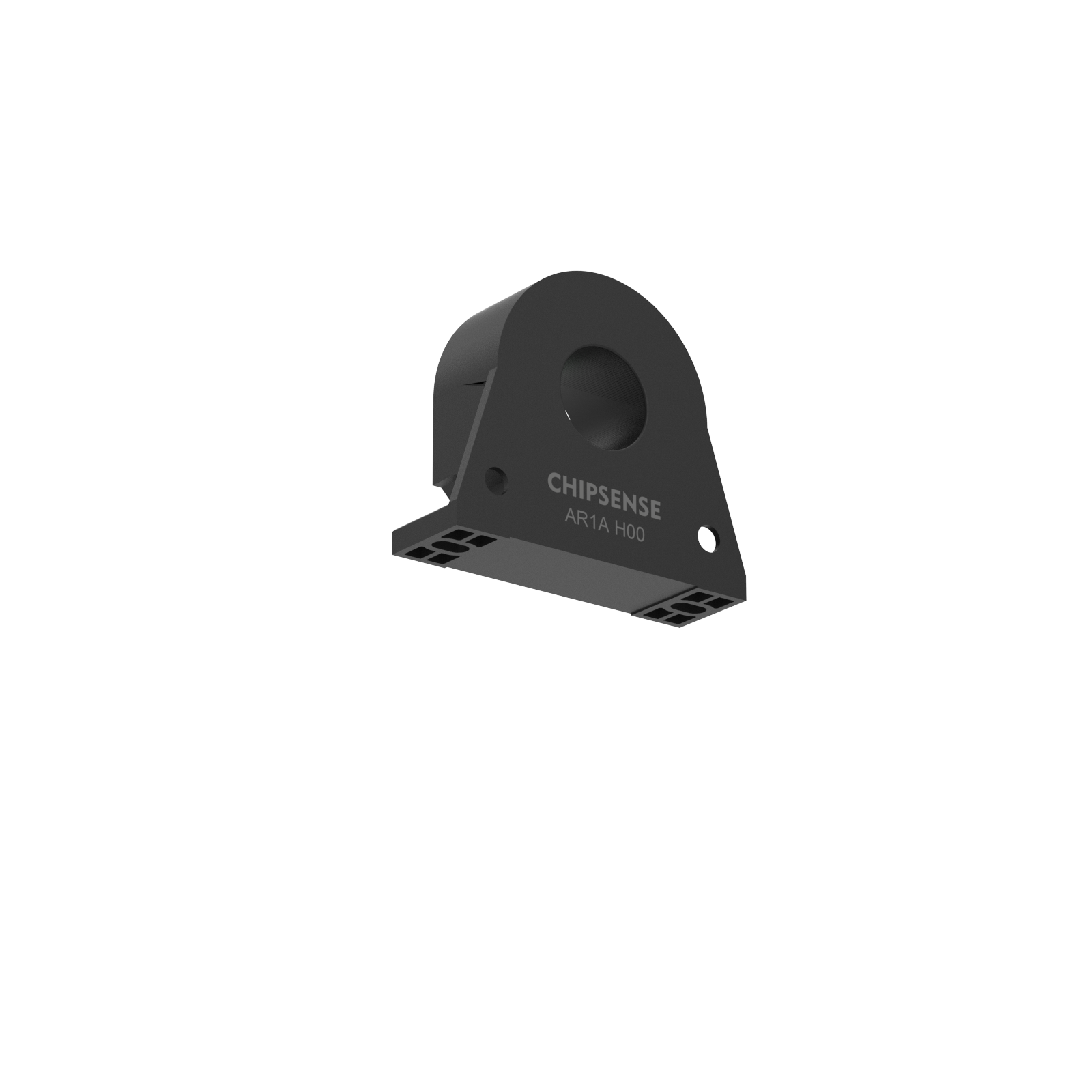

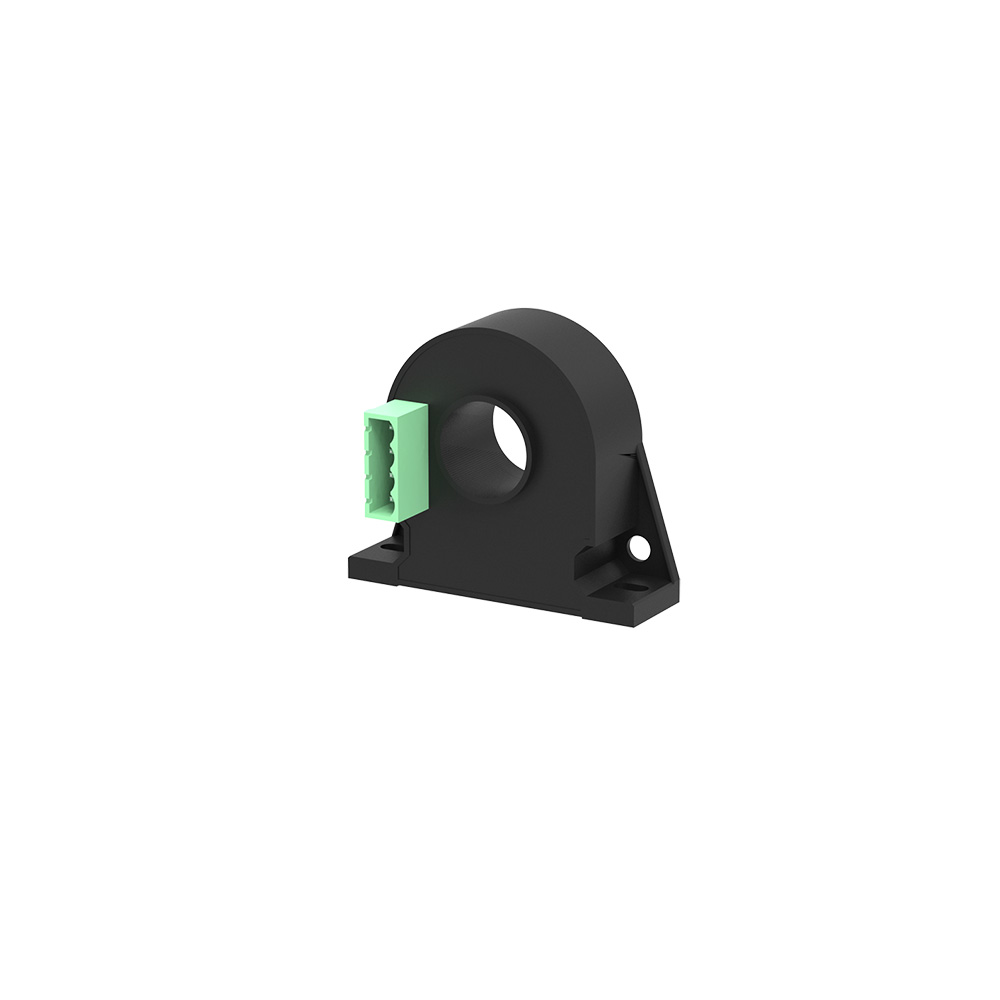

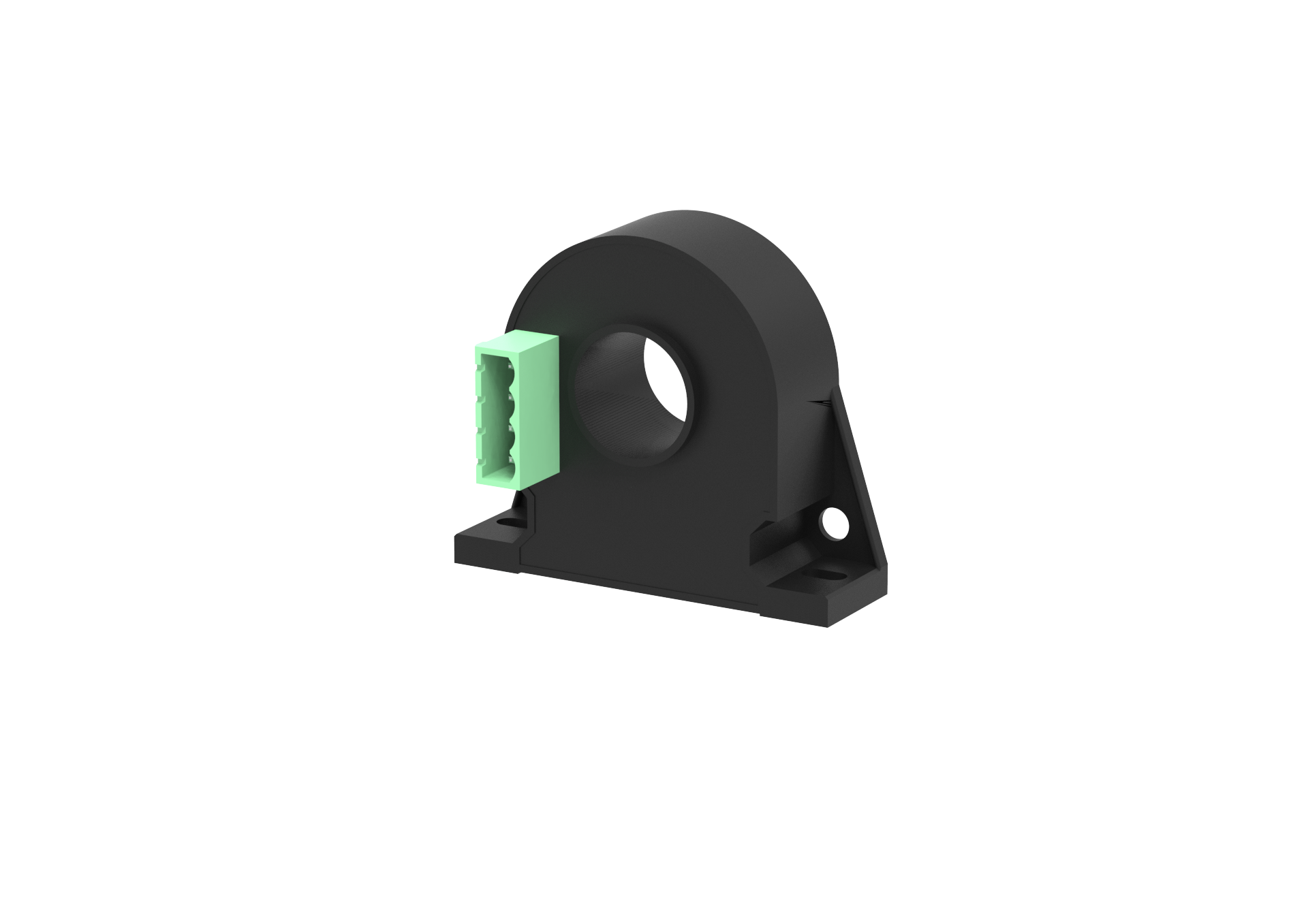

100A 200A Hall Open Loop Current Sensor Ambient Operating Temperature -40℃~85℃,Supply voltage±12V ±15V, Primary hole Φ20mm, Connection of secondary JK2EDG-5.08-4P
| Primary nominal RMS current (A) | 200 |
|---|---|
| Measuring range (A) | ±200 |
| Supply voltage (V) | ±12...15 |
| Secondary output | ±20mA |
| Accuracy (%) | ±1.0 |
| Output bandwidth | 5 |
| Operating temperature (°C) | -40~85 |
| Copper busbar (mm) | Ø20.0 |
| PCB | |
| Others | JK2EDG-5.08-4P |
