Split Core Hall Effect Current Sensor

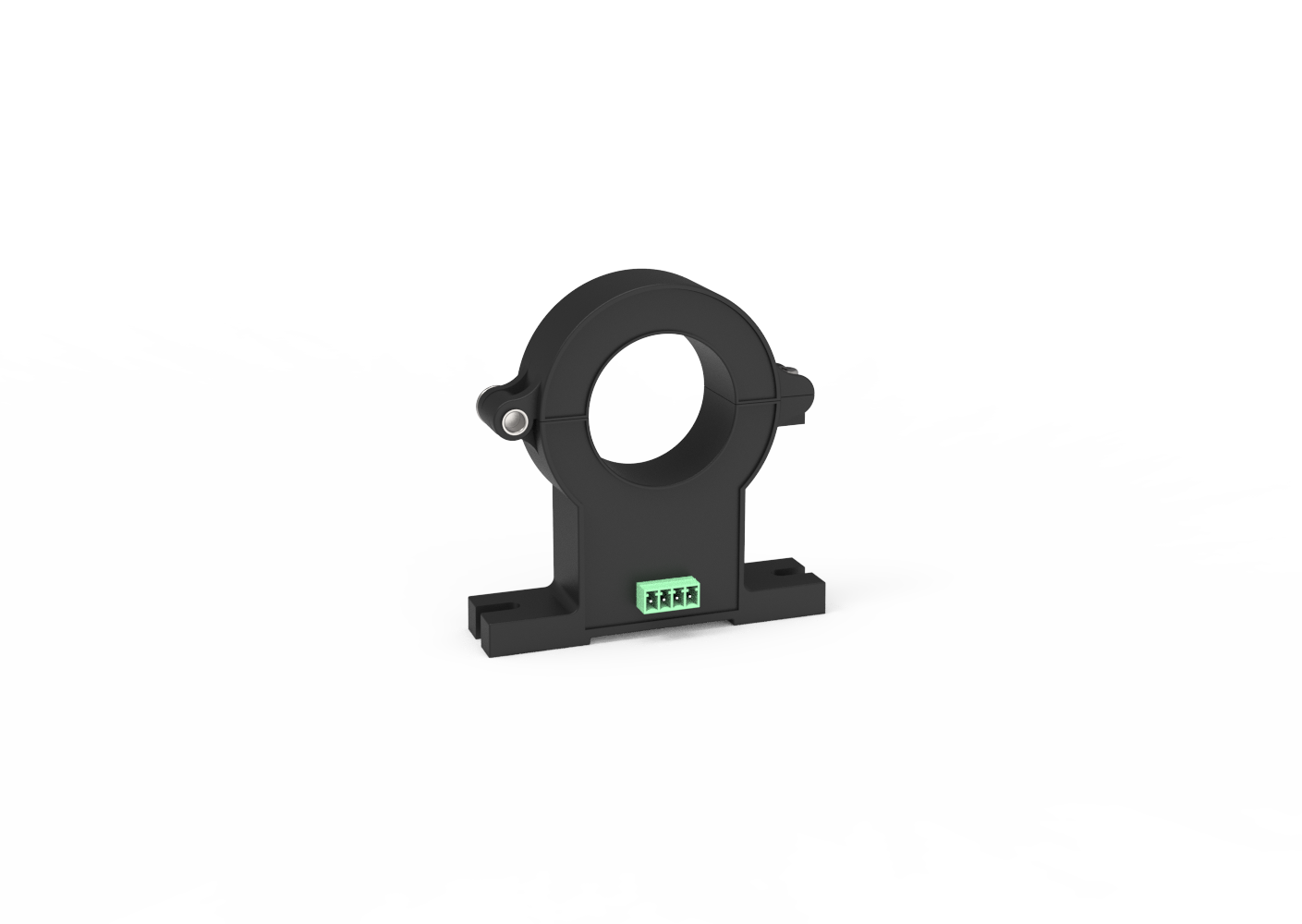

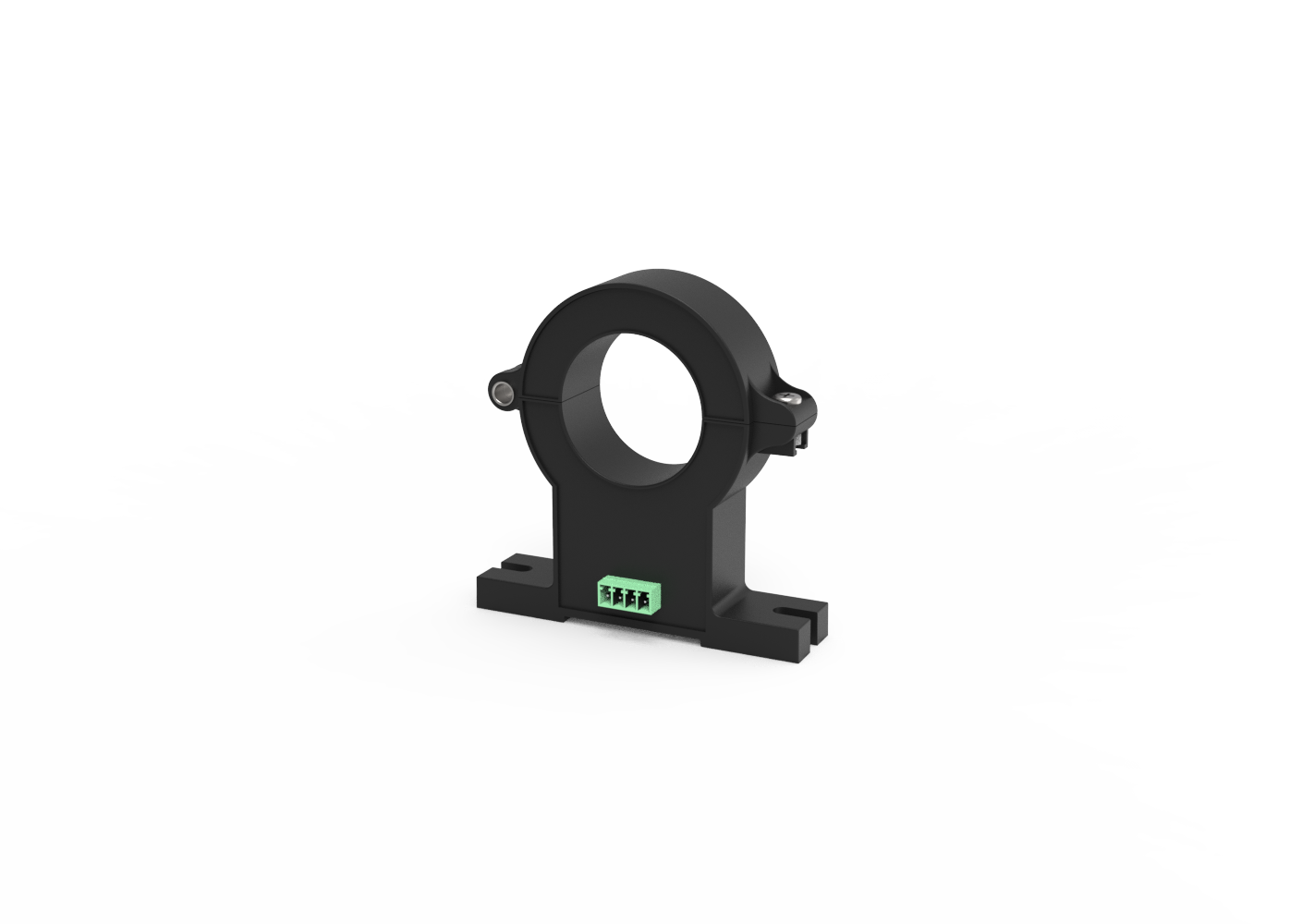

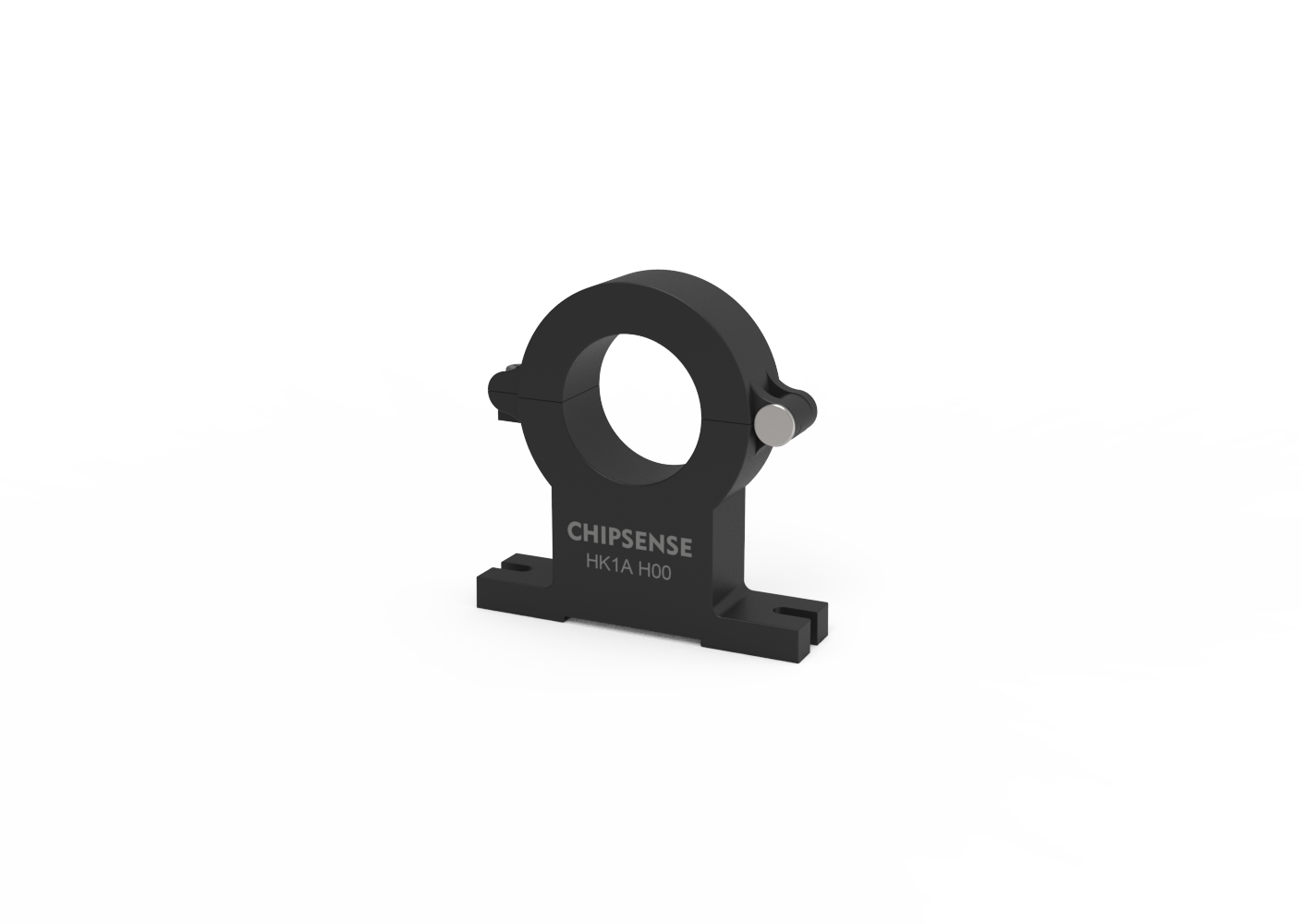

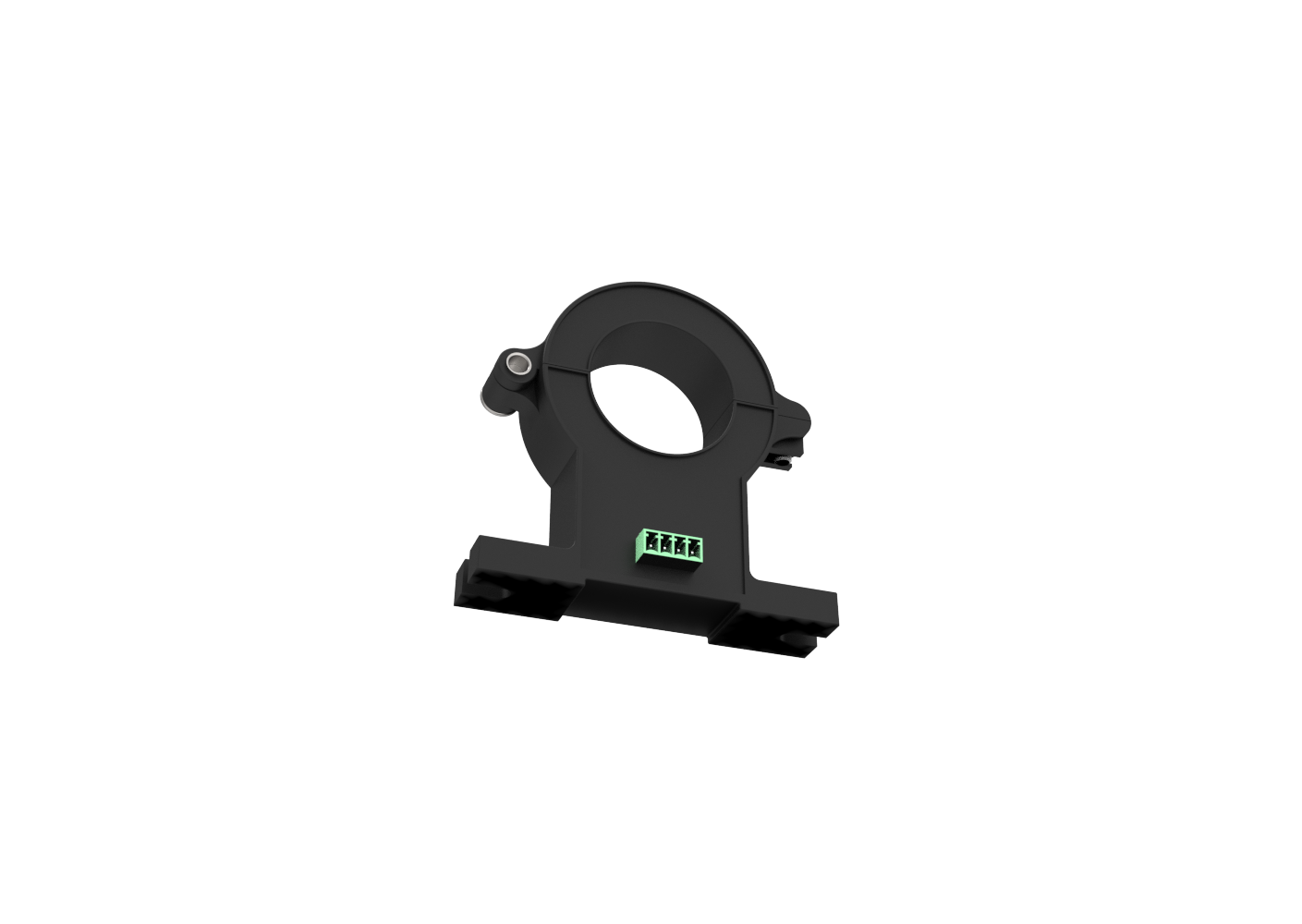

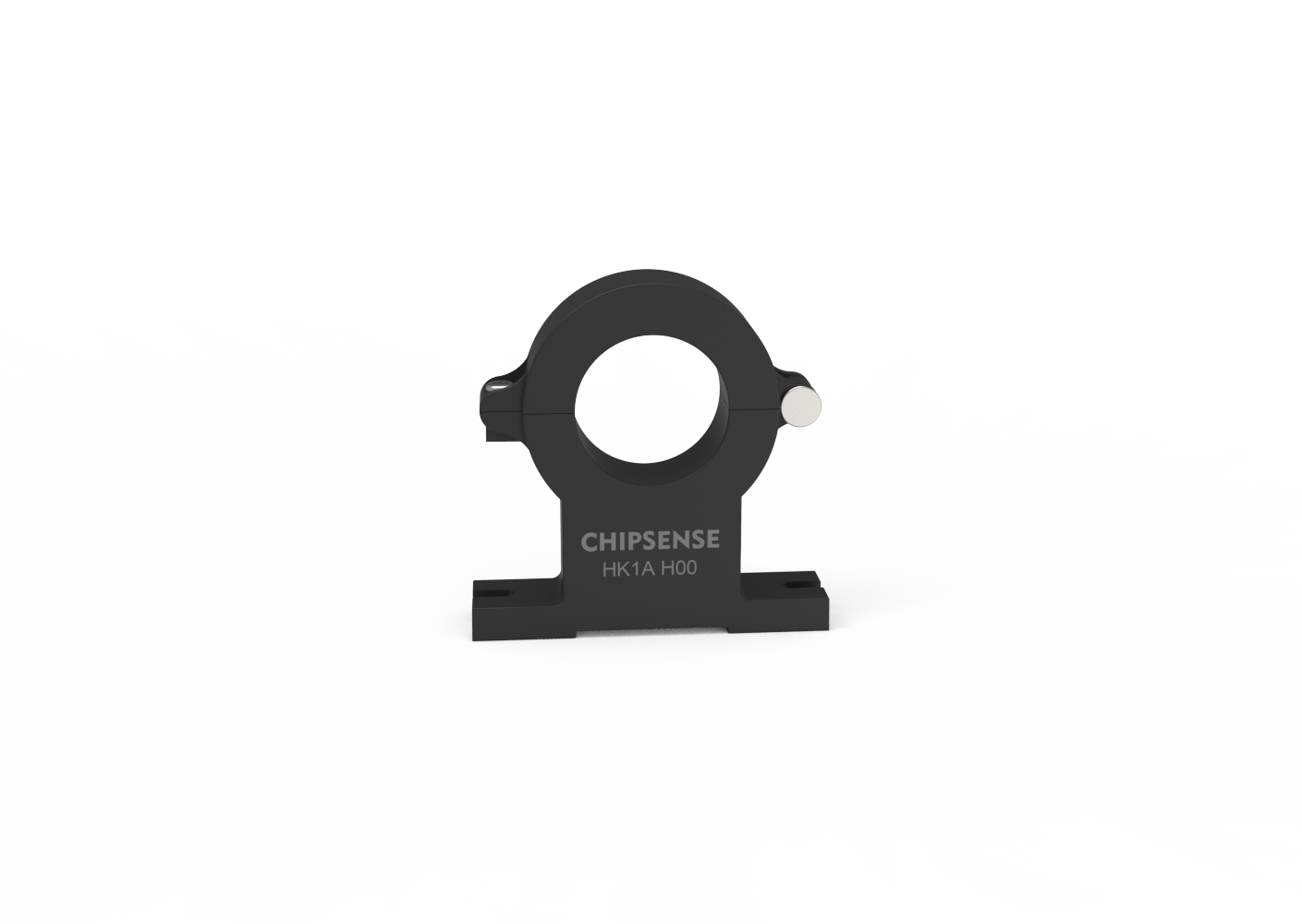

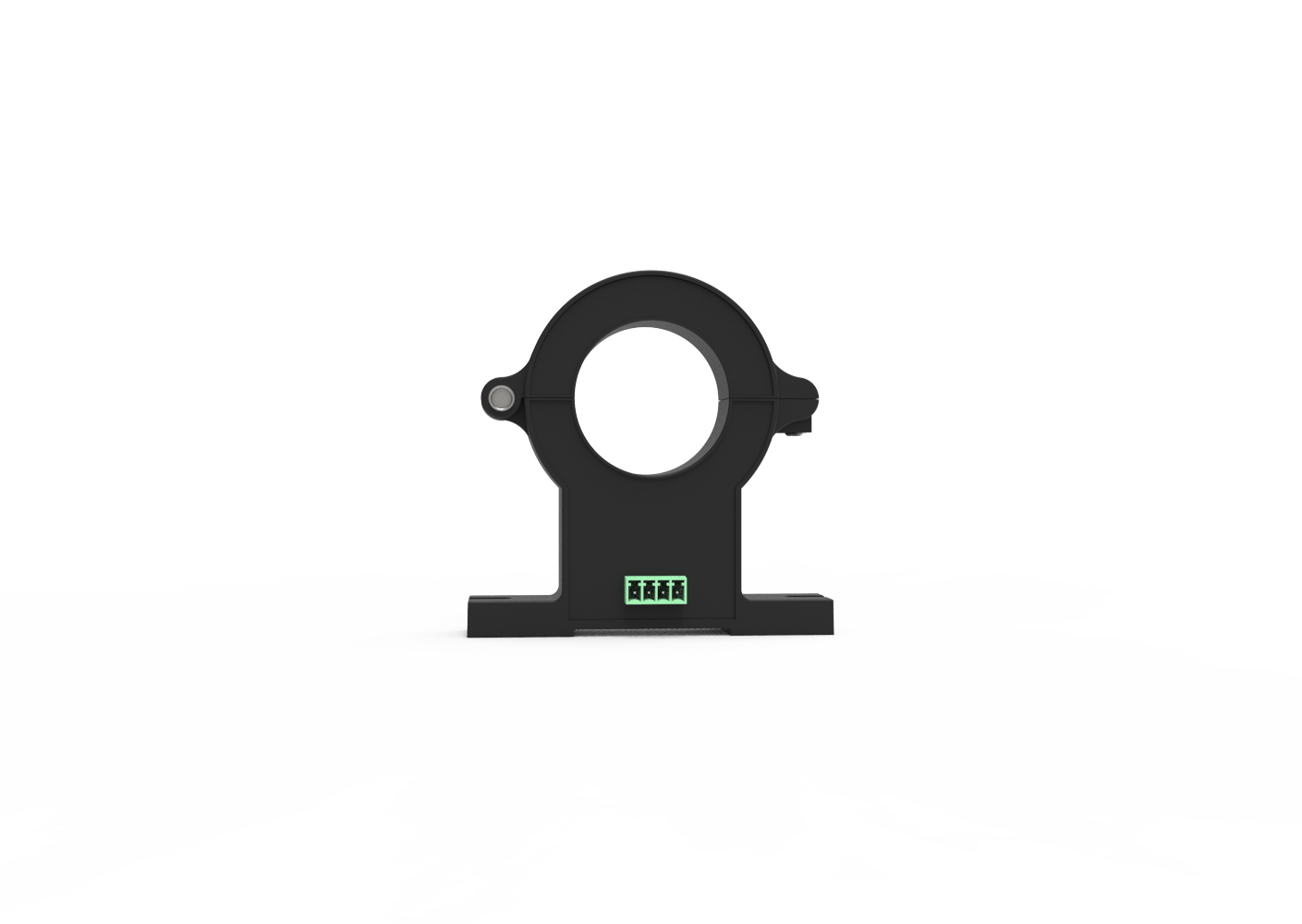

HK1A 200 H00
Product description
Open loop sensor using the Hall Effect
Galvanic separation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
No insertion loss
Small size
Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010
Related Applications
UPS
Switched Mode Power Supplies
Welding machine power supplies
DC Motor Driver
Battery Management
Static Inverter Driven by DC Motor
Wind Energy Converter
AC Variable Speed Regulation (Servo Motor)
Testing and measuring equipment
Inverter
Download manual
Specification
Primary nominal RMS current (A)
200
Measuring range (A)
±240
Supply voltage (V)
12
Secondary output
4...20mA
Accuracy (%)
±1.0
Output bandwidth
DC
Operating temperature (°C)
-25~85
Copper busbar (mm)
Ø41.3
PCB
Others
2EDGV-3.81-4P
