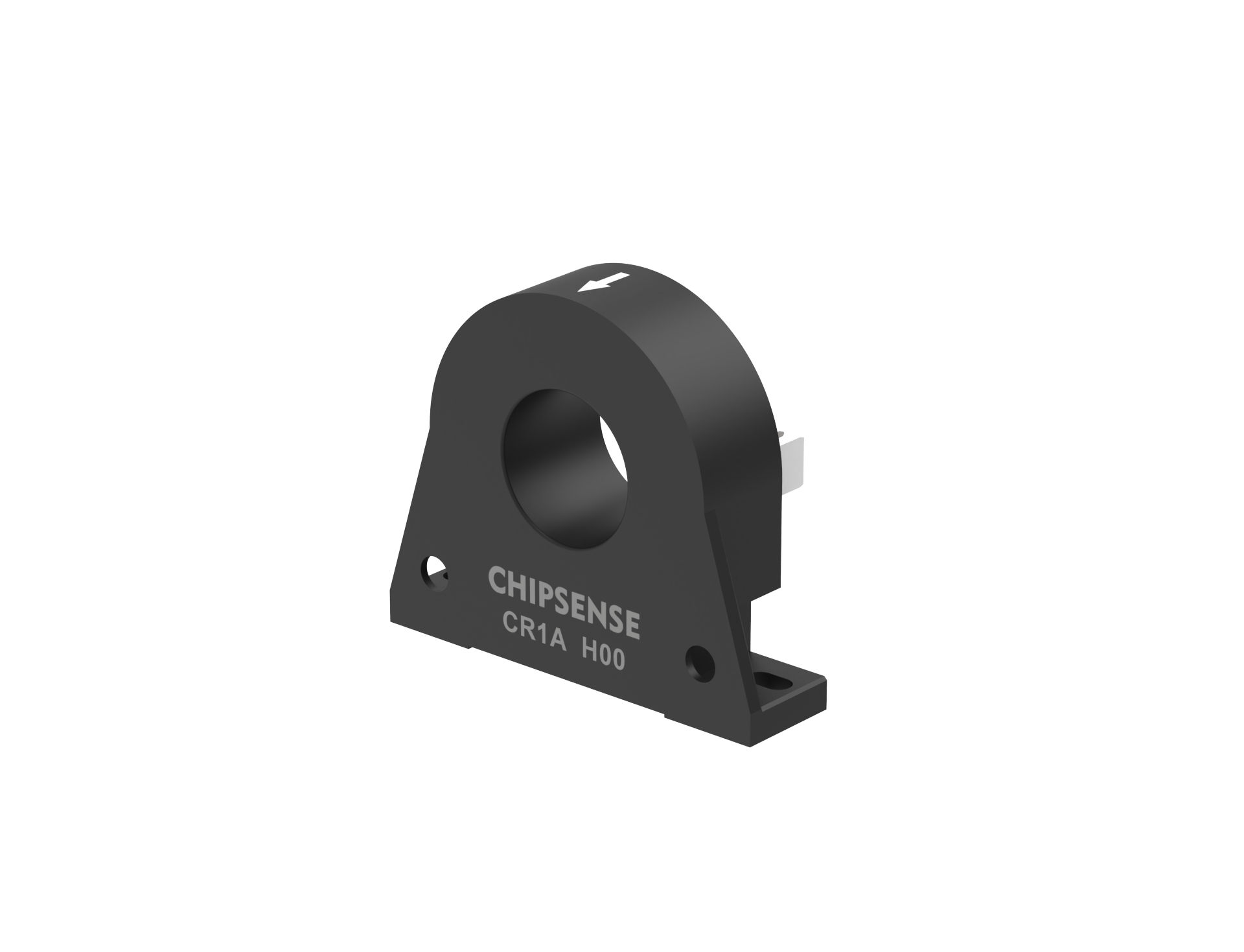

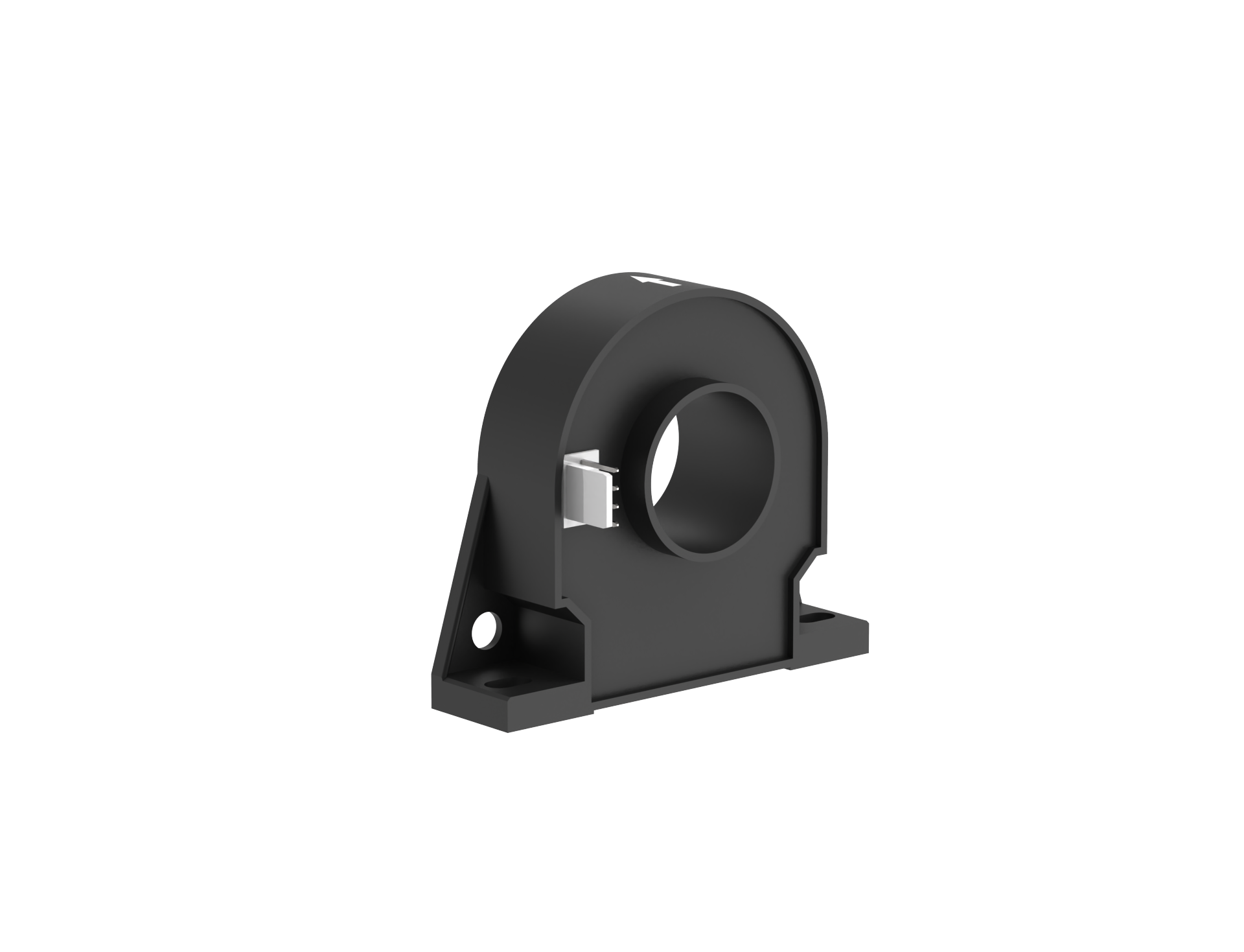

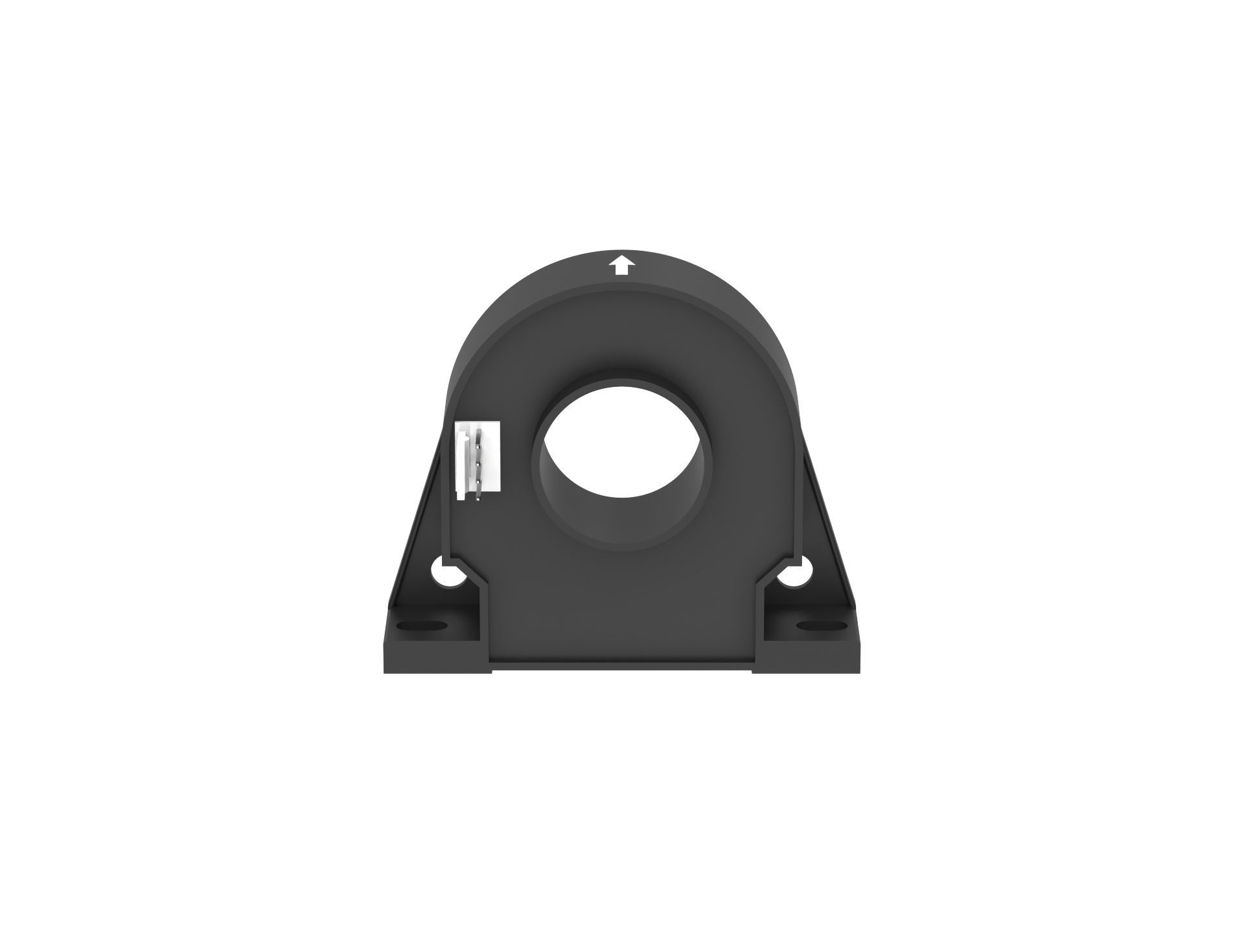

Multi-function Transducer 100A 200A 300A for Switch Mode Power Supplies

Closed loop (compensated) current sensor using the Hall Effect
Galvanic separation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
Very good linearity
High accuracy
Very low offset drift over temperature
No insertion loss
Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010
Low Voltage Converter Low Current consumption High Accuracy Wide Input Output Range 100A-300A Current Transducer Primary hole Φ23.0mm Connection of secondary JK126-500-3P

Download manual

Primary nominal RMS current (A)	300
Measuring range (A)	±500
Supply voltage (V)	±12...15
Secondary output	±150...250mA
Accuracy (%)	±0.5
Output bandwidth	200
Operating temperature (°C)	-40~85
Copper busbar (mm)	Ø23
PCB
Others	MOLEX 5045-04A
