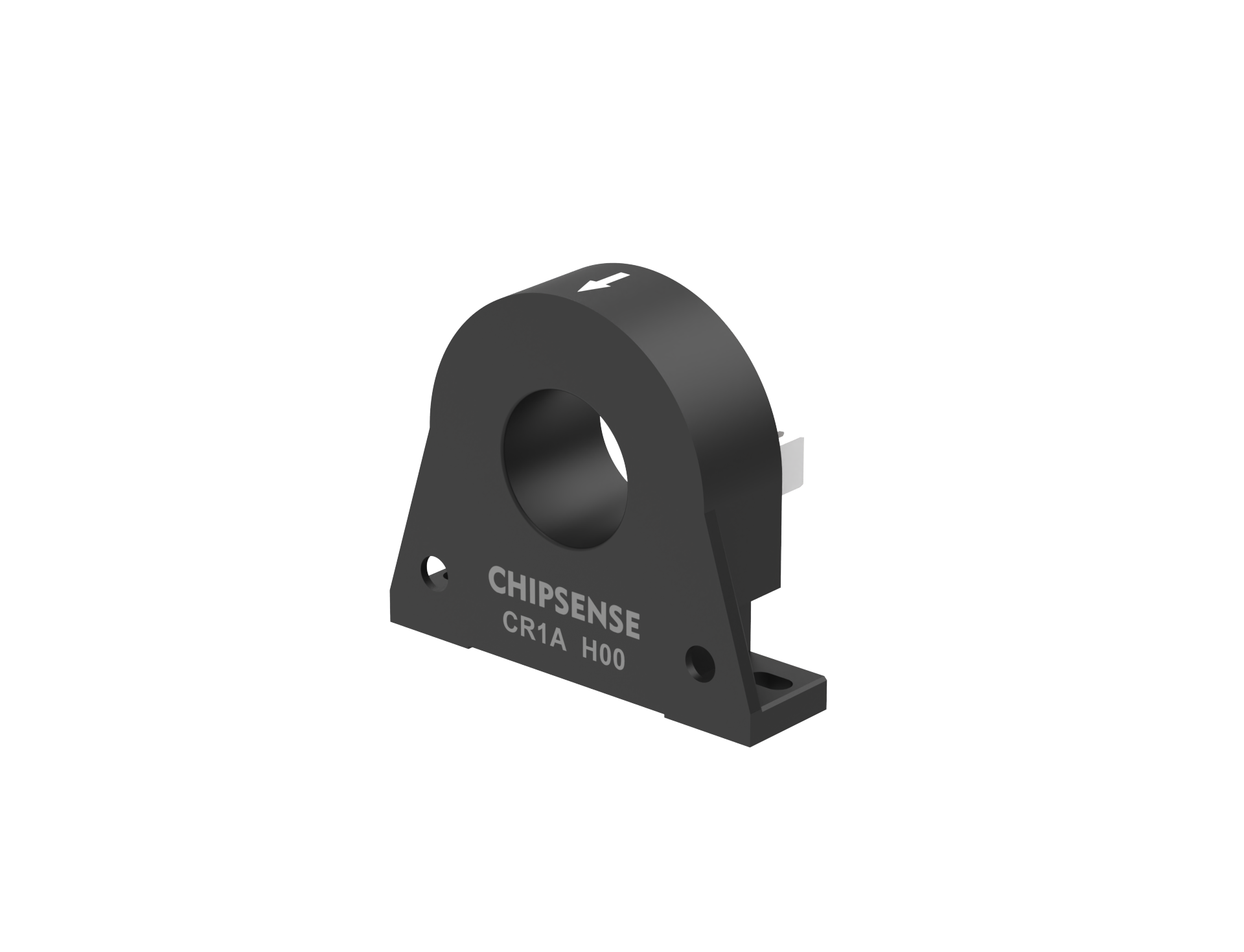

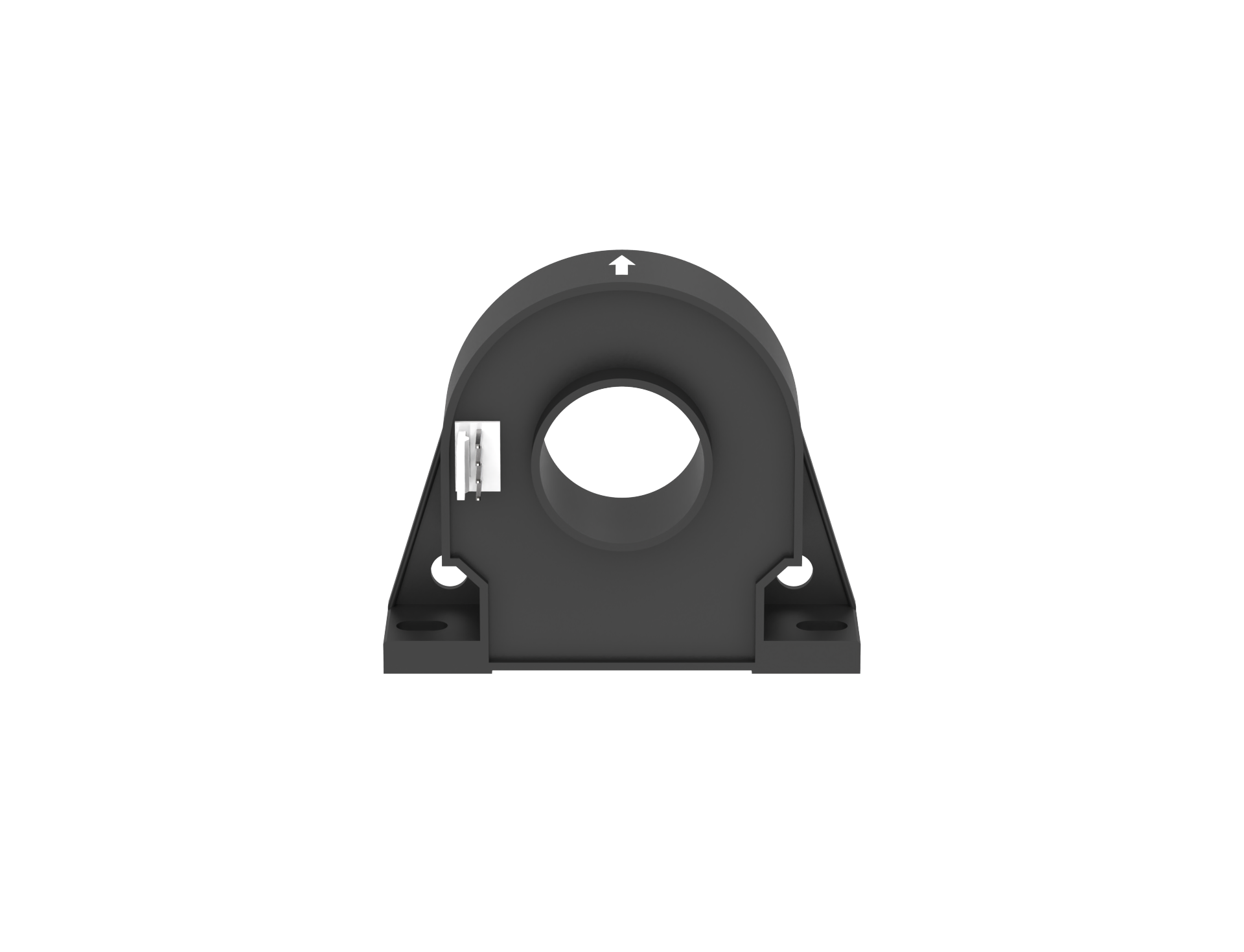

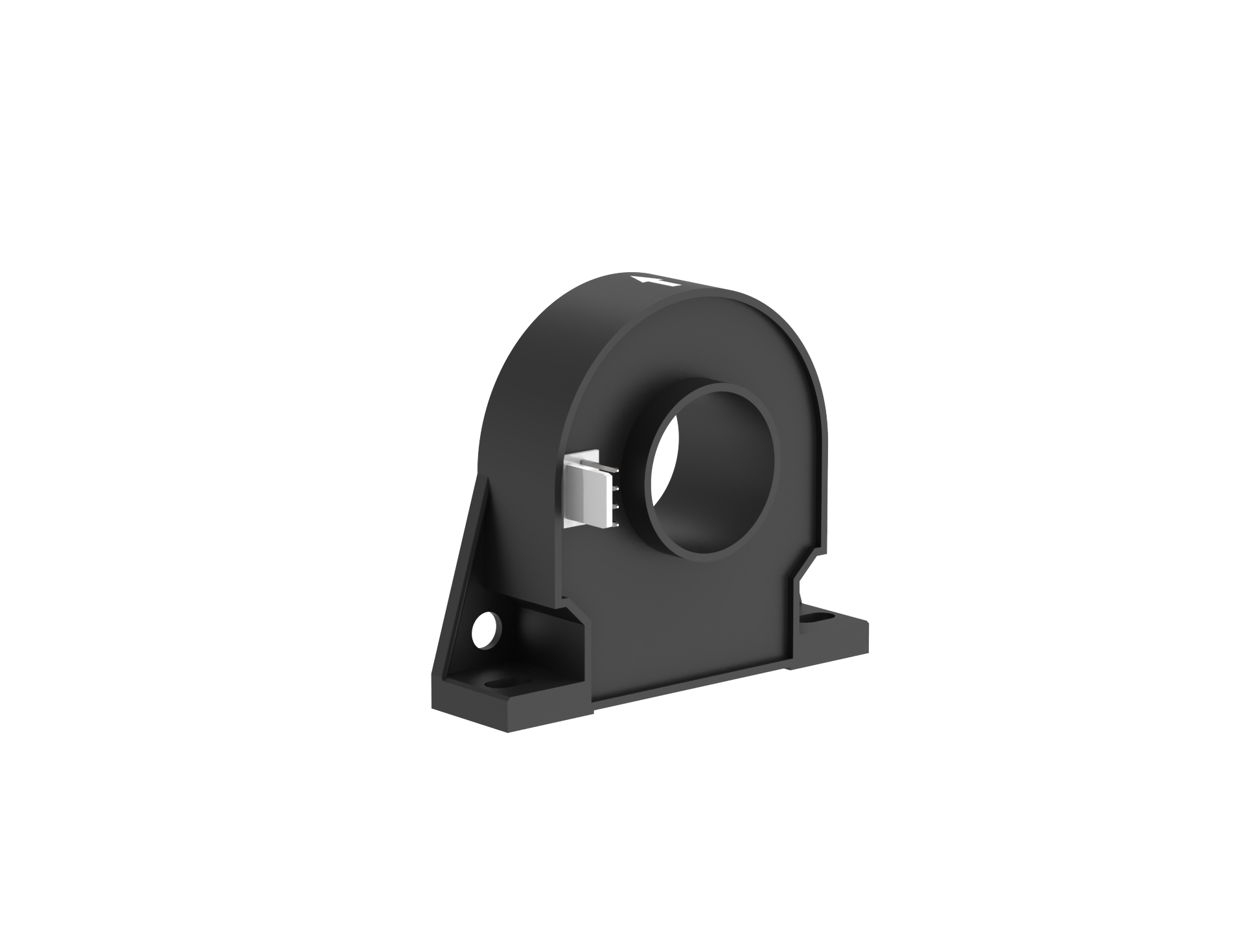

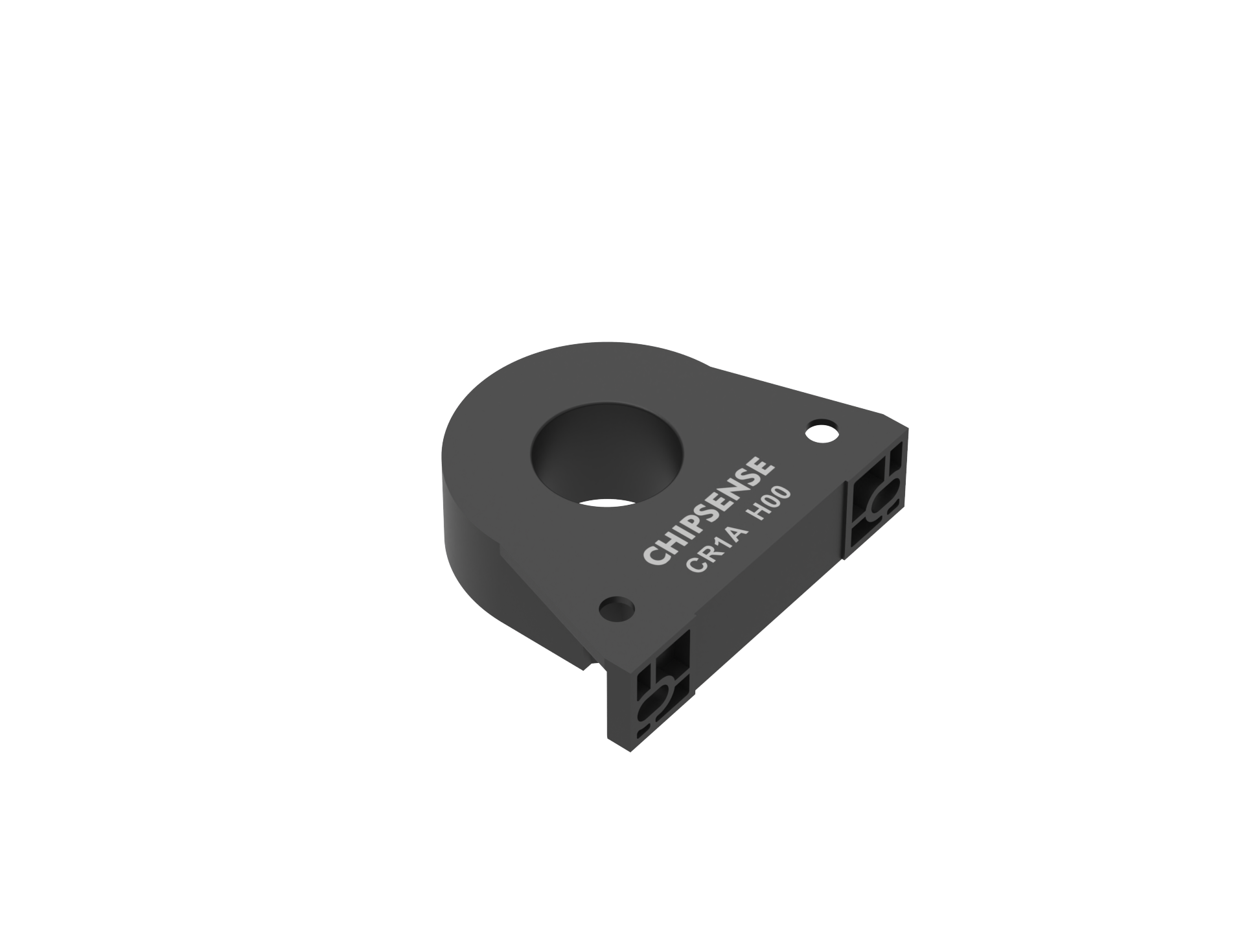

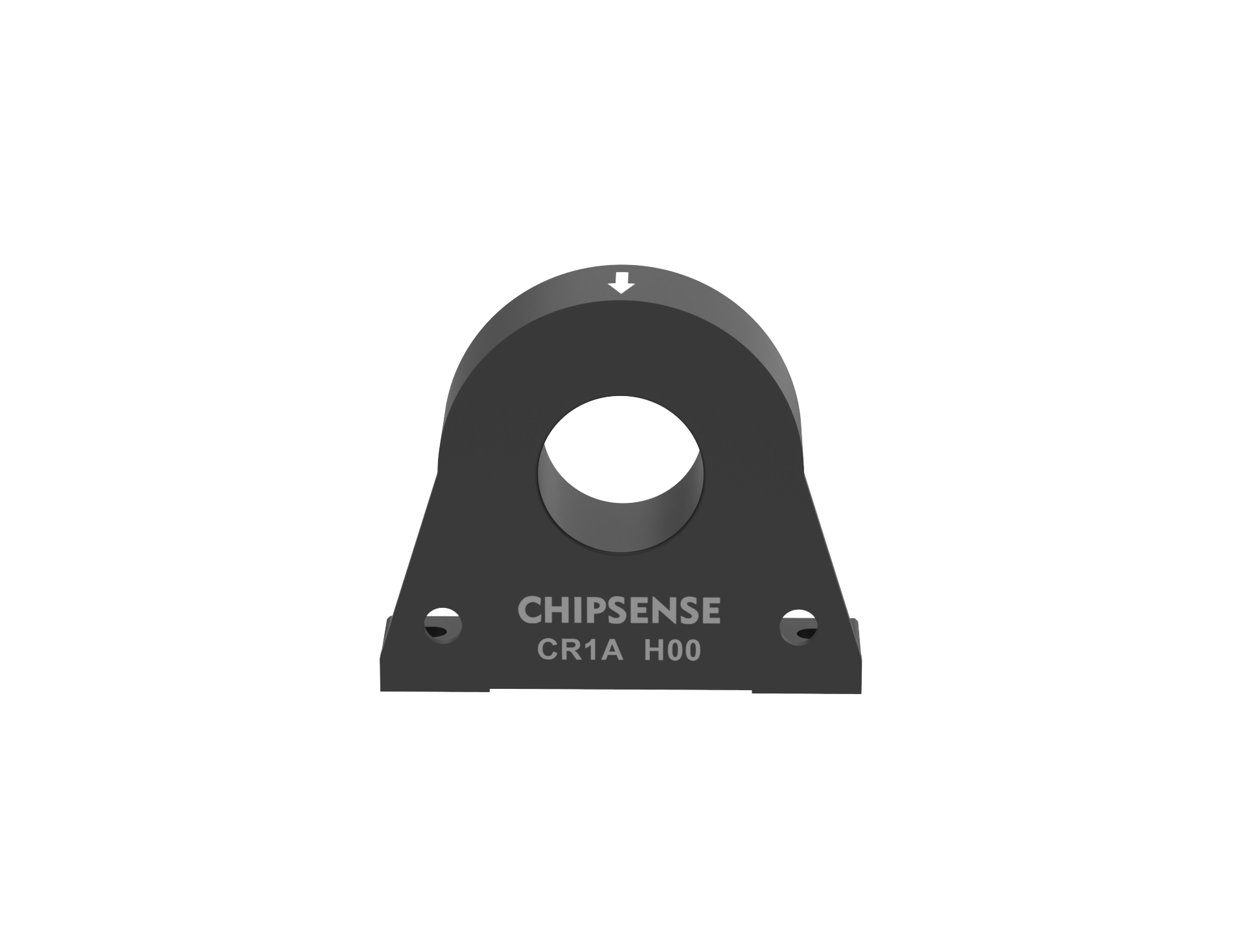

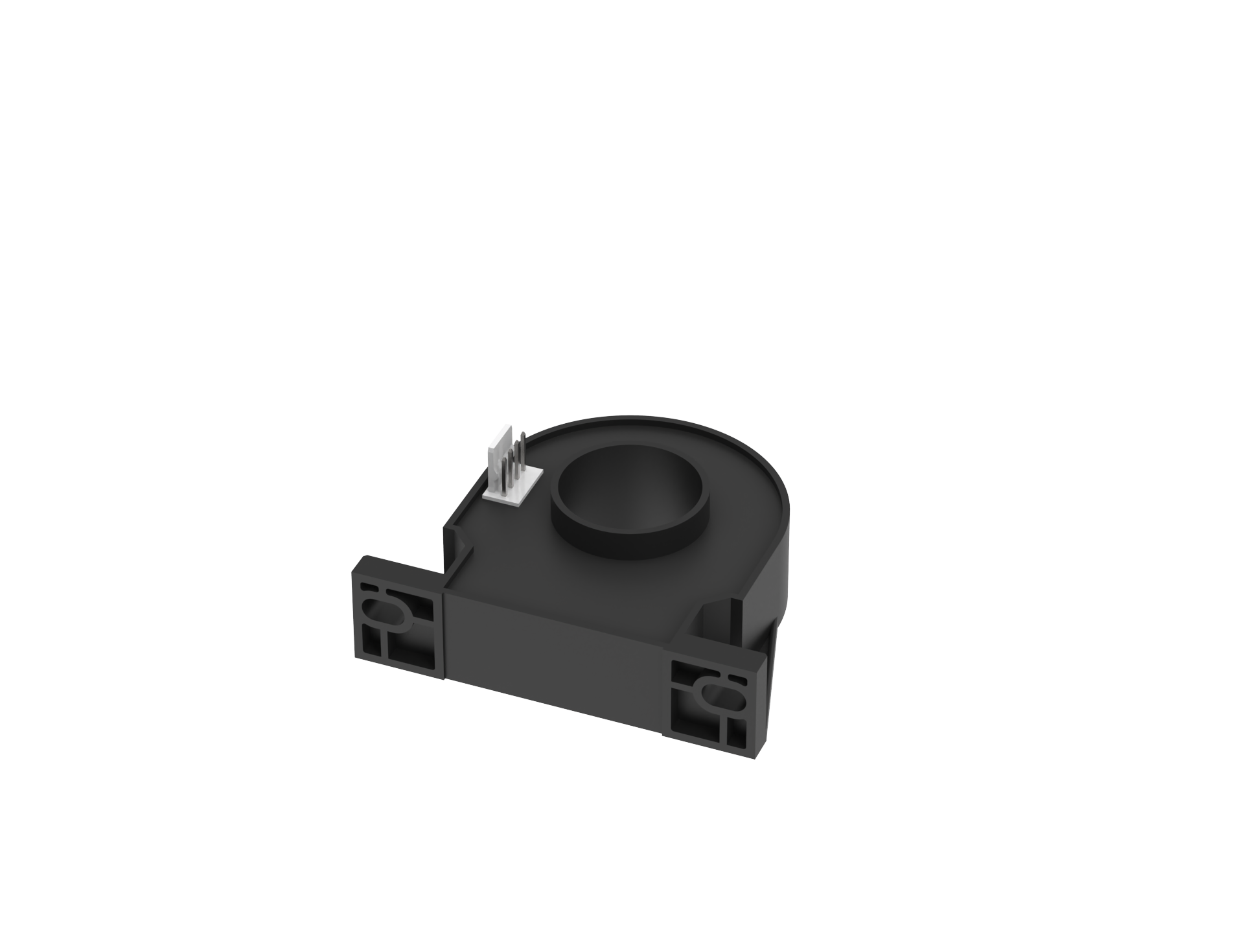

High Accurate Hall Effect AC/DC Current Sensor Output: 50 mA - 250 mA AC/DC, Power Supply: ±12 V ~ ±15 V DC, Window: Ø 23 mm, Connector: Screw
Hall effect current sensors are mainly used in industrial automation, telecommunications, public utilities, as well as in medical, aerospace, defense, consumer electronics, automotive, and railway industries for current monitoring, overcurrent fault detection, and power measurement. It features no insertion loss, low power consumption, compact package size, single/dual power supply, high precision, high sensitivity, electrical isolation and fast response time.
| Primary nominal RMS current (A) | 100 |
|---|---|
| Measuring range (A) | ±200 |
| Supply voltage (V) | ±12...15 |
| Secondary output | ±50...100mA |
| Accuracy (%) | ±0.5 |
| Output bandwidth | 200 |
| Operating temperature (°C) | -40~85 |
| Copper busbar (mm) | Ø23 |
| PCB | |
| Others | MOLEX 5045-04A |
