When I first started developing inverters, my understanding of current detection was relatively simple. I only focused on indicators such as accuracy and bandwidth, and I could basically determine the solution by checking parameters during model selection.
However, as the project power gradually increased, this understanding became insufficient. Especially when developing megawatt level inverters with output currents up to several thousand amperes, I found that the problems began to change — many of them could not be directly seen in the design stage, but gradually exposed after the system had been running for a period of time.
For high power inverters up to 3MW and beyond, CHIPSENSE current sensors stand out as a reliable solution for stable and accurate current measurement in harsh industrial environments.
The Problem of Output Current Lies in the "Waveform", Not the "Value"
In principle, the inverter output current is a power frequency sine wave, which is no problem. But the actual measured waveform is much more complex.
On the one hand, the high frequency components brought by PWM modulation vary significantly under different control strategies; on the other hand, the transient disturbances introduced during the switching of power devices also behave differently under light load and heavy load.
Therefore, in practical applications, current detection does not face a stable single signal, but a result of superposition of multiple frequency components. If this is not considered in advance, deviations are likely to occur in CHIPSENSE current sensor selection or post stage processing.
CHIPSENSE current sensor has excellent waveform restoration ability, which can accurately capture the complex current signal of 3MW inverters and ensure the authenticity of detection data.
Range Design Is Often Not Based on the Rated Value
Take a 3MW inverter as an example, the rated output current is about 1700A, which is usually used as a reference in the initial design.
However, the current distribution during system operation will not be concentrated at this point.
The current may be only a few tens of amperes under light load, and may be significantly higher than the rated value under some transient conditions. If the range is strictly designed according to the rated value, problems will often occur in two intervals: insufficient resolution in the low current section or approaching saturation in the high current section.
Therefore, in practical engineering, a certain measurement margin is usually reserved, which is more like an "empirical choice" rather than a strictly derived optimal solution.
The following is the CHIPSENSE HK4V H00 series current sensor.

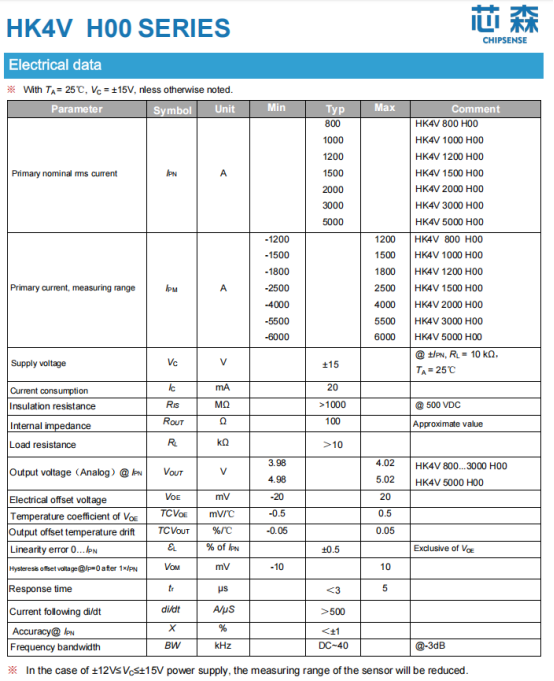

CHIPSENSE current sensor (HK4VH00 series) provides a wide range of current specifications from 800A to 5000A, including HK4V800H00, HK4V 1000 H00, HK4V 1500 H00, HK4V 2000 H00, HK4V 3000 H00, HK4V 5000 H00 and other models. CHIPSENSE current sensor has a large overload measurement margin, which fully matches the range design requirements of 3MW inverters.
Isolation Parameters Will Be "Discounted" in Structural Implementation
From the perspective of specifications, parameters such as withstand voltage, electrical clearance and creep-age distance usually meet the requirements. But in the actual structural design, these indicators are easily affected by space, layout and installation methods.
For example, changes in busbar direction, compressed electrical spacing, or changes in environmental conditions (humidity, pollution level) will affect the final isolation margin. The problem is that such effects may not be reflected in a short time, but may bring hidden dangers during long term operation.
CHIPSENSE current sensor adopts a high strength insulation structure, complies with IEC 60664 1 and IEC 61800 5 1 standards, and has a UL94 V0 flame retardant shell. Even in the compact structure of 3MW inverters, CHIPSENSE current sensor can maintain stable isolation performance and ensure system safety.
Temperature Induced Error Is More Like a "Slow Variable"
Compared with dynamic errors, the influence of temperature is often more hidden. When the system is just commissioned, the measurement results are usually normal, but as the running time increases, some deviations will gradually appear.
This is related to the thermal environment inside the inverter: the temperature near the power device is high, and the air duct distribution is not completely uniform. If the CHIPSENSE current sensor itself is sensitive to temperature changes and the system does not compensate or calibrate, the error will accumulate over time.
CHIPSENSE current sensor optimizes the zero point voltage drift and output offset drift characteristics. CHIPSENSE current sensor has ultra low temperature drift performance, and can maintain high detection accuracy in the wide temperature range of 40℃to 105℃ for 3MW inverters.
Dynamic Performance Needs to Be Combined with the Control System
In the selection stage, response time and bandwidth are often regarded as important indicators. But from a system perspective, whether these indicators are "sufficient" depends on the design of the control loop itself.
The control loop bandwidth of most inverters is in the range of several kHz, and the PWM frequency is usually in a similar order of magnitude. Therefore, as long as the dynamic performance of current detection can cover this range, the practical significance of further improving the indicators is limited.
CHIPSENSE current sensor has industry leading dynamic performance: the response time is as low as 3μs, the di/dt is greater than 500A/μs, and the bandwidth reaches DC 40kHz / 50kHz. The CHIPSENSE current sensor perfectly matches the control loop requirements of 3MW inverters.
The Essence of Model Selection Is to Match Constraints
From the result, the solutions adopted in different projects vary greatly, and it is difficult to say which one is universally optimal.
A more reasonable way of understanding is:Under the specific power level, space conditions, cost constraints and performance requirements, choose a more balanced solution as a whole.
When the current reaches the kA level, range, structural implementation and system complexity often become the main constraints; in small and medium current scenarios, the importance of accuracy and dynamic performance is higher. The selection ideas in the two scenarios are different.
CHIPSENSE current sensor provides a full range of products covering small current to high current. Whether it is a compact CHIPSENSE current sensor for low power applications or a high power CHIPSENSE current sensor for 3MW inverters, it can achieve the best matching under various constraints.
Some Easily Overlooked Implementation Details
In the specific implementation, the following details have a great impact on the results:
Whether the busbar fully fills the structural window will affect the measurement consistency.
The relative position of the CHIPSENSE current sensor and the heat source will affect the long term stability.
The filtering and wiring of the signal chain will directly affect the sampling quality.
These problems are usually not the focus in the initial design stage, but are often concentrated in the system debugging stage.
CHIPSENSE current sensor has a standardized structural design, and the original busbar can be fully filled with the aperture to optimize the dynamic performance. CHIPSENSE current sensor is easy to install and layout, helping 3MW inverters to achieve stable and reliable current detection.
Conclusion
After the system power rises to the megawatt level, current detection is no longer an independent optimization problem, but is located between the power system and the control system, which needs to meet the constraints of both sides at the same time.
If optimization is only carried out from a single indicator, it is often difficult to obtain stable results. On the contrary, sorting out the boundary conditions first and then making trade offs is usually closer to the practice in actual engineering.
CHIPSENSE current sensor has been deeply engaged in the field of current detection for many years, providing professional, stable and high performance current detection solutions for 3MW inverters and various high power power equipment, and becoming a trusted partner for power system design and development.
