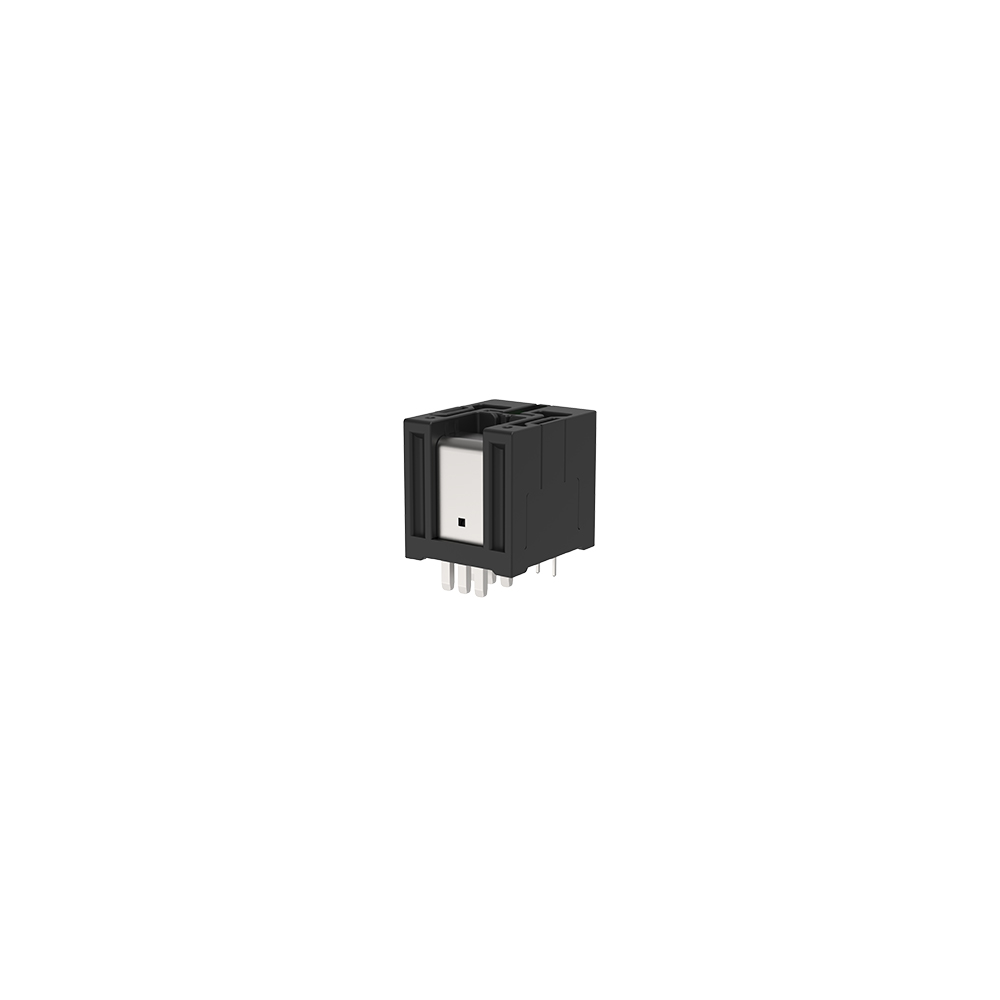

A Series Open loop Current Sensor - AN5V 60 PB00 - Image 1

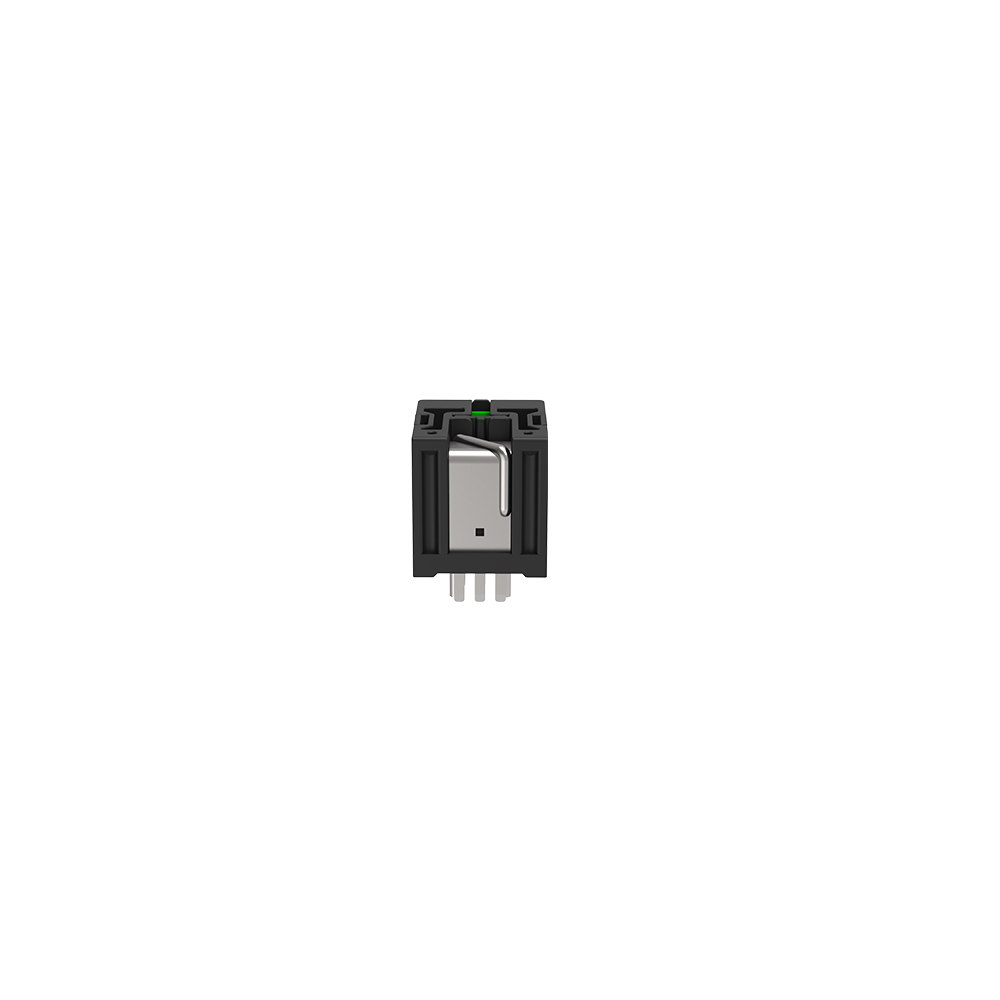

A Series Open loop Current Sensor - AN5V 60 PB00 - Image 2

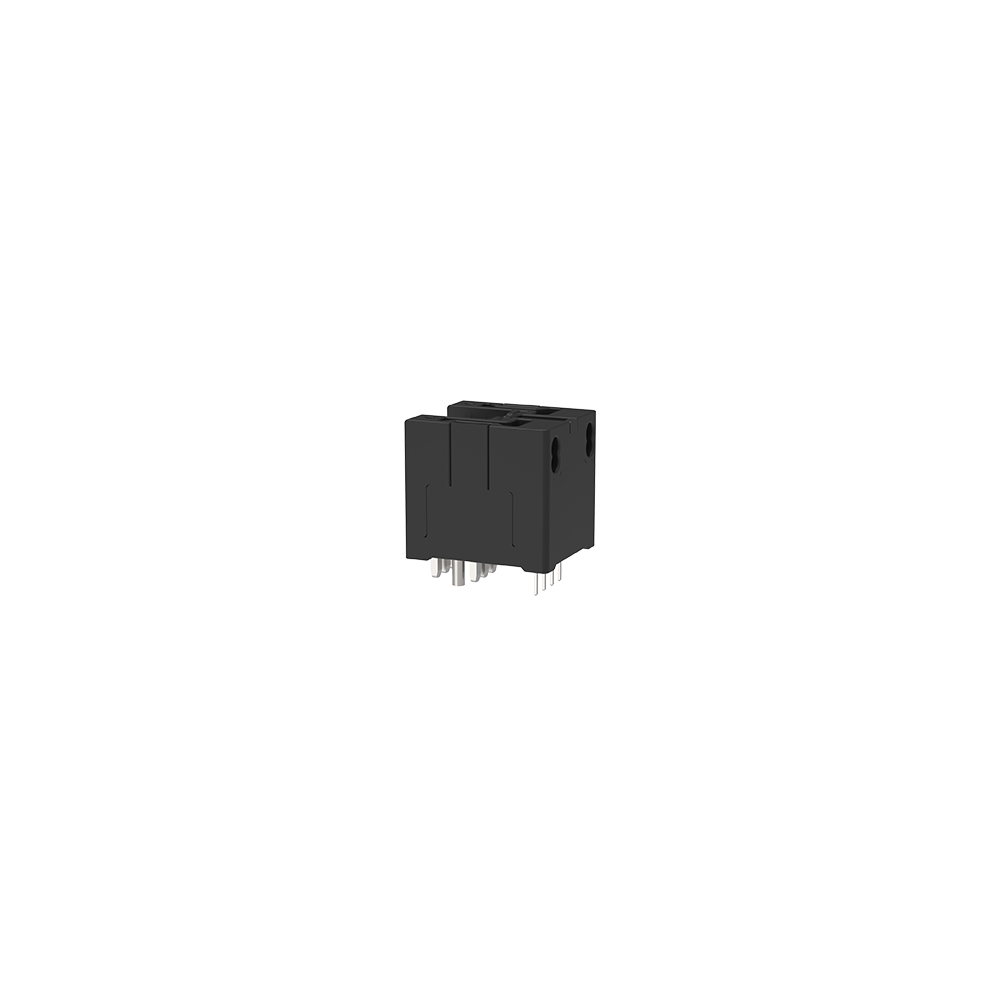

A Series Open loop Current Sensor - AN5V 60 PB00 - Image 3

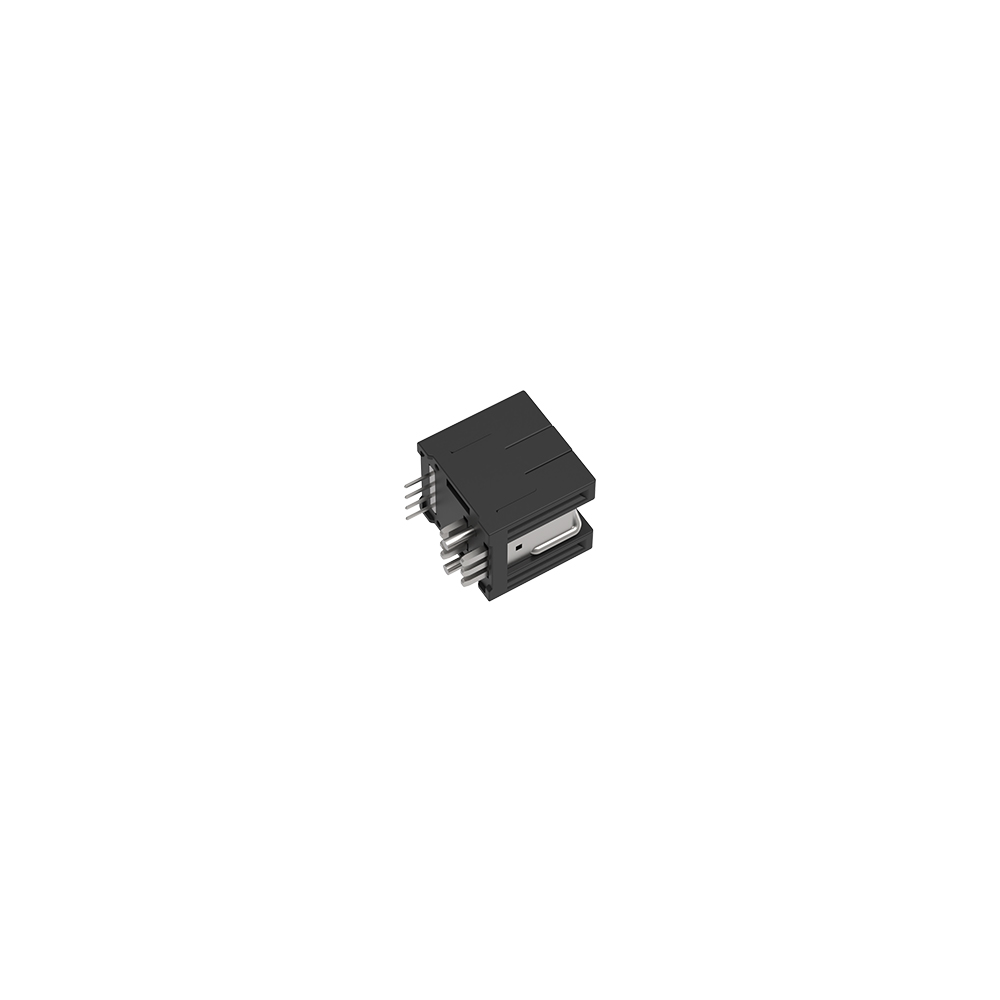

A Series Open loop Current Sensor - AN5V 60 PB00 - Image 4

ASIC smart current sensor

  • 60A open loop current sensor using the Hall Effect
  • Supply voltage ±12...±15V
  • Galvanic insulation between primary and secondary
  • Insulating plastic case recognized according to UL 94-V0
  • No insertion loss
  • Small size
  • Standards:
  • IEC 60664-1:2020
  • IEC 61800-5-1:2022
  • IEC 62109-1:2010

Related Applications

Download manual

Specification

Primary nominal RMS current (A) 60
Measuring range (A) ±180
Supply voltage (V) ±12...15
Secondary output ±4V
Accuracy (%) ±1
Output bandwidth 50
Operating temperature (°C) -40~85
Copper busbar (mm) NA
PCB +
Others
